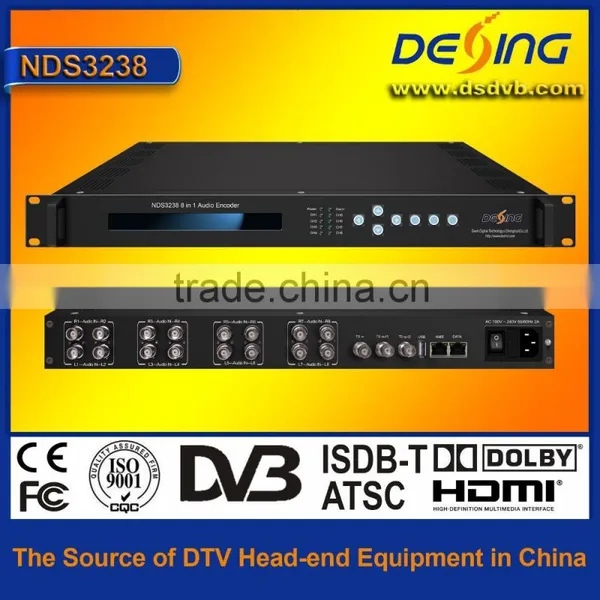

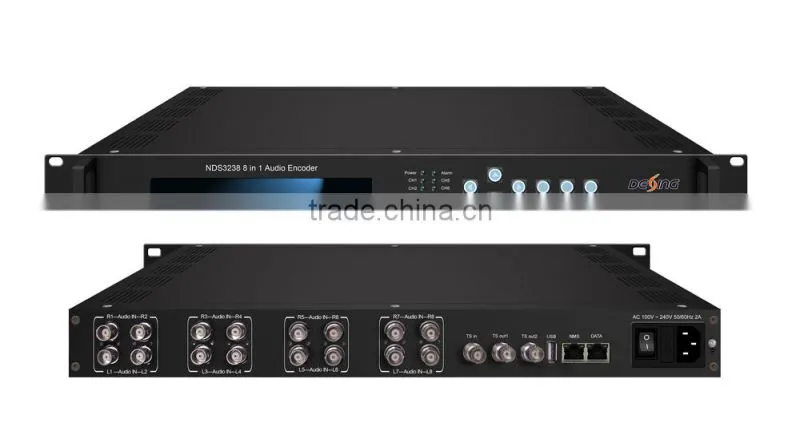

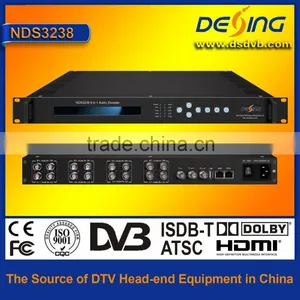

NDS3238 8 in 1 Audio Encoder
Product Introduction
DEXIN NDS3238 is a professional audio encoder with powerful functionality. It has 8 independent channels of unbalanced audio input supporting MPEG 1 Layer II compression. Furthermore, it supports audio gain control in a wide range. The encoded audio will finally output through both ASI and DATA ports for further transmission.
.
Key Features
l 8 pairs of unbalanced stereo / 16 mono audio inputs
l MPEG1 Layer 2 audio encoding
l Support audio gain control
l Support 2 ASI mirrored output
l Supports MPTS IP output over UDP
l LCD / keyboard and web-based NMS operation
l Update device through NMS port

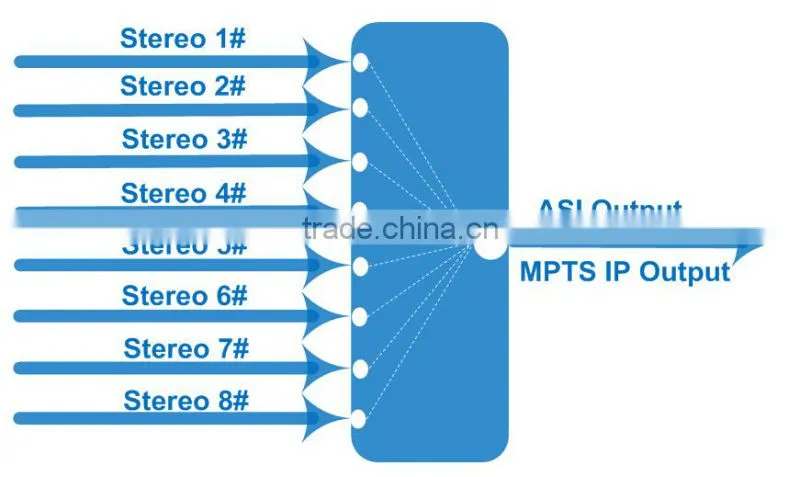

Principle Chart
Technical Specifications
Audio Encode |
Interface |
8 pairs of unbalanced stereo / 16 mono audio inputs, BNC interface |
Encoding Format |
MPEG1 Layer 2 |
|
Audio Gain |
-20 ~ +6 dB |
|
Sampling Rate |
48KHz |
|
Bit-rate |
32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel) |
|
Stream output |
2*ASI output, BNC interface |
|
MPTS over UDP, 1000M Base-T Ethernet interface (unicast/multicast) | ||
System |
LCD/keyboard operating, web-based NMS manage |
|
Language: Chinese | ||
Ethernet software & hardware upgrade | ||
Miscellaneous |
Dimension |
482mm×455mm×44mm (W× L× H) |
Approx weight |
4kg |
|
Temperature |
0~45℃(work), -20~80℃(Storage) |
|
Power |
AC 100V-220V±10%, 50/60Hz |
|
Consumption |
25W |
|
