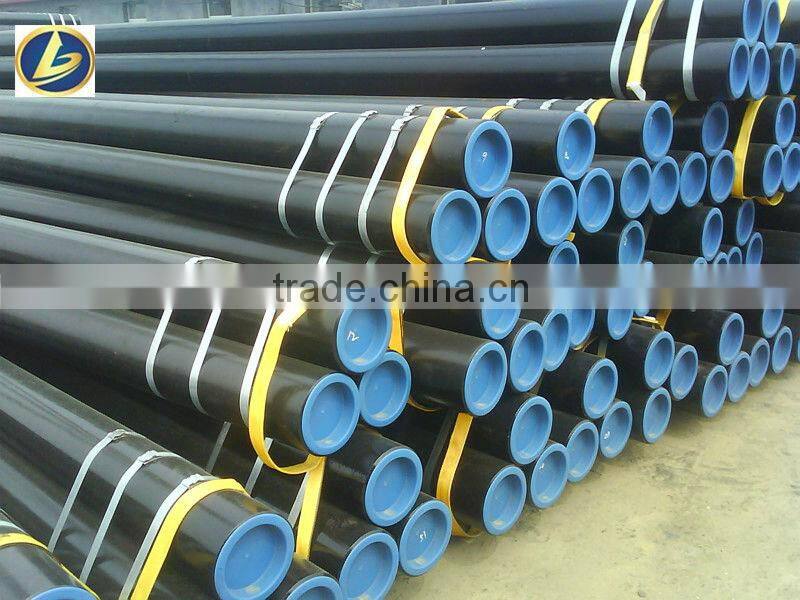

Supply Different Welded Steel Pipe

US$ 400 - 800 MOQ: 5 Metric Tons

Key Specifications

Standard:

Grade:

Thickness:

1, 65

Shaoxing Shangyu Baomingjia Metal Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Thickness 1, 65

Section Shape Round

Outer Diameter 10 - 830 mm

Place of Origin Zhejiang, China

Secondary Or Not Non-secondary

Application Oil Pipe

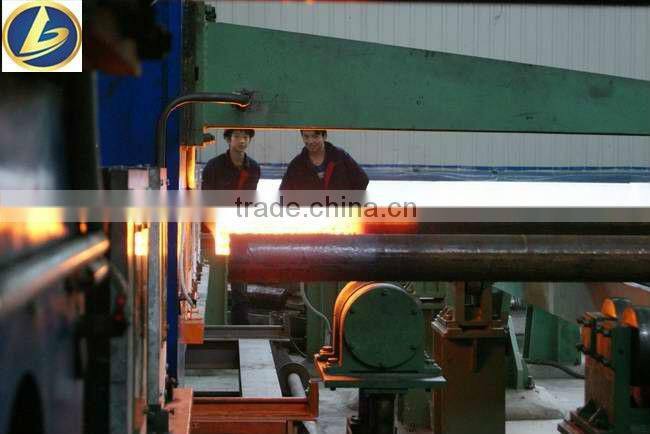

Technique ERW

Certification CE

Surface Treatment Other, According to customers' requirement

Special Pipe API Pipe

Alloy Or Not Non-alloy

Specifications

steel pipe
1. good quality
2. best and competitive price
3. professional services
4. fast delivery

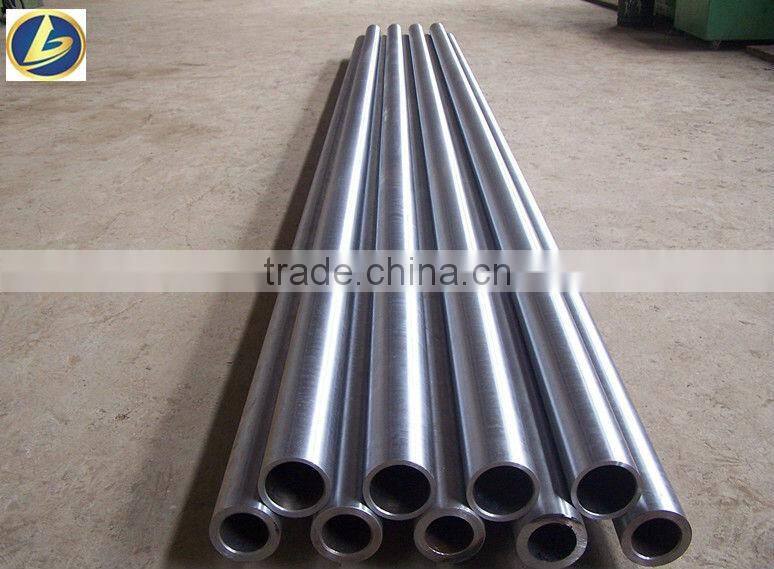

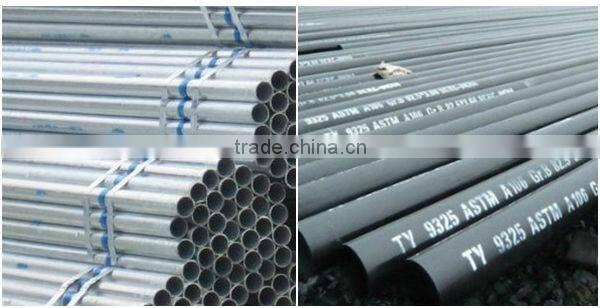

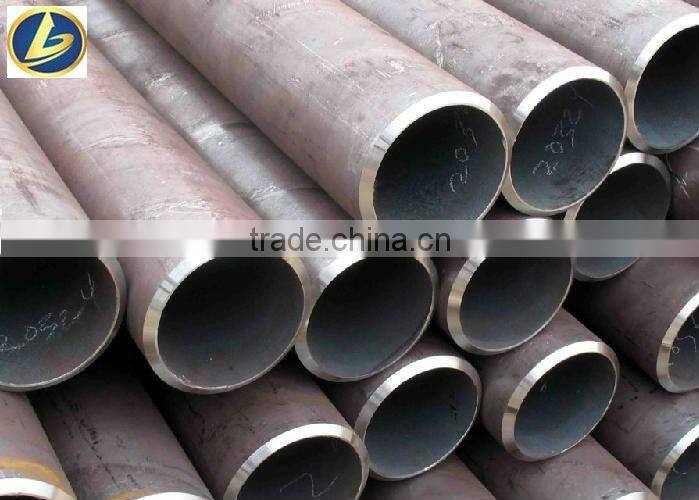

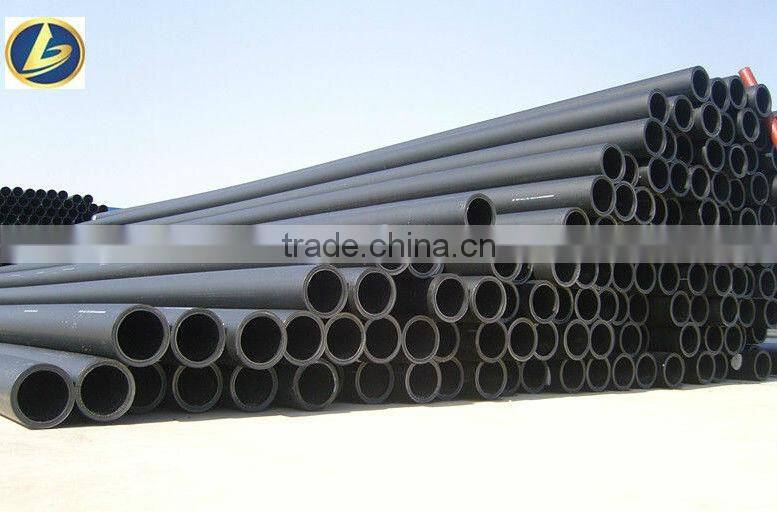

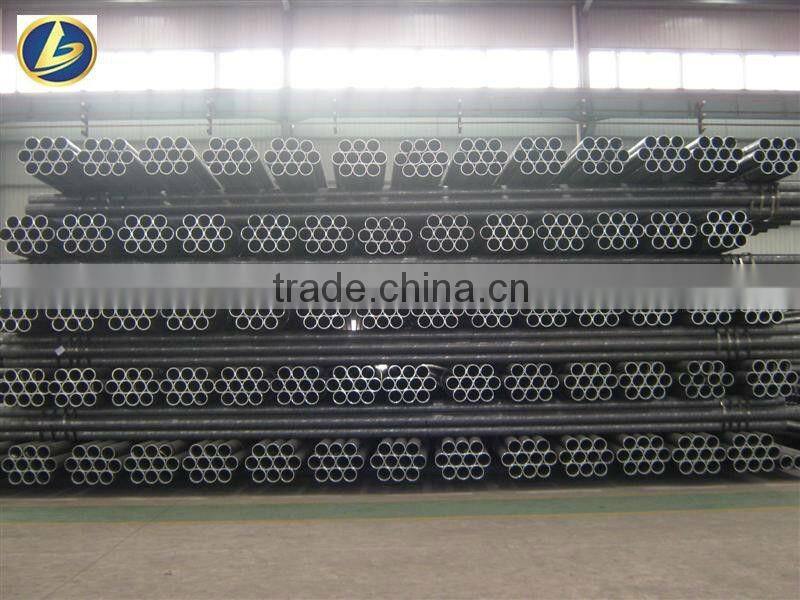

Welded Steel Pipe
1. good quality
2. best and competitive price
3. professional services
4. fast delivery

Specifications:

specification		OD mm	Thickness mm	Min thickness mm	Welded pipe (6 m length )		Galvanized steel pipe (6 meters length)
					Metres kg	root kg	Metres kg	Root kg
nominal bore	inch
DN15	1/2	21.3	2.8	2.45	1.28	7.68	1.357	8.14
DN20	3/4	26.9	2.8	2.45	1.66	9.96	1.76	10.56
DN25	1	33.7	3.2	2.8	2.41	14.46	2.554	15.32
DN32	1.25	42.4	3.5	3.06	3.36	20.16	3.56	21.36
DN40	1.5	48.3	3.5	3.06	3.87	23.22	4.10	24.60
DN50	2	60.3	3.8	3.325	5.29	31.74	5.607	33.64
DN65	2.5	76.1	4.0	3.5	7.11	42.66	7.536	45.21
DN80	3	88.9	4.0		8.38	50.28	8.88	53.28
DN100	4	114.3	4.0		10.88	65.28	11.53	69.18
DN125	5	140	4.5		15.04	90.24	15.942	98.65
DN150	6	168.3	4.5		18.18	109.08	19.27	115.62

Item	Details
standard	BS 1387, BS EN10217, JIS G3452-2004, JIS G3101, JIS G3441, JIS G3466, GB 3087-1999, DIN 2448, DIN 2444, DIN EN 10025, ASTM A53-2007, ASTM A789-2001, ANSI A213-2001, ASTM A252-1998, API 5L
grade	20#, 45#, A106(B,C), A210, A214, St37, St52, St42, St37-2, St42-2, St52.4, Q235, Q345, Q195, Q215
Outer Diameter	10mm-----830mm
Wall Thickness	1mm----65mm
Length	1000-12000mm

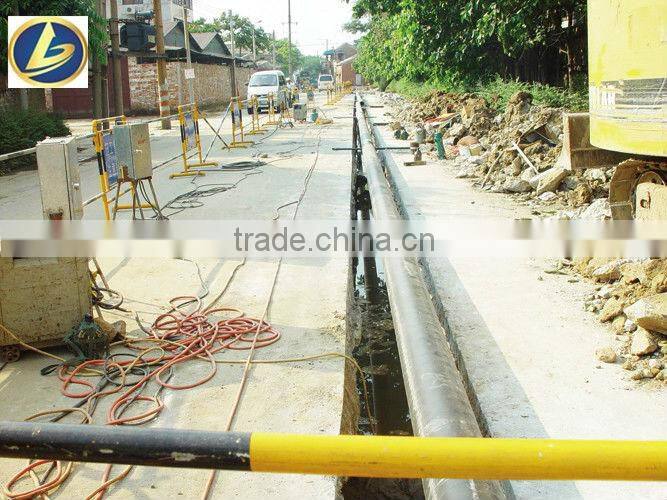

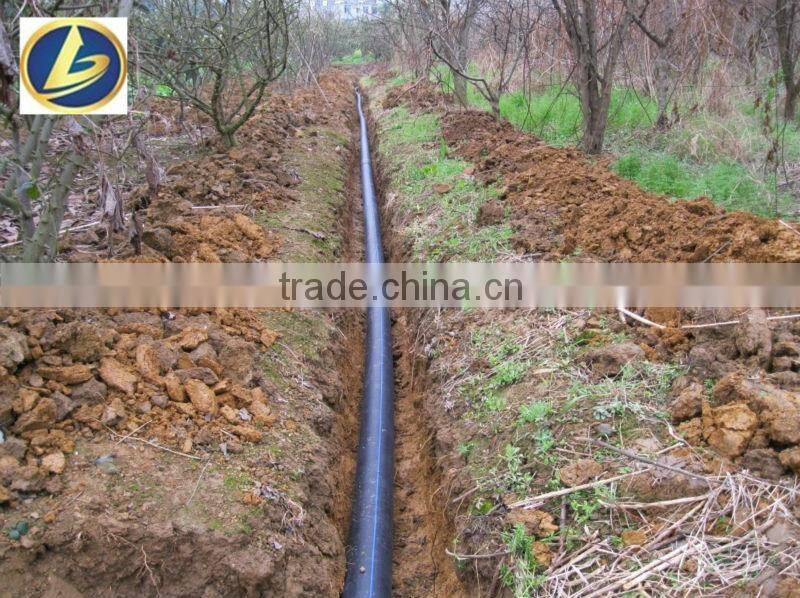

application	public waterworks
Ends Processing	Bevelled or Plain End
Surface Process	mill, black, polish
payment L/C D/P D/A T/T
Package	Standard export packing or following customer's demand
Main Market	Middle East, South and North America, Europe,Asia,Oceania
