| 2pc ball valve product description: |
| 1.SIZE: DN15-DN100 (1/4 to 4 inch) |
| 2.Material: SS304,SS316,WCB |
| 3.Pressure: 1.6-6.4Mpa |
| 4.Connect end: SCREWED END / BUTT WELD END / SOCKET WELD END |
| 5. Thread ends: BSP / DIN 2999 / DIN 259 / NPT / ISO228 |
| 6.sealring: PTFE |
| 7.Body & Cap: Investment Casing |
| 8.100% tested under water and gas |
| 9.Got ISO. CE and watermark Certification |
| 10. Applicabe media: water.oil.gas. acid |
| 11. Applicable temperature: -40C~180C |
| 12.Locking device :Optional |
| 13.Blot-out proof stem |
| 14.All size are full port |
| 15.Testing according to API-598 |
| 16.Anti-static debices for ball-stem-body |
2pc ball valve material list:
| Item | part | material | ||
| 1 | Body | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 2 | Cap | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 3 | Ball | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 4 | Seat | PTFE | PTFE | PTFE |
| 5 | Stem | ANSI 316 | ANSI 304 | ANSI 304 |
| 6 | Thrust washer | PTFE | PTFE | PTFE |
| 7 | Packing | PTFE | PTFE | PTFE |
| 8 | Gland Nut | ANSI 304 | ANSI 304 | ANSI 304 |
| 9 | Handle | ANSI 430 | ANSI 430 | ANSI 430 |
| 10 | Washer | ANSI 301 | ANSI 301 | ANSI 301 |
| 11 | Nut | ANSI 304 | ANSI 304 | ANSI 304 |

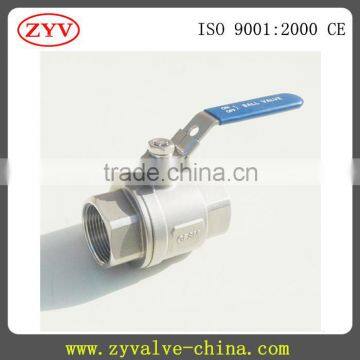

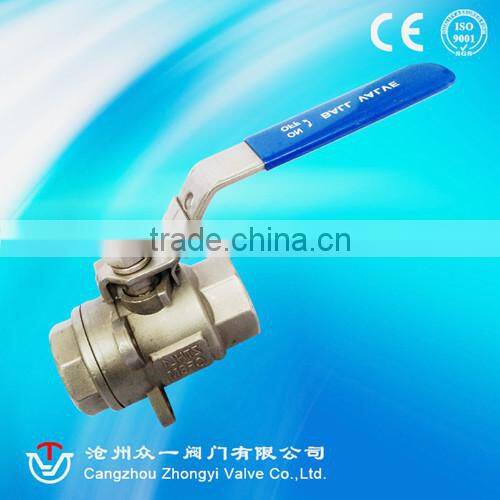

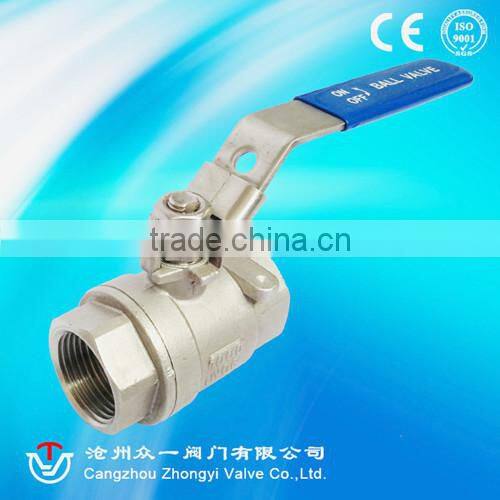

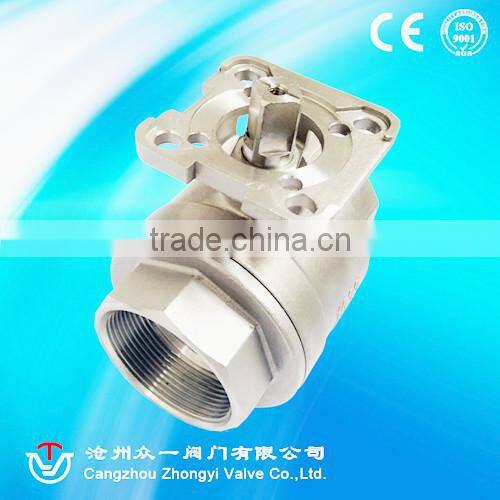

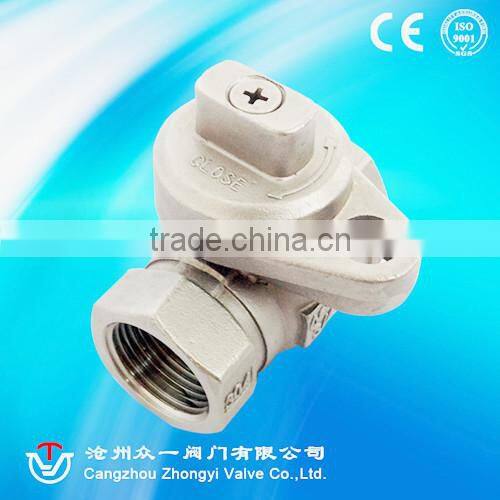

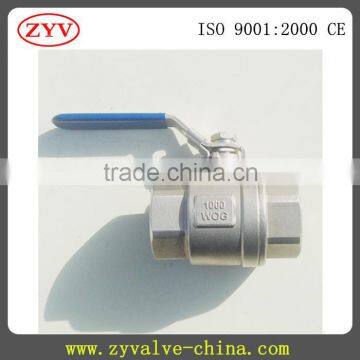

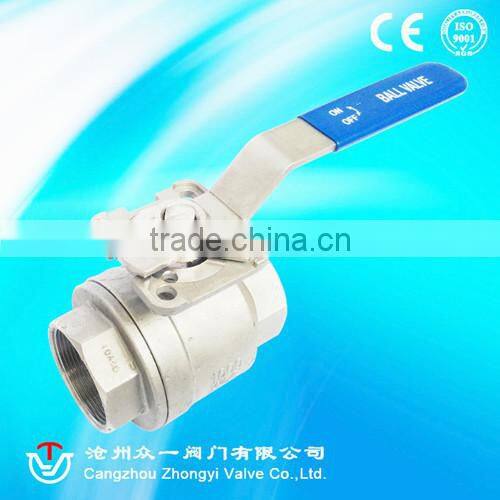

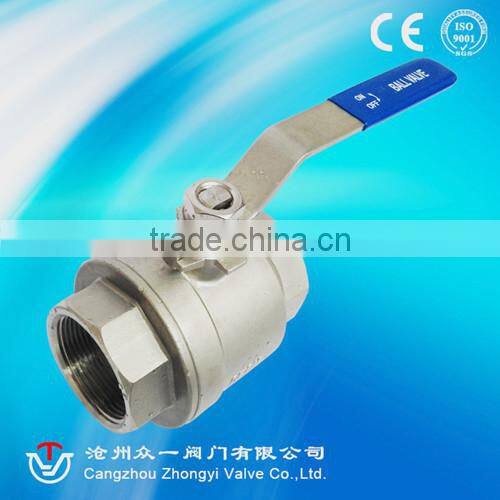

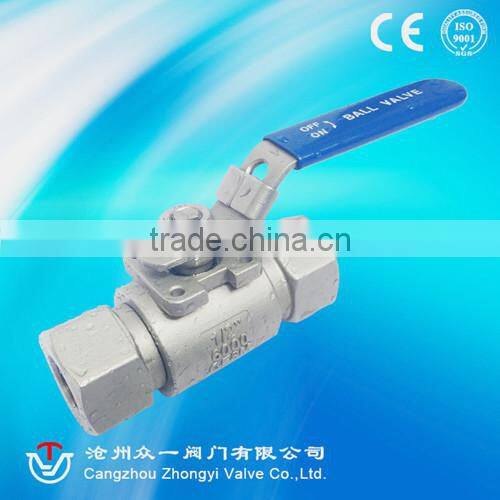

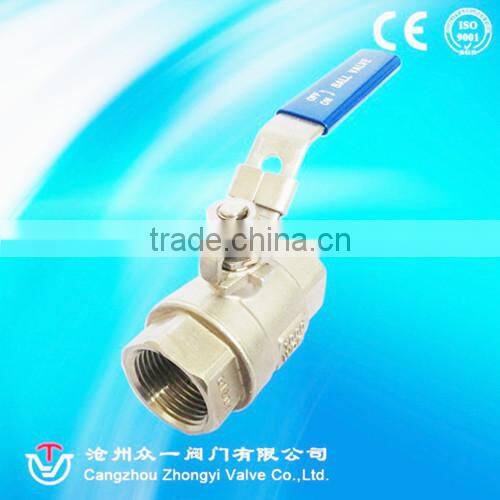

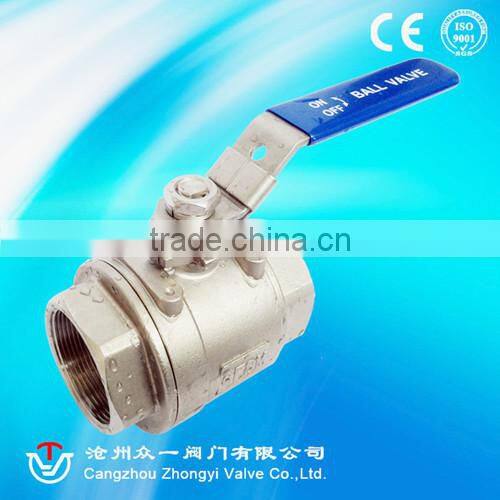

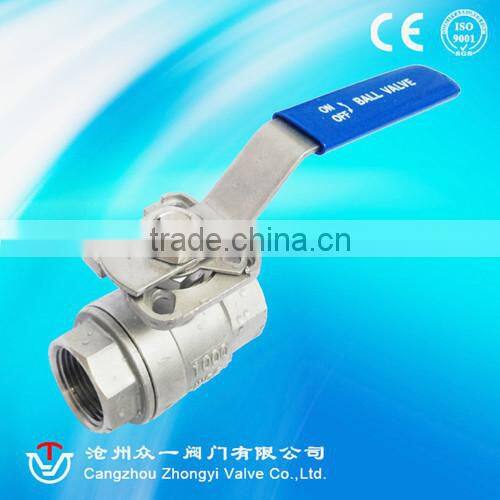

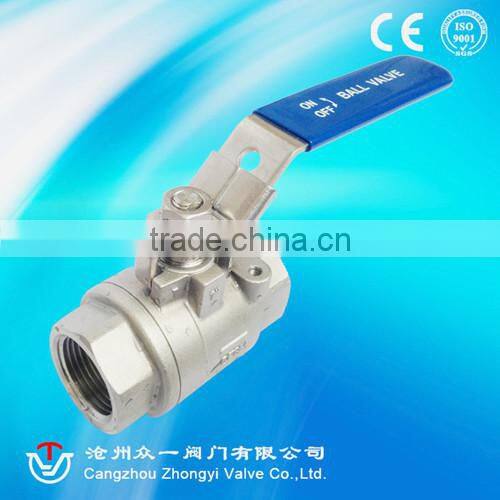

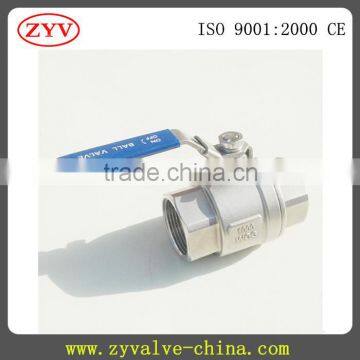

2pc ball valve picture:

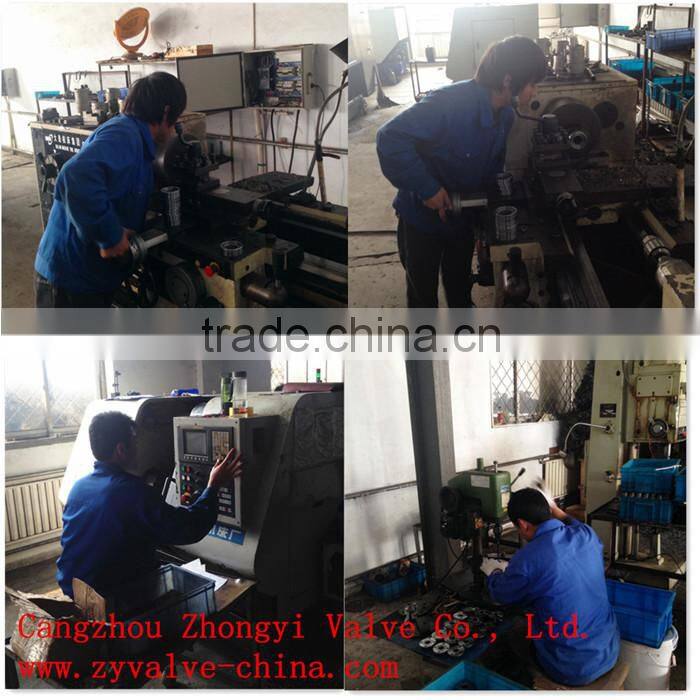

2pc ball valve workshop:

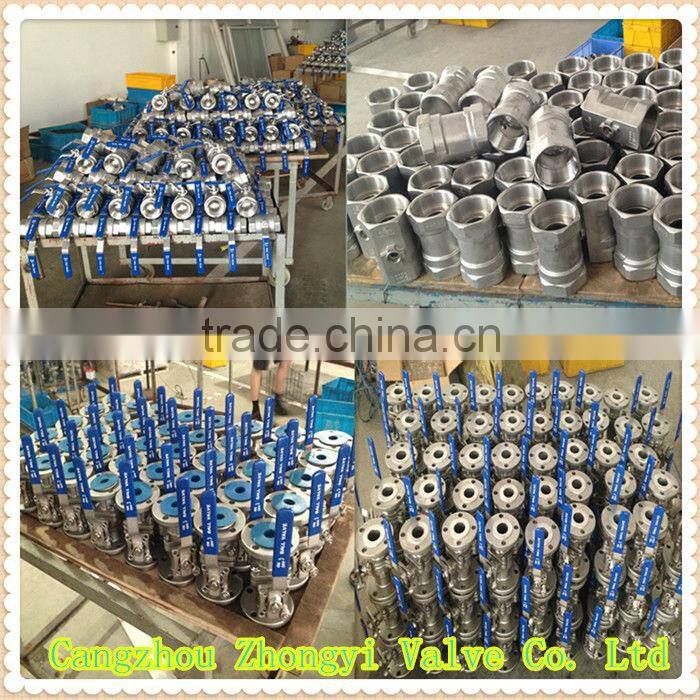

2pc ball valve Corner assembly:
2pc ball valve Packaging and shipping:
2pc ball valve FAQ:
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in cangzhou city, Hebei province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan ball valve, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
We keep high quality ball valve!
We offer ball valve competetive price!
We are good in after-sales service!
If you have any questions, you can always send me information that I have received will respond promptly.
