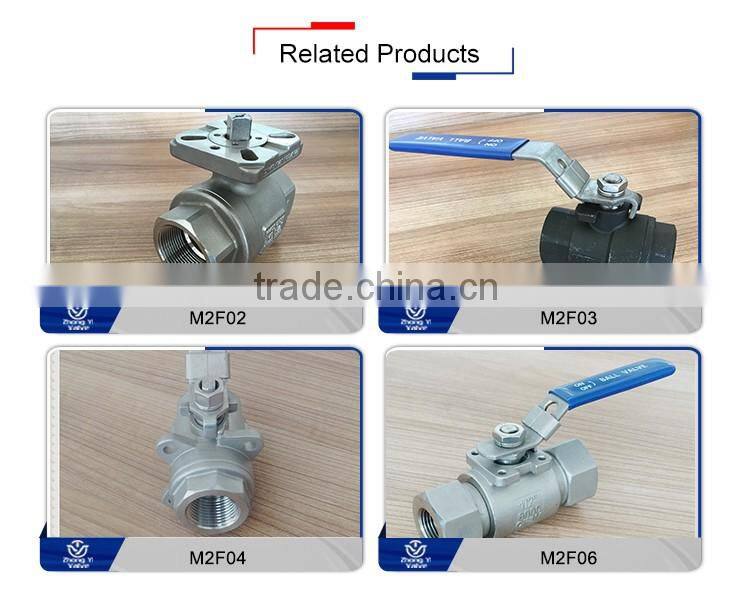

Related Products
-
Professional Manufacturer Stainless Steel One Piece Screwed Ball Valves Stainless SteelUS$ 1.2 - 10MOQ: 500 Pieces -
2016 China Supplier Flange Api 150lb Flanged Ball Valve for CementUS$ 2.91 - 121.71MOQ: 50 Pieces
-
Industry Manufacture Big Size Flanged Ball Valve for CementUS$ 2.91 - 121.71MOQ: 50 Pieces
-
ISO5211 Mounting Pad 1pc Ball ValveUS$ 1.2 - 13MOQ: 50 Pieces
-
Hot Sales 2000 Psi Ball Valve With HandleUS$ 1.2 - 10MOQ: 50 Pieces
Testing according to API-598 stainless steel 2-piece stainless steel ball valve cf8m 2000 wog
1.SIZE |
DN8-DN25 (1/4 to 1 inch) |
2.Material |
CF3M,CF8,CF8M,WCB |
3.Pressure |
2000 PSI |
4.Connect end |
Thread |
5.Thread ends |
ANSI B1.20.1(NPT),DIN 259/2999,ISO 228,BSP,BSPT |
6.Seat |
PTFE,PTFE+15%Glass,PTFE+25%Carbon,PPL |
7.Body & Cap |
Investment Casing |
8.Test |
API598,100% tested under water and gas |
9. |
ISO and CE Certification |
dia |
Water,oil,gas,acid,steam,ect |
11. Applicable temperature |
-20 ~ 180°C (RPTFE), -20 ~250 °C (PPL) |
12.Locking device |
Optional |
13. |
Blot-out proof stem |
14. |
Reduce port ball valve |
15. |
Testing according to API-598 |
16. |
Anti-static debices for ball-stem-body |
Item |
Part |
Material |
||
1 |
Body |
ASTM A351 CF8M |
ASTM A351 CF8 |
ASTM A216 WCB |
2 |
Cap |
ASTM A351 CF8M |
ASTM A351 CF8 |
ASTM A216 WCB |
3 |
Ball |
ASTM A351 CF8M |
ASTM A351 CF8 |
ASTM A216 WCB |
4 |
Seat |
PTFE,RTFE |
PTFE,RTFE |
PTFE,RTFE |
5 |
Stem |
ANSI 316 |
ANSI 304 |
ANSI 304 |
6 |
Thrust washer |
PTFE |
PTFE |
PTFE |
7 |
Packing |
PTFE |
PTFE |
PTFE |
8 |
Gland nut |
ANSI 304 |
ANSI 304 |
ANSI 304 |
9 |
Handle |
ANSI 430 |
ANSI 430 |
ANSI 430 |
10 |
Washer |
ANSI 301 |
ANSI 301 |
ANSI 301 |
11 |
Nut |
ANSI 304 |
ANSI 304 |
ANSI 304 |
1. we have full stock and can deliver within short time.
2. Any kind of logo printing or design are available.
3. Good Quality+Factory Price+Quick Response+Reliabe Service is what we are trying best to offer you.
4. All of products are produced by our professional workmen and we have our high-work-effect foreign trade team,you can totally believe our service.
5. We exported to more than 25 countries in the world.our main customers have U.S.A,CANADA,JAPAN,GERMANY,ITALY,SPAIN…
6. Our company was awarded with ISO 9001,certificate and CE for our valve, pipe fitting and flange products.
7. Check quality again,then send out to you at 1-2 working day after your payment.
8. We are very glad that customers give us some suggestion for price and products ,if you have any question please contact us freely by E-mail or Telephone.
9. Our main productions introduction :
Valve materil :stainless steel / cast iron/ ductile iron/ cast steel/ forged steel/
Valve type :ball valve/ check valve/ gate valve/ butterfly valve/ globe valve/ needle valve/ wafer/swing check valve/ flanged ball vavle
Pipe fitting:stainless steel
Warm tips:If you are interested in our products, please send us an inquiry,Please mention below information:Item model or main feature description
|
1. Q: Do you have your own factory? A: Yes, we have. Our factory located in cangzhou city, Hebei province. |
2. Q: How can I visit your factory? A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible. |
|
3. Q: Do you provide free sample? A: Usually we do not offer free sample |
|
4. Q: Could you print our company LOGO on the nameplate and package? A: Yes, we can do that. |
|
5. Q: Do you accept custom design on size? A: Yes, if the size is reasonable. |
|
6. Q: How do you overcome the anti-dumping and countervailing duties? A: We can use original Taiwan ball valve, and provide Certificate of Origin of Taiwan. |
|
7. Q: How can I be your agent in my country? A: Please leave feedback. It's better for us to talk about details by email. |
