2pc stainless steel full port screw ends xd ball valve
- 10000 Piece / Pieces per Month
- Tianjin port Or as requested
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | Medium Pressure |
Power: | Manual | Material: | Other, Stainless steel ball valve or carbon steel ball valve, CF8M,CF8,WCB | Temperature of Media: | Medium Temperature |
Media: | Other, Water,Oil,Gas | Port Size: | 2 inch | Place of Origin: | Hebei, China |
Model Number: | T2F01N | Brand Name: | Zhongyi Valve |
Product Description
T2F01N 2PC full port ball valve,screw ends,with locking device 1000WOG product description: |
1.SIZE: DN15-DN100 (1/4 to 4 inch) |
2.Material: SS202,SS304,SS316,CF8,CF8M,CF3M,WCB |
3.Working Pressure: 1000WOG/1000PSI |
4.Connect end: Thread |
5.Thread ends types: BSPT/NPT/BSPP/PT |
6.Seat: PTFE/RPTFE |
7.Valve Body & Cap: Investment Casing |
8.Test:100% tested under water and gas |
9.ISO and CE Certification |
dia: water,oil,gas |
11. Applicable temperature: -40C~180C |
12.Locking device :Optional |
13.Blot-out proof stem |
14.All size are full port |
15.Testing according to API-598 |
16.Anti-static debices for ball-stem-body |

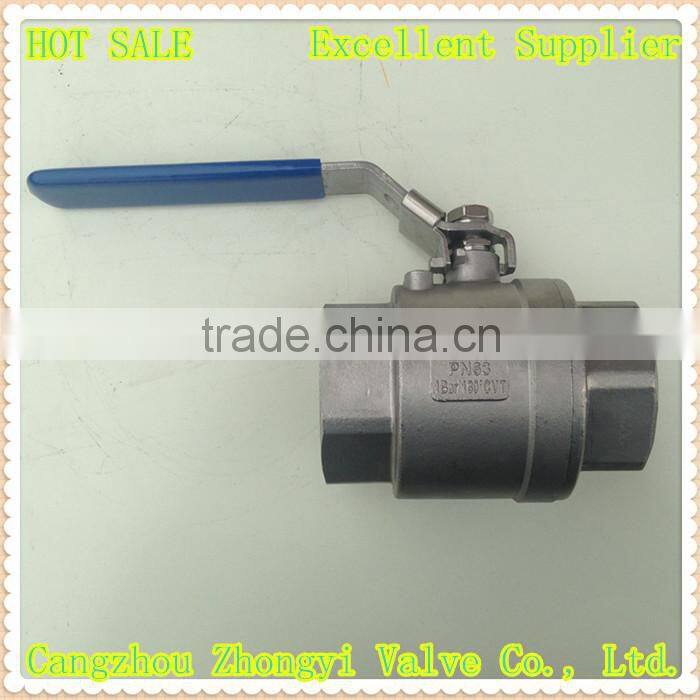

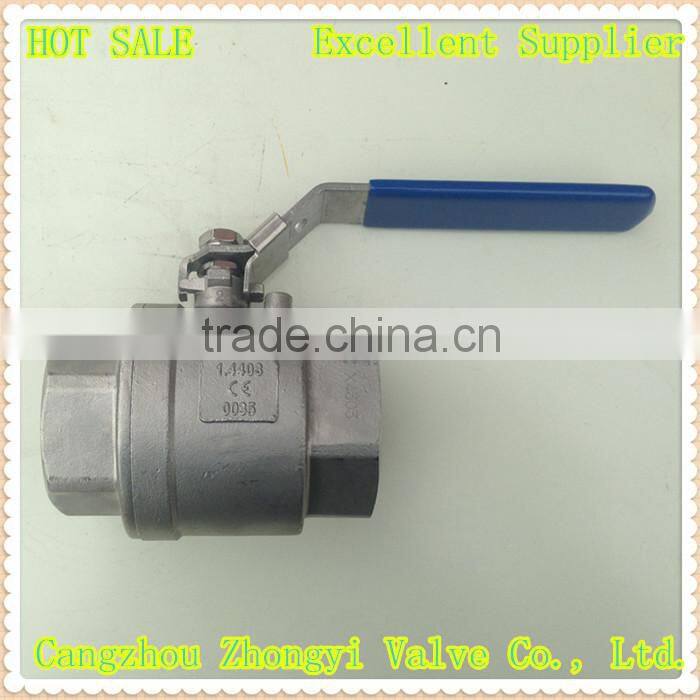

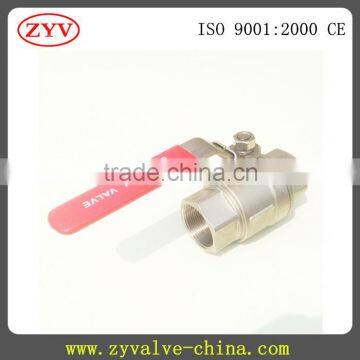

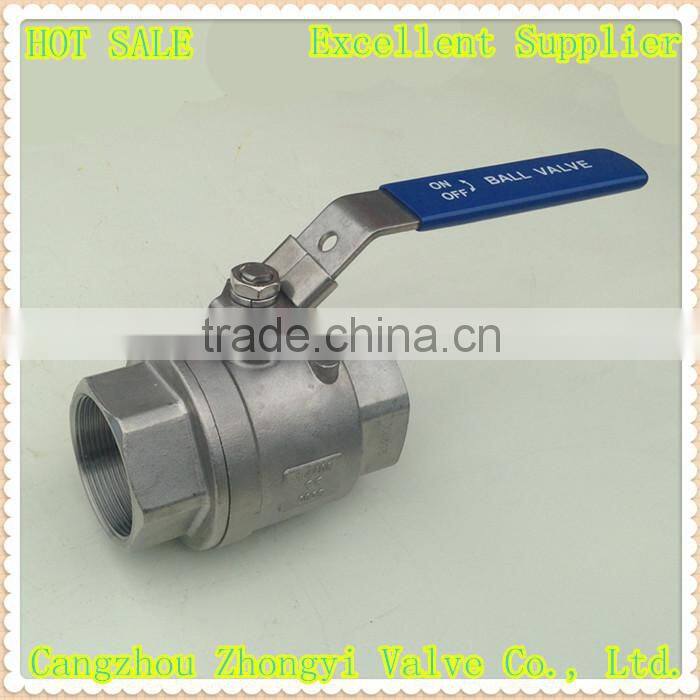

stainless steel 1000WOG ball valve Main view picture:

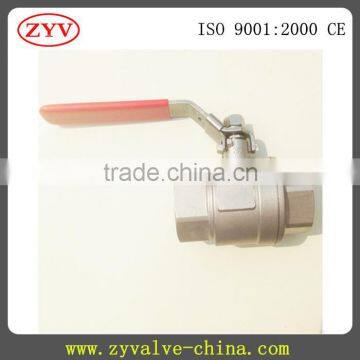

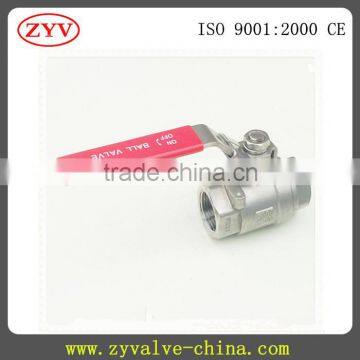

stainless steel 1000WOG ball valve lateral view picture:

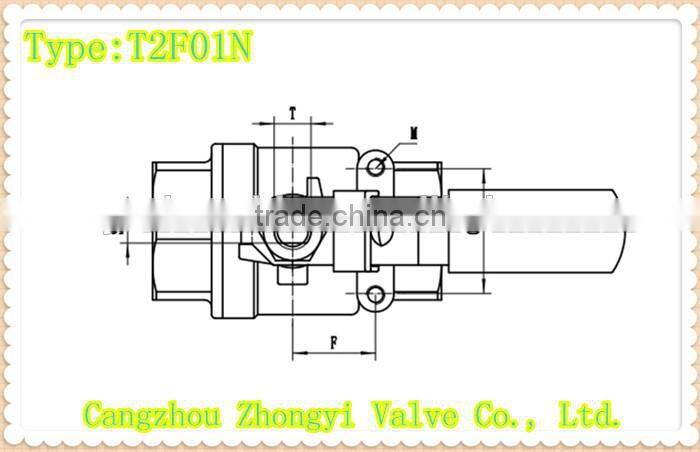

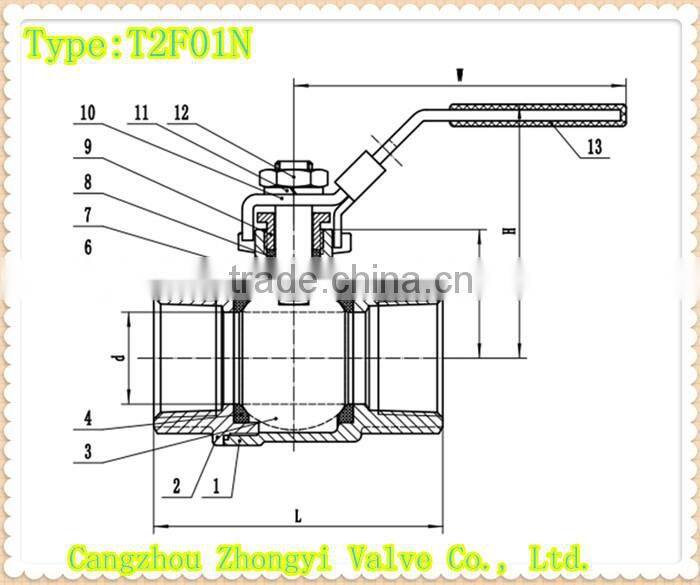

stainless steel 1000WOG ball valve drawing:

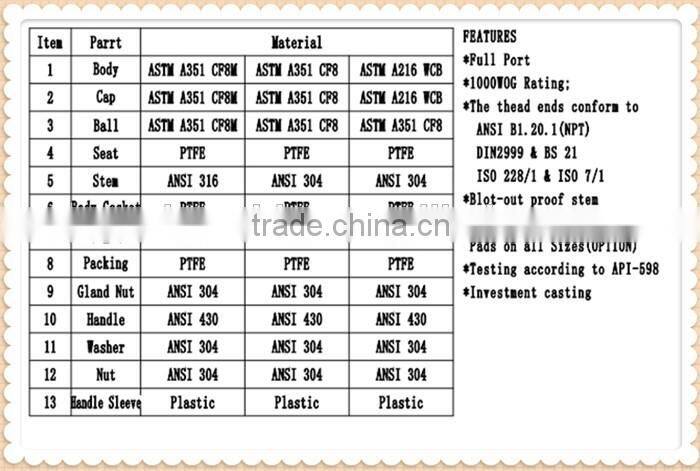

stainless steel 1000WOG ball valve material list:

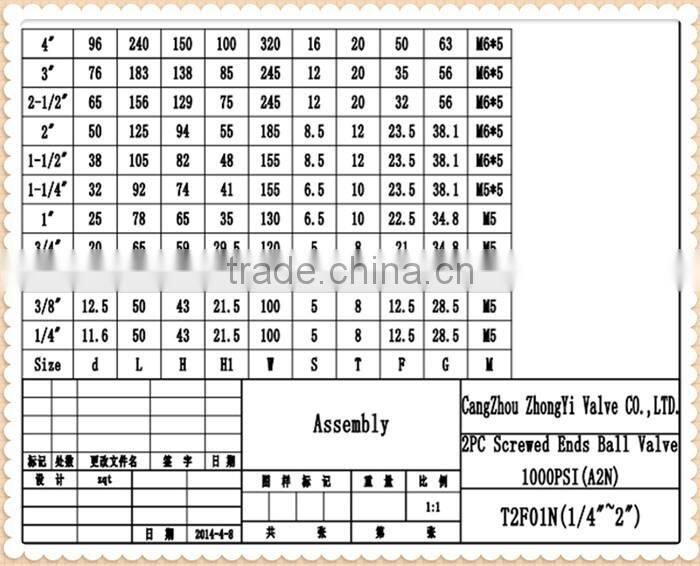

stainless steel 1000WOG ball valve Dimension table:
Ball Valve Sample Services: Provides a free samples and customer bear courier charges.
Ball Valve Customized services: We can be processed in accordance with the customer's drawings.
We can be processed in accordance with the sample provided by the customer.
Ball Valve Product service: Provide service within one year quality warranty.
We are professional manufacturers, If you want to check out our other stainless steel ball valves, please click here.
We have other Ball Valve in the following:
stainless steel 1000WOG ball valve workshop:
stainless steel 1000WOG ball valve Corner assembly:
stainless steel 1000WOG ball valve Packaging and shipping:
stainless steel 1000WOG ball valve FAQ:
Payment terms:T/T or L/C
Port:Tianjin port
Min Qty:50 Set
inquiry price:FOB for Tianjin Port
Why start business with us:
We keep high quality ball valve!
We offer ball valve competetive price!
We are good in after-sales service!
If you have any questions, you can always send me information that I have received will respond promptly.
