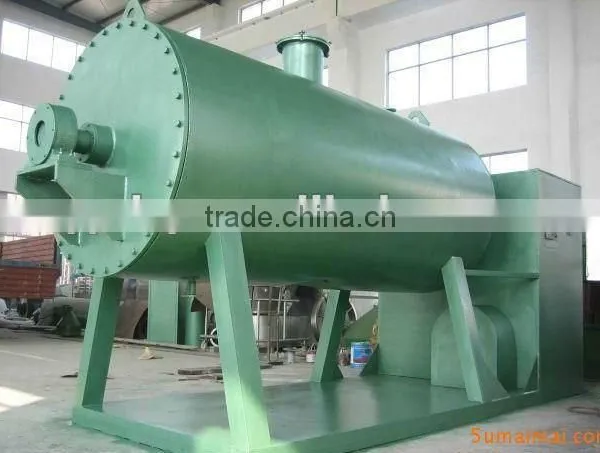

ZB Vacuum No-pullution Harrow Rake food Dryer
The following raw materials from pharmaceutical industry, foodstuff industy, chemical industry and so on can be dried.
Suitable for pulpiness,paste-like mixture or powder raw materials.
Thermal sensitive raw materials which should be dried under low temperature.
Raw materials that are easy to oxidize or explode and have strong irdtative or toxic properties
Raw materials that need to recover solvent
Features
Being adapted the heating way of jacket and inner stirring at the dame time,its heat conducting area is large and its thermal efficiency is high.
Being installed stirring in the machine, it makes raw material in cylinder continuously circulate, so the uniformity of heating materials is improved obviously.
Being installed stirring in the machine,pulpiness,paste-like mixture or powder raw materials can be dried easy.
Technical parameters
| item | type | ||||||
| name | unit | ZB-500 | ZB-750 | ZB-1000 | ZB-1500 | ZB-2000 | ZB-3000 |
| working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| heating area | m2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| stirring revolution | rpm | 630stepless variable | |||||
| power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| design pressure of jacket | Mpa | 0.3 | |||||
| pressure in the cylinder | Mpa | -0.096-0.15 | |||||
