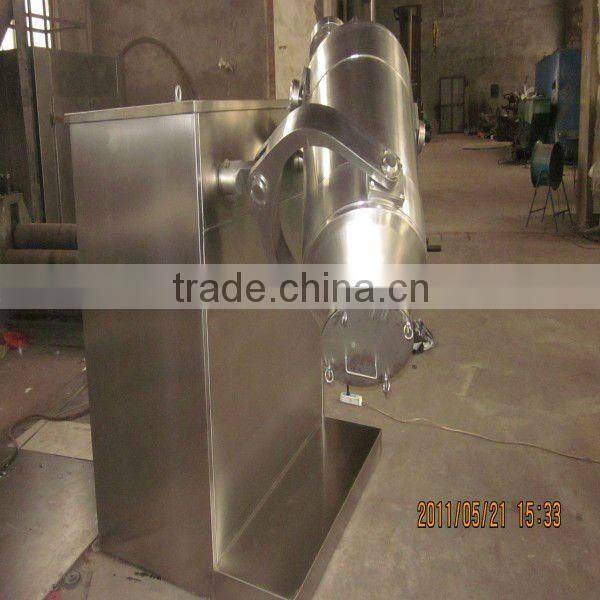

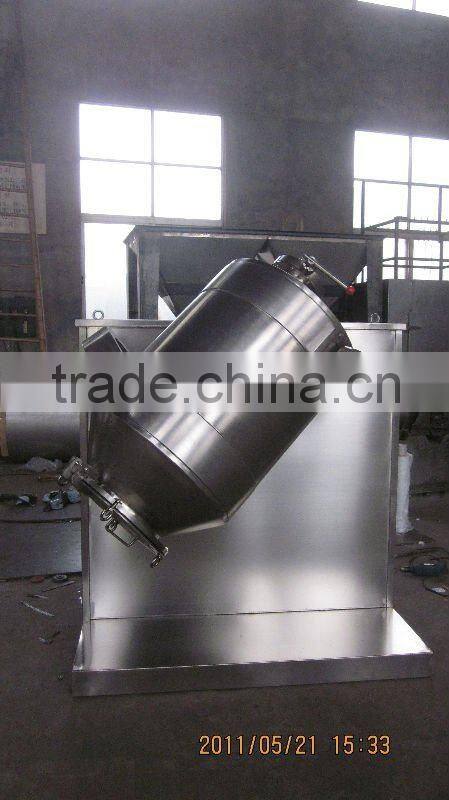

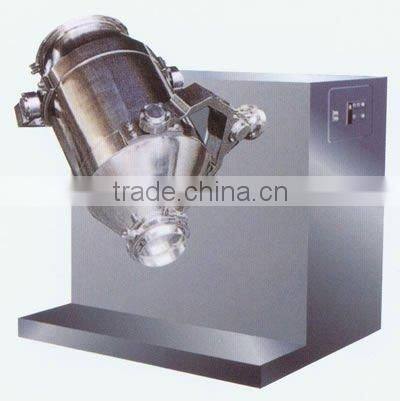

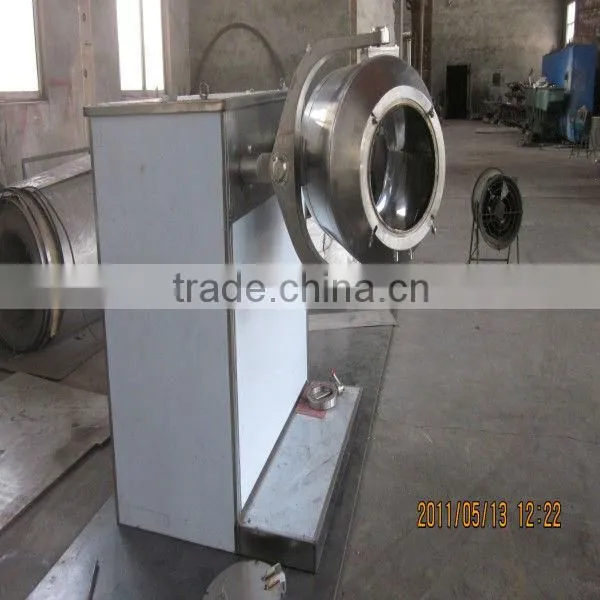

SYH Motion Mixer
1. Application:
This machine widely used in pharmaceutical, chemical, food, metallurgy, light industries and the scientific research units, institutes, can very evenly mixed liquidity good powdery and granular material, make the mixture of material can be mixed to achieve the best state.
This machine is more mixed tube direction, and the material without the centrifugal force function, without the proportion of segregation and stratification, accumulation phenomenon, various components can have the gap of weight ratio, mixed rate is high, is at present various mixture is ideal products.
Cylinder feeding rate with big, can be as high as 90% (ordinary mix machines is only 50%), high efficiency, hybrid time is short. Cylinder with circular arc transition of all places, after precise polishing processing.
Widely used in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units of powder, granule materials can very evenly mixed liquidity good powdery and granular material, make the mixture of materials to achieve the best mixed state..
2. Features:
Because mix barrel has many of the direction of movement, make the body material mixing barrel cross, the mixing effect is high, the evenness of 99.9% above, the maximum load coefficient 0.9 (ordinary mixer for 0.4-0.6), the mixing of short time, high efficiency. This machine mixing barrel design is unique, the barrel body wall after fine polishing, no dead Angle, no pollution materials, the material is convenient, easy to clean,simple operation.
3. Working principle:
The machine in the operation, the mixed multi-way, accelerate the flow and diffusion, solve the general mixer for centrifugal force role taken by the proportion of segregation and material accumulation phenomenon, mixed no dead Angle, can effectively ensure the best quality mixed materials.
4. Structure:
This machine is composed of the engine, transmission system, electric control system, learn a lot from sports organizations, mixing barrel components and other parts, and materials of the contact of stainless steel materials manufacturing hybrid barrels, barrel body inside and outside wall both by polishing.
5. Technical parameters
Type |
SYH-100 |
SYH-200 |
SYH-400 |
SYH-600 |
SYH-800 |
SYH-1000 |
Volume of the mixing beck(L) |
100 |
200 |
400 |
600 |
800 |
1000 |
Max loading volume(L) |
80 |
150 |
300 |
450 |
600 |
750 |
Max loading weight(kg) |
80 |
150 |
300 |
450 |
600 |
750 |
Main stirring speed(rpm) |
15 |
12 |
10 |
10 |
10 |
10 |
Motor power(kw) |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
Overall size(mm) |
1200*1800*1500 |
1300*1600*1500 |
1500*2200*1500 |
1850*2500*1650 |
1900*2400*2100 |
1950*2500*2400 |
Weight(kg) |
500 |
750 |
1200 |
1500 |
1650 |
1800 |
