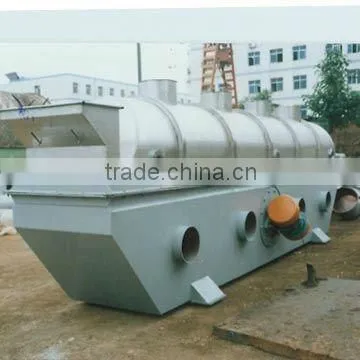

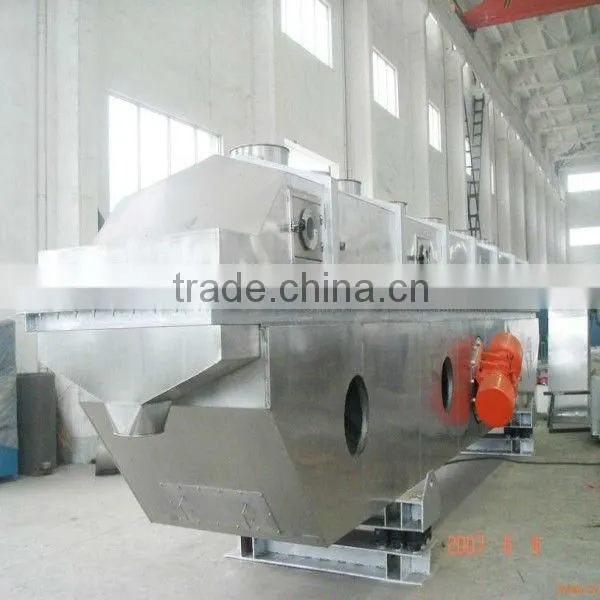

ZLG Series Rectilinear Fluidized Bed Dryer/acid Cooling Dryer

ZLG Series Rectilinear Fluidized Bed Dryer/acid Cooling Dryer thumbnail-1
ZLG Series Rectilinear Fluidized Bed Dryer/acid Cooling Dryer photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Product Type:
Detergent Powder
Place of Origin:
Jiangsu, China
Brand Name:
yeping
Contact Supplier Request Quote Chat Now
Changzhou Yeping Drying Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Type Detergent Powder
Place of Origin Jiangsu, China
Brand Name yeping
Model Number ZLG
GZL Series Oscillated fluidized Bed Dryer
Adopts dry pressing technology to pressure material with moisture content of lower than
10% into sheets, and it’s processed into required particles through breaking, granules treaming and screening process.
The material is pressed by exterior force, and passes through the gap between the two rollers which are rotating in different directions, and then it's pressed into sheets. The mass density of material might increase 1.5-3 times, so to achieve required strength.
The material is forced and to be pressed by mechanical force, without any additional ingredients, so to ensure purity.
The dry material is made into granules directly, no need any further drying process. So it's good for product process.
The strength of the particles are high, the mass density is increased more apparently compare to other method of granulation. It's especially applicable for to increase the mass density of product.
The pollution of environment is controlled, the wasted powder is reduced, the packaging fee is decreased and the product is easier in transportation.
The structure is compact, the maintenance is convenient, the operation is simple, the process is short, the energy consumption is low, the efficiency is high, the probability of fault is low, the application range is wide, and the pressure of roller might be adjusted freely
according to the property of material.
The material feeding adopts non-step inverter control, the automation level is high. One operation high control muti-units of machine. The labor intensity is low, and the machine might run continuously in long time.
Adopt high quality alloy, stainless steel, Ti, Cr and other metal for driving parts, the wear-resistance, cossive-resistance, thermo-resistance and pressure-resistance is highly increased. The service life is long.
Dry material powder is fed from the top of the equipment, de-air, screw-pre-press, enter into the gap between the two rollers that are rotating in opposite directions. The pressed material falls down because of surface tension and gravity when passes through pressing section. The noodles shaped material then enters into breaking machine, been smashed by rotating knife. The smashed material enters into granulator, and then the particles and part of powder material enters into sieve by the rolling knife, and then the product is separated. The product up to standard will be conveyed to product silo by conveyor; the material under the sieve should be fed back and should be pressed again. The pressure might adjust by the hydraulic oil cylinder according the requirements of granulation.
Sheet, bar and other shape of product might be procured by choose the relative shape of the grooves on the surface of the roller.
Hopper Lifting Machine.
Fine Power recycle
Particle of product
Grinding & Granulation devicetro-chemical, fine chemical, pharmaceutical, foodstuff, metal powder, Bio-engineering, pesticide, fertilizer, mine and coal

GZL240
GZL360
GZL450
diameter of roll(mm)
Φ240
Φ360
Φ450
width of roll(mm)
80-160
180-500
220-1000
revolution of roll(rpm)
15,20,26,32
14,18,24,30
10-25
Max.prssure of roll(mpa)
120
160
210
Max.thickness of pill(mm)
4
8
8
capacity of pill(kg/h)
200-500
500-3000
800-5000
diameter of finished pill(mm)
0.5-6
0.5-8
0.5-6
capacity of finished product(kg)
160-400
400-2400
680-4000
power of main machine(kw)
7.5
22-37
45
total power(kw)
20
50
80
overall dimension(L*w*H)(mm)
1500×1300×5000
2000×2000×9000
2500×2500×10000
weight(t)
6

ZLG Series Rectilinear fluidized Bed Dryer/acid cooling dryerZLG Series Rectilinear fluidized Bed Dryer/acid cooling dryer
