Specifications
YPG Pressure Drying Equipment. drying speed is fast
. high purity
.Automatic control
.Simple operation

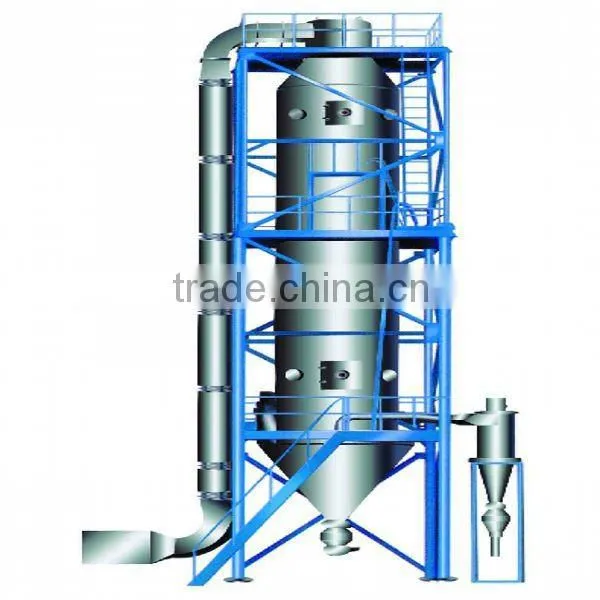

YPG Pressure Drying Equipment
1. The principle of work

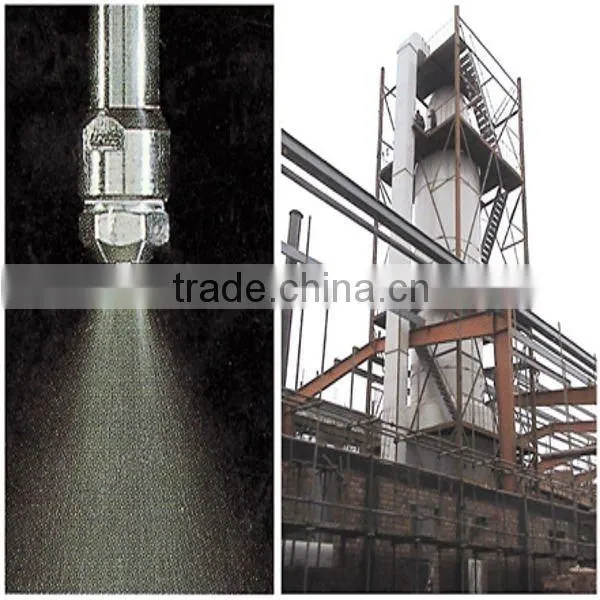

The high pressure pump through the nozzle make the material liquid atomization, fog droplets,fogdroplets mixed with hot air which goes into the dry tower through the hot air distribution device adjusting, heat and mass transfer rapidly, in a very short time dry to be powder granular products.The unit is a kind of device can finish dry and granulation at the same time can through adjusting gain the regular spherical granule, about 100-300 um particle size on average.
our company research and develop the spray drying machine which the direction of the wind can control in tower, middle rotation, near the tower wall is vertical wind, can effectively solve the spray tower sticking problem.
2. Product features
The drying speed is fast, especially suitable for thermal sensitive material.
The product is ball particle, particle size uniform,good liquidity, solubility, high purity and quality.
The dryed product are hollow ball particles, high solubility, meet the instant requirements.
It can be equipped with fine powder return and agglomeration system to meet the requirements of the material particle size.
Simple operation and stability, convenient to control, easy to realize automatic operation, product size, bulk density, moisture in a certain range can adjust.
3. Application example
Inorganic: cryolite,aluminum nitride, zro2. manganese dioxide, potassium fluoride, kaolin,calcium silicate, ammonium phosphate, calcium chloride, titanium white, chrome oxide.
Food and feed additive: tea powder, pure glue, Arabic gum, soybean protein isolated, soybean protein concentrate, amylase, composite amino acids, yeast powder, yeast extract, maltodextrin, casein acid sodium, blood protein powder, plasma protein powder, oligosaccharides, WFOS, rice peptide, snails peptide, coffee, whole milk, skimmed milk powder, whey powder.
Pharmaceutical: protein powder, pharmaceuticals,Chinese petent drugs, antibiotics, medicine granule.
The dye: dispersal dyes, reduction dye, vulcanization black, acidic light blue, fluorescent whitening agent, dye intermediates.
Chemical industry: urea, washing powder, detergent, AcR, white carbon black, alkali chromium sulfate.
4.Technical parameters
model |
Evaporative water Kg/h |
Homogeneity pump |
Heat resource |
|
Power kw |
pressureMp |
|||
YPG25 |
25 |
4 |
According to the materialsspeciality to adjust |
electricity,steam heat exchange,fire coal,fuel gas,fuel oil gas stove(customer requiring) |
YPG50 |
50 |
7.5 |
||
YPG100 |
100 |
7.5 |
||
YPG150 |
150 |
11 |
||
YPG200 |
200 |
15 |
||
YPG300 |
300 |
22 |
||
YPG500 |
500 |
30 |
||
YPG1000 |
1000 |
45 |
||
