WLDH Ribbon mixer machine/mixer machine/spray paint mixer
- 300 Set / Sets per Month
- Shanghai.
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | yeping | Model Number: | WLDH |
Product Type: | Other |
Product Description

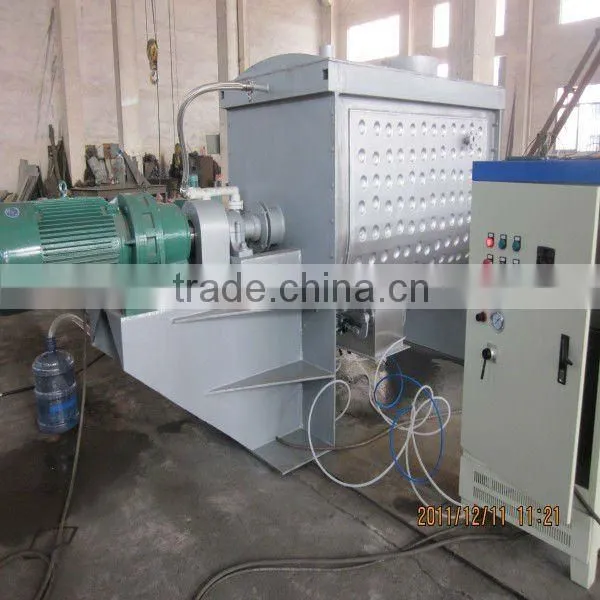

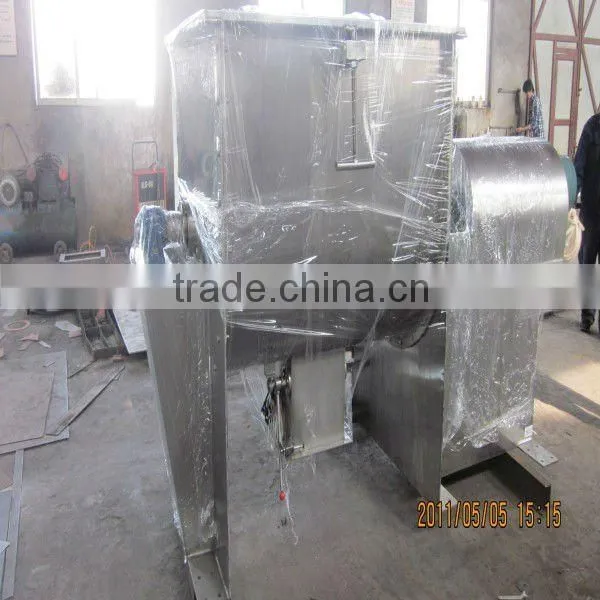

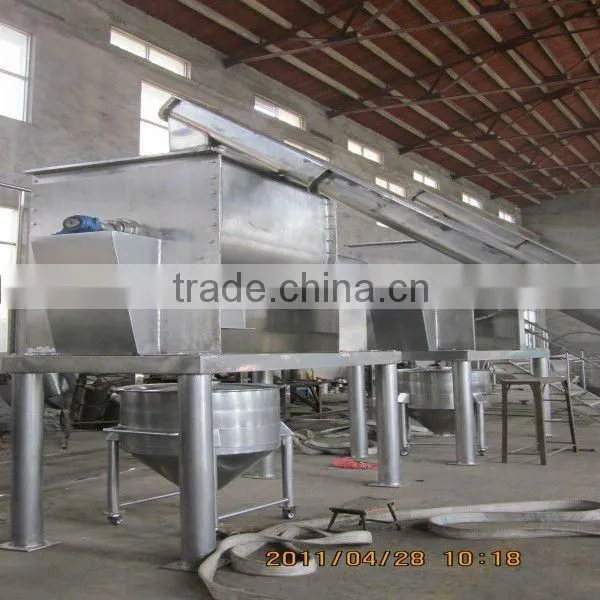

WLDH Screw belt type mixer
1. The principle of work
The machine by containers, spiral mixing blades and transmission components: spiral leaf is made of double or layer 3, outer spiral will material from two sides to, theinner ribbon material from the central on both sides of the conveying, form convection mix.
2. Product features:
Load factor is big,
Cover a small area;
Easy to cleaning the mixed sticky or has condensed sex material
3. Application example
Used for mixing of powdery or wet sex material, make the different proportion of the mixing materials. This machine is the contact point and material are made of stainless steel, paddle blade and barrel body small clearances, mixed no dead Angle, mixing materials shaft sealing device at both ends, can prevent material leaking, widely used in pharmaceutical, chemical, food and other industries.
4. Technical parameters
Type | Once mixing(Kg) | Motor power(Kw) | Weight(Kg) |
WLDH-0.1 | 30-50 | 1.5-4 | 300 |
WLDH-0.5 | 200-300 | 4-11 | 900 |
WLDH-1 | 400-600 | 7.5-15 | 1400 |
WLDH-1.5 | 600-900 | 11-18.5 | 1900 |
WLDH-2 | 800-1200 | 15-22 | 2500 |
WLDH-3 | 1200-1800 | 18.5-30 | 3100 |
WLDH-4 | 1600-2400 | 22-37 | 3600 |
WLDH-6 | 2400-3600 | 37-55 | 5300 |
WLDH-8 | 2400-3600 | 37-55 | 6800 |
WLDH-10 | 4000-6000 | 45-75 | 7800 |
