Specifications
High Quality Fluidizing Dryer.Suitable for drying humidity block or raw materials
.The structure is round
.High drying speed

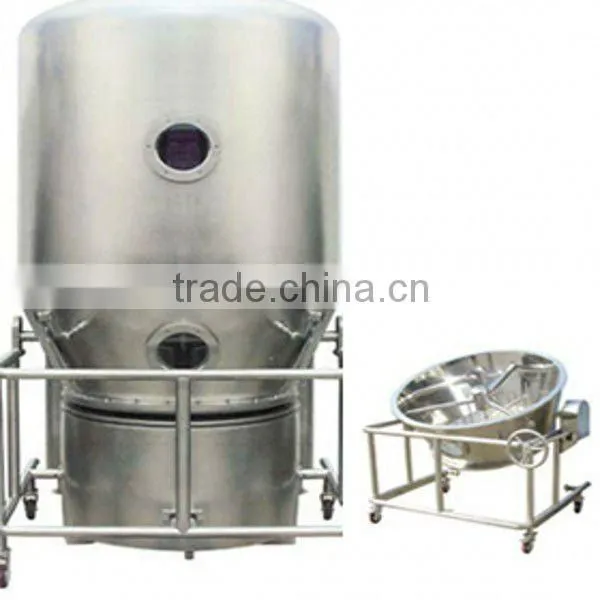

GFG High-Efficiency Fluidizing Dryer
1. The principle of work
The air purification heating, the fan inhaled, the porous sheet into bed inside; In a mixing materials and air flow formed under the action of fluidized
2. Features
.The structure of fluidized bed is round so as to avoid dead corner

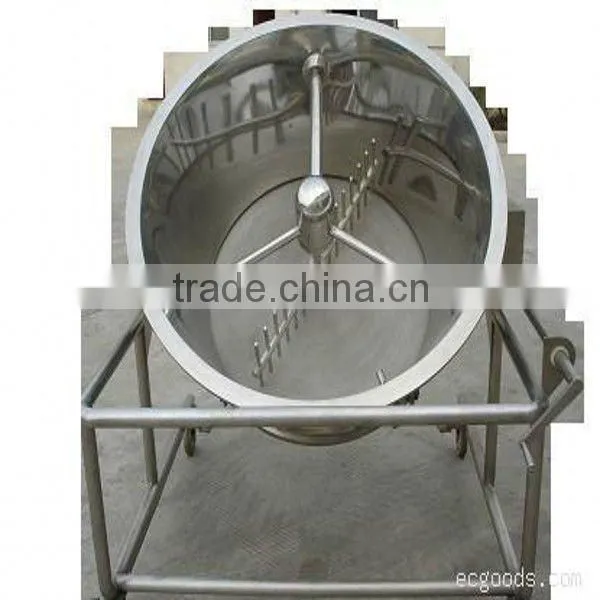

.Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow
.The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request
.It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP
.The drying speed is fast and the temperature is uniform. In general the drying time is 15-45 minutes for each batch
3. Applications
. Use screw to extrude and vibrate granule and granulate granule using the methods of humidity, high speed and mixing.
. Suitable for drying humidity block or powder, raw material in the fields such as pharmaceutical, foodstuff, feedstuff, the chemical industries and so on.
4. Technical parameters
Type |
Diameter (mm) |
Raw material unit (Kg/mass) |
Fan (Kw) |
Consumption of stream(kg/h) |
Hour |
GFG-15 |
550 |
15 |
4 |
140 |
15~30min |
GFG-30 |
700 |
30 |
5.5 |
170 |
|
GFG-60 |
1000 |
60 |
11 |
170 |
|
GFG-120 |
1200 |
120 |
18.5 |
240 |
|
GFG-150 |
1300 |
150 |
22 |
280 |
|
GFG-200 |
1400 |
200 |
22 |
320 |
|
GFG-300 |
1600 |
3000 |
30 |
450 |

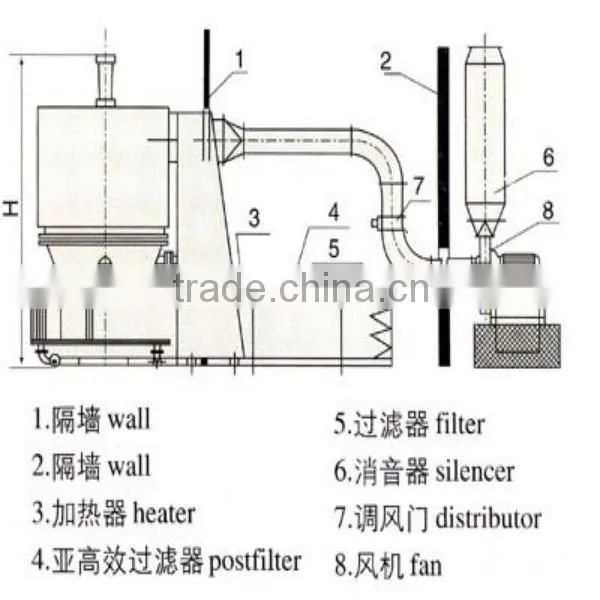

5.Sketch of GFG
.
.
