Made in China manufacture prototype oem electronic hobby pcb manufacture
- 60000 Piece / Pieces per Month
- Shenzhen or Hongkong
- T/T
- USB Relay Output Module PCB Board for Home Automation
- PCB Roger Circuit Board with cheap cost & Fast supply
- Cheap cost Rogers PCB production , pcb sample
- Fast Supply Rogers 4350 PCB Circuit Board Prototype and mass pcb production
- High quality Rogers Printed Circuit board with fast supply , rogers material in stock
- 2 layers Taconic Material PCb /Special material pcb circuit board provided
Product Details
Brand Name: | HENGKAITUO FR4 PCB | Model Number: | multilayer PCB | Number of Layers: | 6-Layer |
Base Material: | FR4 | Copper Thickness: | 1oz | Board Thickness: | 1.6mm |
Min. Hole Size: | 3mil | Min. Line Width: | 3mi | Min. Line Spacing: | Machine Drilling 0.2mm; Laser Drilling 0.1mm |
Surface Finishing: | HASL |
Product Description
WELCOME to HENGKAITUO(DAYEE)
What we can do for you?
- EMS-Electronic Manufacturing Service
PCB design and PCB Layout
PCB Assembly on SMT, BGA and DIP
Cost Effective Components Sourcing
Fast Turn Prototype and Mass Production
Box Build Assembly
Engineering Support
Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)
Logistics and After-sales Service
Manufacturing capability
PCB Layers | 1 Layers to 12 layer (standard), |
PCB material/type | FR4, Aluminum, CEM1, Supper-thin PCB, FPC/Gold finger |
Assembly service type | DIP/SMT or Mixed SMT & DIP |
Copper thickness | 0.5um-4um |
Assembly surface finish | HASL,ENIG,OSP |
PCB Dimension | 600x1200mm |
IC Pitch(min) | 0.2mm |
Chip Size(min) | 0201 |
Leg distance(min) | 0.3mm |
BGA Size | 8x6mm~55x55mm |
SMT Efficiency | SOP/CSP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA |
u-BGA ball dia. | 0.2mm |
Required Docs for PCBA | Gerber file with BOM list & Pick-N-Place File(XYRS) |
SMT speed | CHIP components SMT speed 0.3S/pcs, max speed 0.16S/pcs |

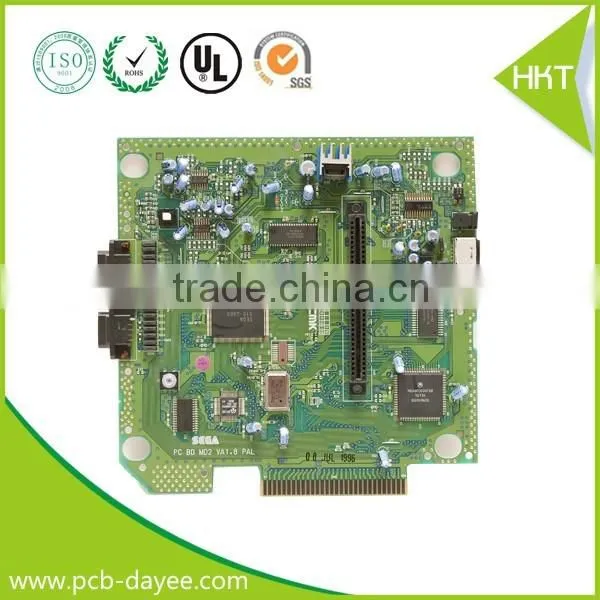

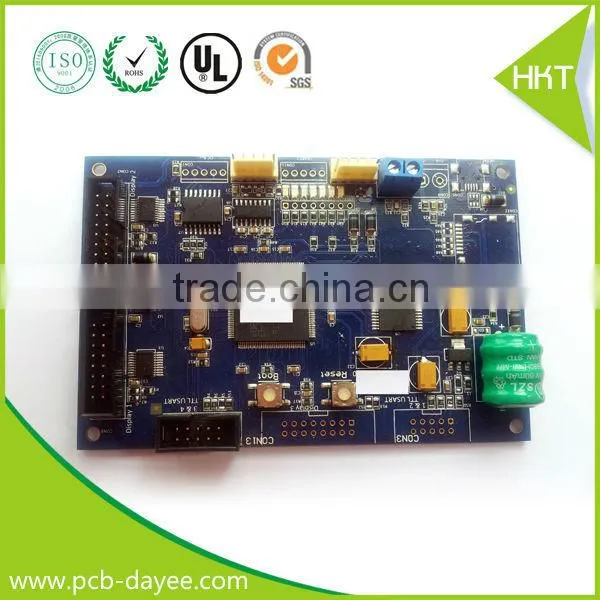

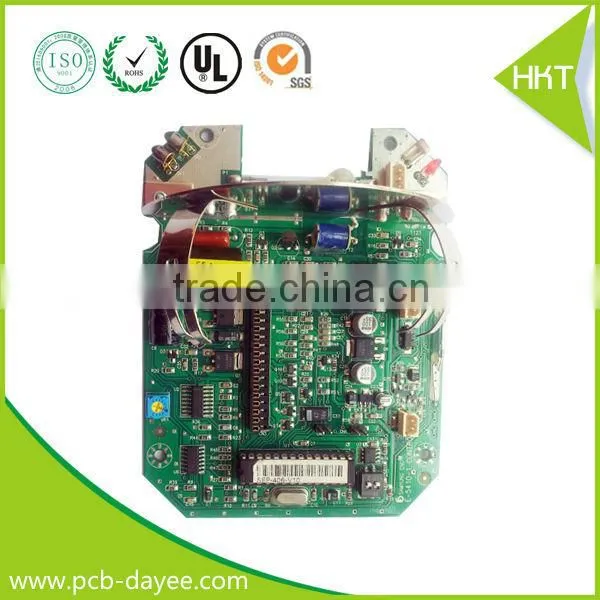

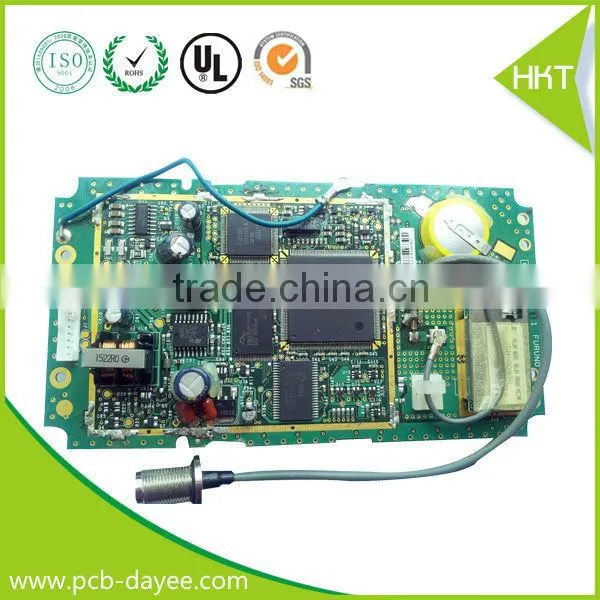

Our Products:
Our Workshop:

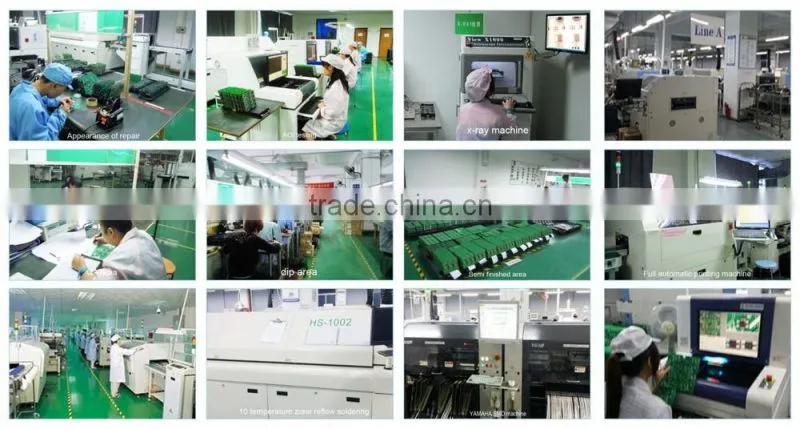

1) Our production line 1

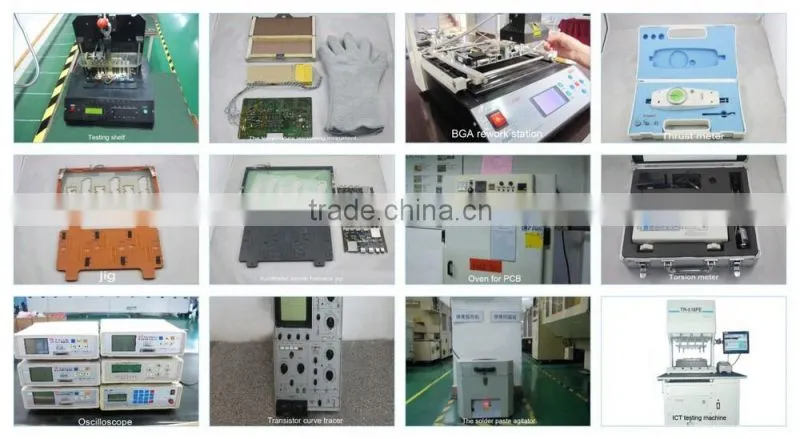

2) Our testing equipment:
Our Equipment list:
Equipment Name | Qty Number |
YAMAHA, YG, YS series of new high-speed placement machine | 5 sets |
Japan's YAMAHA YV, YG, YS series of new multi-functional SMD machine | 6 sets |
Imports of high-speed PAWASERT placement machine | 1 set |
Gang Yang eight temperature zone (with cooling zone) lead-free reflow soldering | 2 sets |
Yang Gang lead-free red gum reflow soldering | 1 set |
Jin extension ten upper and lower temperature region (with cooling zone) | 2 sets |
Automatic printing machine | 4 sets |
Semi-automatic printing machine | 3 sets |
AOI optical detection instrument | 2 sets |
XR machine | 1 set |
BGA repair machine | 1 set |
Lead-free spray-double Wave soldering | 2 sets |
Lead spray-double Wave soldering | 2 sets |
Full automatic SMT production line | 7 lines |
DIP line | 6 lines |
DIP for after assembly line | 6 lines |
Assembly line | 3 lines |
Aging room. Calibration device, test bench, vibration tester, tester ect. |
|
|
Our Quality Control System:
Our company executes the ROHS requirements, all the products we provide to our customers will be strictly accordance with ROHS standard. Our quality contral system includes following process

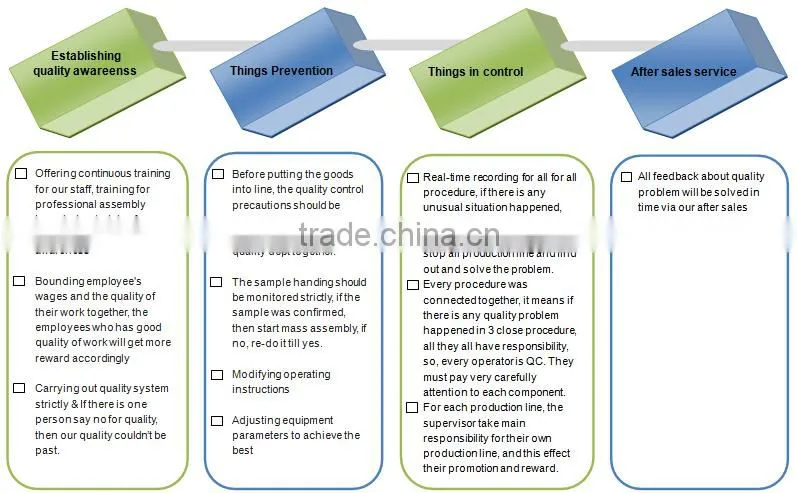

1) Risk assessment

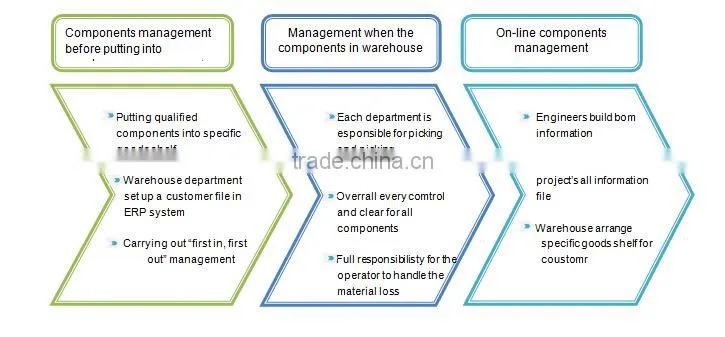

Before production, we take all action to avoid risk though following step:
2) ERP quality system
Making all departments, like production, supply, sales, inventory, human resources, finance, logistics, decision-making departments can share resources, information together in enterprise. So that enterprise could analysis, forecast, making decision for all related enterprise management activity. Under this management system, whole enterprise business process will be controlled and improved under healthy situation

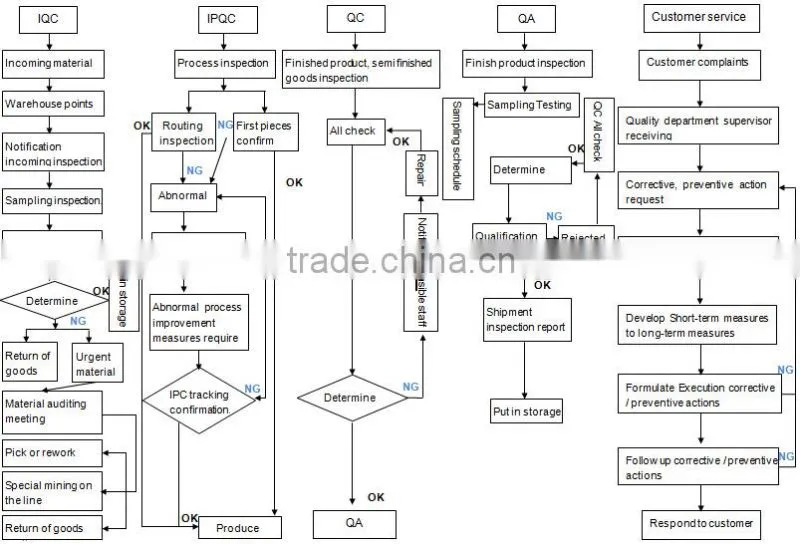

3) Production process quality control
- DIP assembly process quality control
- SMT assembly process quality control

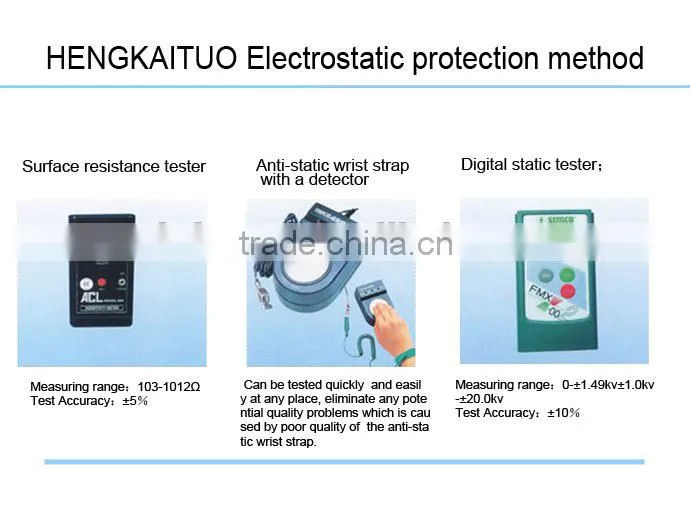

4) Electrostatic protection method
- Inhibiting static charge accumulation and static charge generation
- Eliminating existent static charge in quick and safe way.
- The implementing electrostatic protection area(EPA) and good grounding system
Our Package:
Why us?
*- Providing you 100% good quality product: 4 times 100% QC inspection & AOI X-ray test & FUNCTIONAL testing before Shipping.
*- Get a competitive price of product to occupy the market based on 100% good quality assurance, our stable components suppliers are Mouser, ARROW electronics, Digikey, RS, etc.
*- Our one stop PCB & PCBA service release your energy to focus on design and marketing.
*- Our professional engineering team can provide you technology support and professional suggestion at any time with more than 10 years working experience.
So, you must win!
Contact Us
- Shenzhen Hengkaituo Sci-Tech Co., Ltd.
- Contact nameJane Ma
- Phone0086-755-28548369
- Address37 B, B zone, Fulian, Longhua district Shenzhen,Guangdong
