HENGKAITUO Pcb Layout Design

HENGKAITUO Pcb Layout Design thumbnail-1

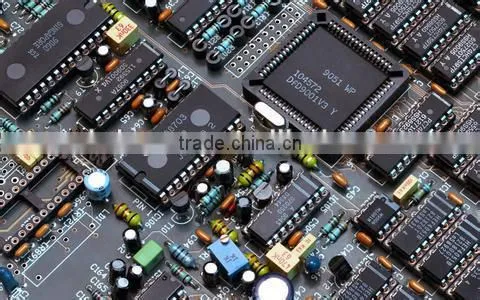

HENGKAITUO Pcb Layout Design photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HENGTAITUO
Model Number:
HKT1454
Contact Supplier Request Quote Chat Now
Shenzhen Hengkaituo Sci-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HENGTAITUO
Model Number HKT1454
Number of Layers 4-Layer
Base Material FR4
Copper Thickness 0.5oz-3oz
Board Thickness 0.4mm-3.2mm
Min. Hole Size Machine Drilling 0.2mm; Laser Drilling 0.1mm
Min. Line Width 3mil
Min. Line Spacing 3mil
Surface Finishing HASL,ENIG, ENTEK (OSP)

Specifications

1. One-stop service over 10 years
2. UL, RoHS, ISO14000 approved
3. Precision:01005,0201,0402,0603,0805,1206,1608,2125



Welcome to HENGKAITUO(DAYEE)

What we can do for you?

  1. EMS-Electronic Manufacturing Service

  2. PCB Supply and Layout

  3. PCB Assembly on SMT, BGA and DIP

  4. Cost Effective Components Sourcing

  5. Fast Turn Prototype and Mass Production

  6. Box Build Assembly

  7. Engineering Support

  8. Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)

  9. Logistics and After-sales Service

Manufacturing capability

PCB Layers

1 Layers to 12 layer (standard)

Material

FR4, Aluminum, CEM1

Solder mask

green, black, white, red, blue

Copper thickness

0.5um-4um

Surface finish

HASL,ENIG,OSP

Min holes

0.2mm by machine; 0.1mm by Laser Drilling

Min track width

3mil

PCB Dimension

600x1200mm

IC Pitch(min)

0.2mm

Chip Size(min)

0201

BGA Size

8x6mm~55x55mm
SMT Efficiency

SOP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA

u-BGA ball dia.

0.2mm

Required Docs for PCBA

Gerber file with BOM list & Pick-N-Place File(XYRS)

Why us?

*- Get a high quality product: AOI X-ray test & 4 times 100% QC inspection before Shipping
*- Get a lower price of product to occupy the market.
*- Our one stop service release your energy to focus on design and marketing.
*- Get a strategic long term partner.
So, you must win!
