smallest smt components size 0201 pcb pcba
Our Products
PCB Layers |
1 Layers to 12 layer (standard), |
PCB material/type |
FR4, Aluminum, CEM1, Supper-thin PCB, FPC/Gold finger |
Assembly service type |
DIP/SMT or Mixed SMT & DIP |
Copper thickness |
0.5um-4um |
Assembly surface finish |
HASL,ENIG,OSP |
PCB Dimension |
600x1200mm |
IC Pitch(min) |
0.2mm |
Chip Size(min) |
0201 |
Leg distance(min) |
0.3mm |
BGA Size |
8x6mm~55x55mm |
SMT Efficiency |
SOP/CSP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA |
u-BGA ball dia. |
0.2mm |
Required Docs for PCBA |
Gerber file with BOM list & Pick-N-Place File(XYRS) |
SMT speed |
CHIP components SMT speed 0.3S/pcs, max speed 0.16S/pcs |

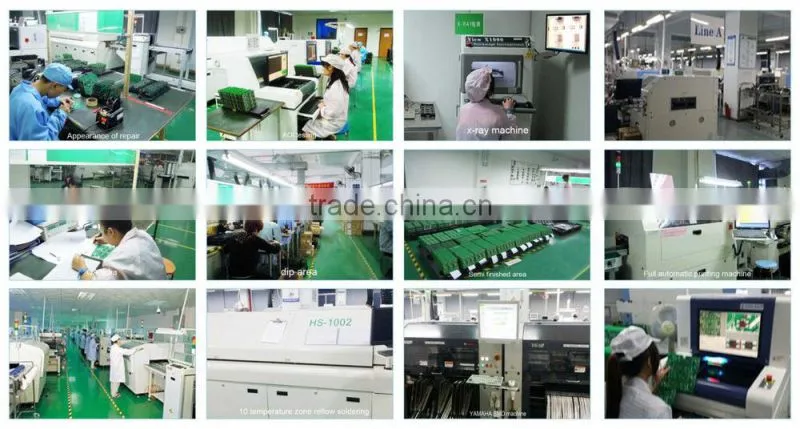

OUR WORKSHOP
1) Our production line

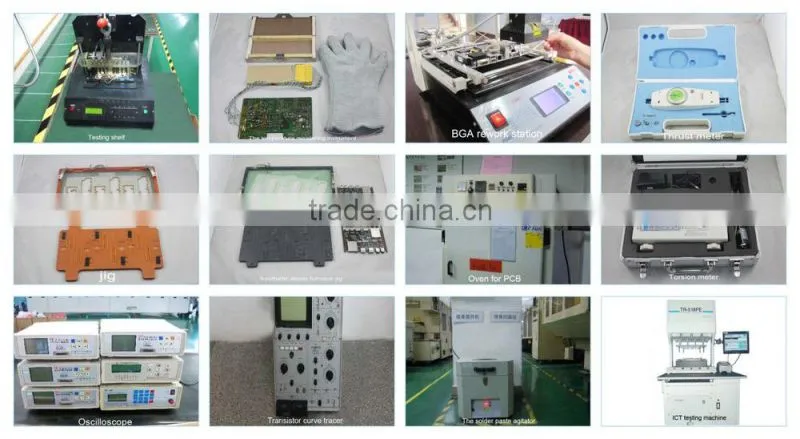

2) Our equipment for testing
OUR QUALITY CONTROL SYSTEM:
1) Risk assessment
Before production, we take all action to avoid risk though following step:
2) ERP quality system
Making all departments, like production, supply, sales, inventory, human resources, finance, logistics, decision-making departments can share resources, information together in enterprise. So that enterprise could analysis, forecast, making decision for all related enterprise management activity. Under this management system, whole enterprise business process will be controlled and improved under healthy situation.
3) Production process quality control
DIP assembly process quality control
SMT assembly process quality control

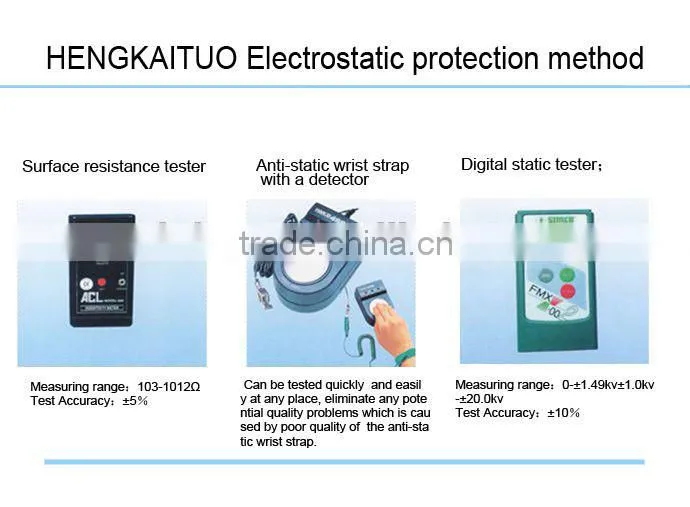

4) Electrostatic protection method
Inhibiting static charge accumulation and static charge generation
Eliminating existent static charge in quick and safe way.
The implementing electrostatic protection area(EPA) and good grounding system
EQUIPMENT LIST
| Equipment Name | Qty Number |
| YAMAHA, YG, YS series of new high-speed placement machine | 5 sets |
| Japan's YAMAHA YV, YG, YS series of new multi-functional SMD machine | 6 sets |
| Imports of high-speed PAWASERT placement machine | 1 set |
| Gang Yang eight temperature zone (with cooling zone) lead-free reflow soldering | 2 sets |
| Yang Gang lead-free red gum reflow soldering | 1 set |
Jin extension ten upper and lower temperature region (with cooling zone) |
2 sets |
| Automatic printing machine | 4 sets |
| Semi-automatic printing machine | 3 sets |
| AOI optical detection instrument | 2 sets |
| XR machine | 1 set |
| BGA repair machine | 1 set |
| Lead-free spray-double Wave soldering | 2 sets |
| Lead spray-double Wave soldering | 2 sets |
| Full automatic SMT production line | 7 lines |
| DIP line | 6 lines |
| DIP for after assembly line | 6 lines |
| Assembly line | 3 lines |
| Aging room. Calibration device, test bench, vibration tester, tester ect. |

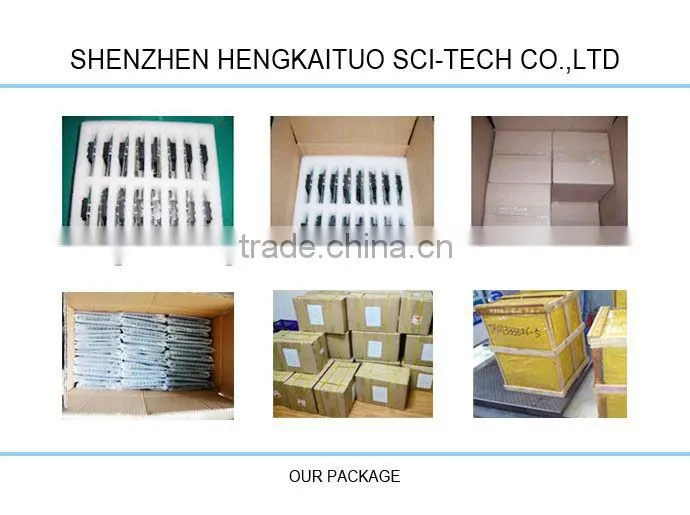

OUR PACKAGE:
For PCB, Bubble Anti-static Bag. For AL, Composite Anti-static Bag, Double Flute Carton, Inner Pads (Top & Bottom), Inner Cards, Pallet, Pallet Wrapper.
OUR SERVICE:
| SMT Assembly | Leading edge surface mount population technologies. |
| PTH Assembly | RoHS compliant wave soldering & hand soldering capabilities. |
| PCB design | Provide circuit design & PCB layout support. |
| PCB Fabrication | Provide us with your design files/Gerber files and we will produce your PCBs on-site here in our China manufacturing facility. |
| Component procurement | Take advantage of DAYEE’s purchasing & material control expertise. |
| Cable Assembly | While we make your PCBs we can also be making your cables. |
| Product Assembly | DAYEE offer total turnkey solutions including full product build. |
| Function Test & Inspection | DAYEE offer test & inspection services on PCBs & assemblies |
Why us?
*- Get a high quality product: AOI X-ray test & 4 times 100% QC inspection before Shipping
*- Get a lower price of product to occupy the market.
*- Our one stop service release your energy to focus on design and marketing.
*- Get a strategic long term partner.
So, you must win!
1. What is the main application of your PCBA service?
Industrial commander, and other industrial devices./Medical equipments main board./-Security electronics/-Communicative devices/ telecommunications/wireless/-New energy electronics/automotive pcbs
2. Are you a factory or trade company?
We are PCBA OEM& ODM one stop service factory
3. How many SMD lines do you have?
8 lines, all is from Japan, YAMAYA brand.
4. What is percentage of your engineering and quality department?
Engineering and Quality department takes 14% of the total employees.
5. If customer tell you: I need PCB copy or PCB design, or PCB re-design service .etc..Can you do it for us?
After carefully evaluating this project, we would like to send you our confirmation: it's without any problem for us to design out this project for you based on our professional & more than 10 years ODM service as long as you offer us business opportunity, we did lots similar job before.. So, pls. send us your specific files to us. The specific files are including:
a, PCB schematic, pls. send it to us,
b, Specific function description
c, 3D drawing of case(case’s 3D drawing include PCB’s structure)
d,Sample
Pls. try to send us your feedback asap, with your answer, we could design out 100% high qualified product for you.
