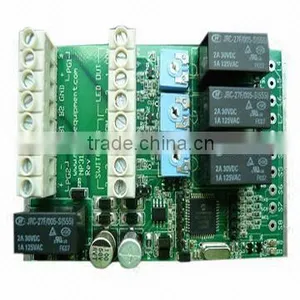

Assembled Pcb Motor Control Pcb

Assembled Pcb Motor Control Pcb thumbnail-1
Assembled Pcb Motor Control Pcb photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
H K T
Model Number:
KT236
Contact Supplier Request Quote Chat Now
Shenzhen Hengkaituo Sci-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name H K T
Model Number KT236
Base Material FR4
Copper Thickness 2oz
Board Thickness 1.5mm
Min. Hole Size Machine Drilling 0.2mm; Laser Drilling 0.1mm
Min. Line Width 3mil
Min. Line Spacing 3mil
Surface Finishing HASL, HASL

Specifications

1. One-stop service over 10 years
2. UL, RoHS, ISO14000 approved
3. 4 times 100% QC inspection testing before Shipping



Looking for Control pcb supplier? You have come to Tier One PCB supplier in China -- H.K.T here,  we have been delivering high quality products to oversea market for over 10 years. Have a try with us, you get professional services, good quality, great price and more! Work with us on new product development, why not? We are right here waiting for you!





Who we are?

DAYEE was established in 2004, an over 10 year PCB manufacturer in Shenzhen

We are 1 Year gold member at Alibaba
We are certified by ISO13485, ISO/TS16949, ULE312264, ISO14001,  ISO9001
70% of our customers are from Russia and North America

We use very good material, such as KB, Shengyi, etc
100% of our prodcuts are tested and 100% pass before delivery
Fast samples for your test
Our customers includin: WAGO, APC, ONIDA, SONOC, etc





What we can do for you?

  1. EMS-Electronic Manufacturing Service

  2. PCB Supply and Layout

  3. PCB Assembly on SMT, BGA and DIP

  4. Cost Effective Components Sourcing

  5. Fast Turn Prototype and Mass Production

  6. Box Build Assembly

  7. Engineering Support

  8. Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)

  9. Logistics and After-sales Service





Manufacturing capability



Specifications

Details

Material Type

FR4, Aluminum, CEM1

Min holes

0.2mm by machine; 0.1mm by Laser Drilling

Layer count

1 to 12 Layers

Max.  PCB Dimension

600x1200mm

IPC Class

Class II, Class III ,  Class 1

Annular Ring

5 mil/side or Greater (Min. Design)

Copper Weight

0.5OZ-4OZ

Trace/Space Width

 3 Mils or Greater

Drill Clearance

0.1mm(laser drilling)

Plated Slots

0.036 or Greater

Smallest Hole (Finished)

0.1mm or Greater

BGA Size

8x6mm~55x55mm

SMD Pitch

0.080” -  0.020” -  0.010”

Soldermask Type

LPI Glossy, LPI-Matte, SR1000

Soldermask Color

Green, Red, Blue, Black, White, Yellow,

Legend Color

White, Yellow, Black, Red, Blue

CNC Route Point

Any

Minimum Route Width

0.031”

Scoring

Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*

Body Gold

HARD*, IMMERSION* (up to 50 MICRON GOLD)

Data File Format

Gerber 274x with embedder aperture

Fab. Drawing Format

DXF, HPGL, DWG, PDF, Gerber

E.T Testing

Flying Probe, Single Sided, 1up Plate, Clampshell, Net List

SMT Efficiency

SOP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA

Control Impedence

Yes

Blind Vias / Buried Vias

Yes

Peelable Mask

Yes

Carbon

Yes

U-BGA ball dia.

0.2mm







Why us?

  *- Providing you 100% good quality product: 4 times 100% QC inspection & AOI X-ray test & FUNCTIONAL testing before Shipping.

 *- Get a competitive price of product to occupy the market based on 100% good quality assurance, our stable components suppliers are Mouser, ARROW electronics, Digikey, RS, etc.

*- Our one stop PCB & PCBA service release your energy to focus on design and marketing.
*- Our professional engineering team can provide you technology support and professional suggestion at any time with more than 10 years working experience.

So, you must win!





Our Products

Assembled Pcb motor control pcbAssembled Pcb motor control pcb

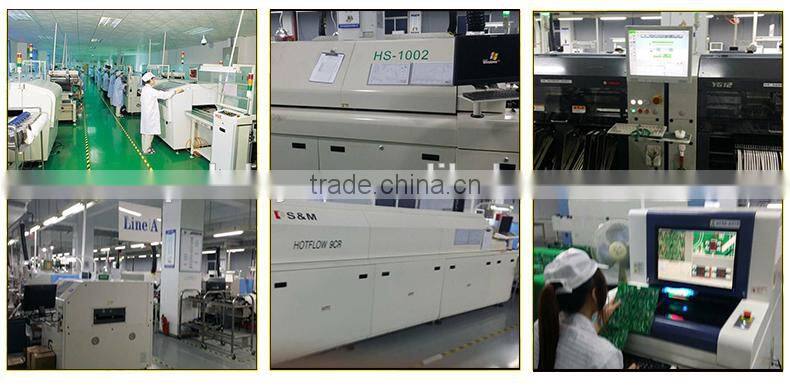

Pcba equipment list:
