Fiberglass insulated Enameled Aluminum round wire for motor

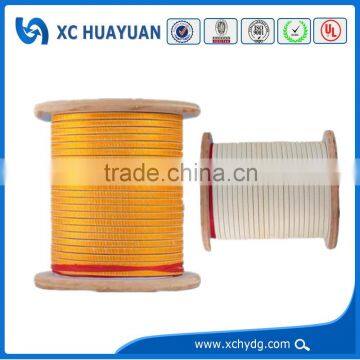

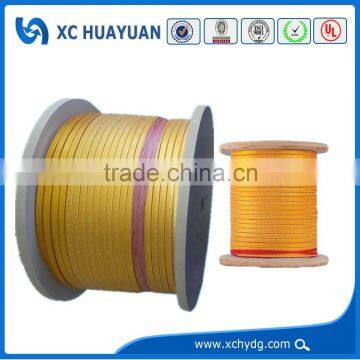

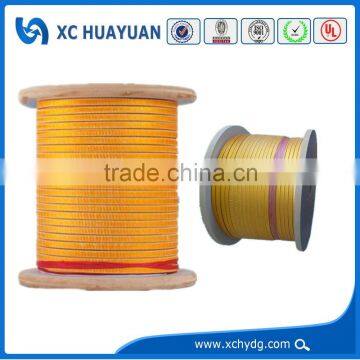

Product detail picture
Main products: Enameled aluminum round wire, enameled aluminum flat wire ,paper covered aluminum wire,paper covered copper wire,3M paper covered aluminum wire, telephone paper covered aluminum wire,Dupont covered aluminum wire,single-layer glass fiber covered aluminum wire, single-layer glass fiber covered copper wire, double-layer glass fiber covered aluminum wire, double-layer glass fiber covered copper wire
Material of Fiberglass insulated Aluminum round wire
1) Bare aluminium wire/copper or squeeze bare flat wire confirm the National standard, smooth surface, low resistance.
2) Good performance Insulation vanish, polyester or polyesterimide insulation vanish as undercoat, Polyamide-imide as top finish.
Specifications of Fiberglass insulated Aluminum round wire
Diameter: a:1-6mm b:3-16mm
Standard: IEC, NEMA, GB
Thermal Class: 130/155/180/200/220 centigrade
Certification: BV, UL Approved,ISO9001, ROHS
Fiberglass insulated Aluminum round wire Performance features
1) High heat resistance
2) Excellent adherence and flexibility
3) Good solvent resistance and electrical properties
4) Excellent mechanical properties
5) Stable performance
Packing about Fiberglass insulated Aluminum round wire
Inner packing: different plastic spool according to wire diameter (Plastic spool of PT-4,PT-10,PT-20,PT-25)
Outer packing: wooden cases or according customers' requirement.
Producing process of Fiberglass insulated Aluminum round wire
wire drawing bare wire payed off
first fiber glass oven second fiber glass
oven take-up finished products
Testing report of Fiberglass insulated Aluminum round wire
Name | fiberglass covered copper wire | ||||
Type | GLEB-0.45155 | ||||
Diameter | 2.24X4.50mm | ||||
Standard | GB/T7672.4 | ||||
Test Item | Unit | Technical requirements | Test Result
| ||
Appearance |
| Bright and clean, uniform color | Ok | ||
Dimensions | Bare Conductor | Narrow side | mm | ----- | ----- |
Broad side | mm | ----- | ----- | ||
Enameled Increase | Narrow side : | mm | ±0.03 | 2.25 | |
Broad side | mm | ±0.05 | 4.51 | ||
Adherence and Flexibility | Winding Test |
| 10b,10a no cracking | OK | |
Adherence Test |
| 10% No Crack, and No losing adhesion | OK | ||
Resistivity(20°C) | Ω. mm²/m | ≤0.017241 | 0.01713 | ||
Elongation | % | A side(mm) ≤2.5 30% >2.5 32% | 42% | ||
Breakdown Voltage at Room Temp. | V | 560 | 804,759,762,688 | ||
Packing |
| Meet the export standard | OK | ||
Test machines for Fiberglass insulated Aluminum round wire
Fiberglass insulated Aluminum round wire Applications
Certifications of Fiberglass insulated Aluminum round wire
Company Environment
XC Huayuan Electric Apparatus Co.Ltd Since 1993
1) The largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters |
2) BV approved professional manufacturer of aluminium wire. We process in high quality only |
| 3) The vanish use is ELANTAS to gurantee the quality |
4) Factory have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification |
| 5) Some of our products are UL listed (OBMW2.E317671) |
| 6) Free samples can be sent to test quality |
Q1. Different thermal class wire, whether their price is the same ? Their price is different based on different thermal class, because the varnish is different. |
Q2. Why we need our customer tell the insulation thickness ? Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC /NEMA. |
Q3. If I order today, how long it takes for the shipment ? If customized order will ship the goods within 5-15days also depend on the quantity. |
Q4. Can u provide customized specifications ? Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm- 5.0mm, Width(b): Φ2-16mm . |
