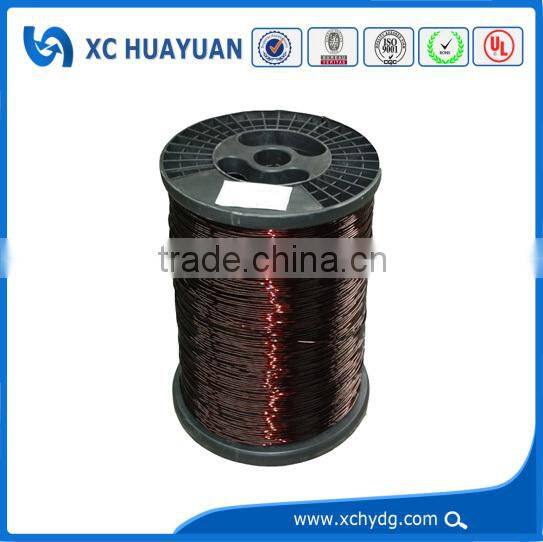

C 200 alambre de aluminio esmaltado
Main products
physical and chemical properties
- High temperature resistance
- Chemical corrosion resistance Transformer oil resistance
- Low temperature resistance Radiation resistance
- High breakdown voltage
- Good mechanical properties
Material

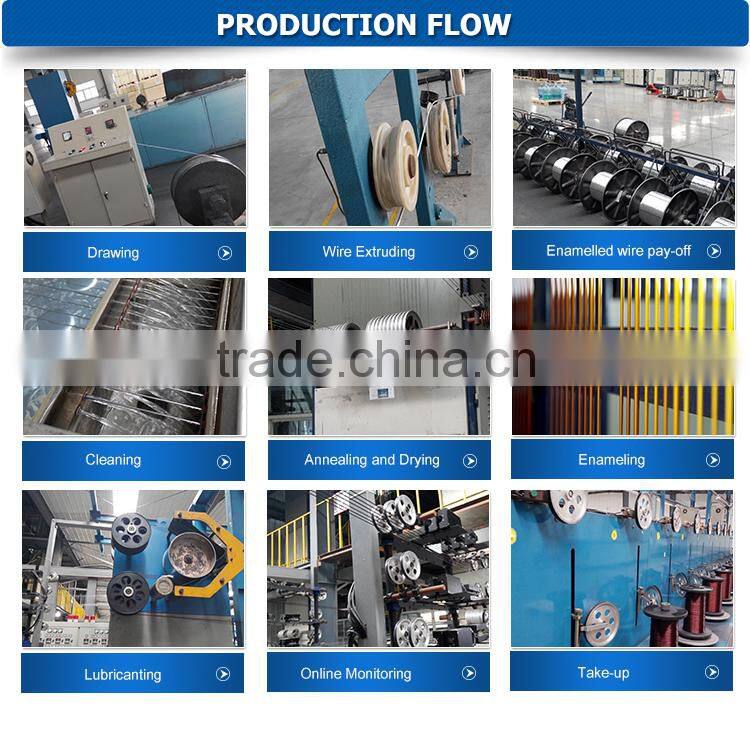

Drawing or extruding bare aluminum wire confirm to national standard, smooth surface, no defects
Product Description |
Class and Grade |
Polyurethane/Polyamide |
Class 180 Grade 1/2/3 |
Polyurethane |
Class 180 Grade 1/2/3 |
Modified Polyester/Polyamide (Nylon) |
Class 180 Grade 1/2/3 |
Modified Polyester/Polyamideimide |
Class 200 Grade 1/2/3 |
Modified Polyester |
Class 200 Grade 1/2/3 |
Modified Polyester/Polyamideimide |
Class 200/Class 220 Grade 1/2/3 |
Test report
Name |
winding wire |
||
Type |
QZYL-2/180 |
||
Diameter |
1.83mm |
||
Standard |
IEC60317 |
||
Test item |
Unit |
Technical Requirement |
Test Result |
Appearance |
|
Bright and clean, uniform color, |
OK |
Overall Diameter |
mm |
<1.939 |
1.93 |
Conductor Diameter |
mm |
±0.018 |
1.84mm |
|
Thickness of Insulation film |
mm |
>0.075 |
0.09 |
Resistance |
Ω/m |
<0.010929 |
0.010619 |
Elongation |
|
>15% |
21% |
Winding test |
|
No cracking |
No cracking |
Tensile test |
|
15% no cracking |
No cracking |
Peel twist |
|
Insulation film without losing adhesion |
OK |
Jerk test |
|
Insulation film without losing adhesion |
OK |
Resistance to heat shock |
C |
200C insulation film no cracking |
Tensing 15% half an hour, no cracking |
Resistance to solvent |
|
Standard solvent “H” Pencil |
2H is ok |
Breakdown voltage |
KV |
5.0 KV |
9.0,10.0,11.0,9.9,10.2 |
Packing |
|
Meet the export standard |
OK |
Quality control result |
|
OK |
|
Packaging and Shipping
We can provide neutral package.or cuatomers special requirement.
Normal Packing as follows:
Inner packing: different plastic spool (PT30 PT 60 PT 200 ) according to wire diameter
Each spool weight is about 12kg,22kg,65kg.
Outer packing: plywood case or according customers' special requirement
Sample shipping time:3-5days
Order and shipping time: negotiate
Sample Arrangement and Customized product
- Free samples
- customized product: We have two editor of GB standard. The customers should paid the mold cost firstly. When the order carry out we will refunded the mold cost
- 20 Years manufacturing winding wire history.
- Perfect certification system include UL,SGS and RoHS.
- Satisfactory usability: Suitable for high-speed automated routing winding.
- We can satisfy the customer special requirement .
Product application
1.power transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments,speakers,
2.Automotive sensors and coils as relais and ignition coils,
3.Generators,dry-type or oil-immersed transformer.
4.Anti-explosion motor,air-conditioner compressor,washing machine.
5.Military and space applications
Xuchang Huayuan Electric Apparatus Co., Ltd. was established in 1993 and we have developed into a professional manufacturer of winding wire and paper covered aluminum wire as well as fiber-glass covered aluminum wire. Our 100,000sqm factory is ISO9001 (00112Q213049R1M/4100) certified, and our products are also UL listed. Our workshop maintains constant temperature and humidity to guarantee the quality.
CERTIFICATION
HONOR
Over 20 years’ experience in winding wire R&D and Manufacturing
[Q] Are you a factory or trading company?
We are a factory.
Our Company’s annual production is about 8,000 tons.
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
we have many kinds of products ,such as winding wire, enameled copper wire, paper covered winding wire, fiber glass covered winding wire and so on.
Gauge of winding wire:Enameled round aluminum wire: 1.0mm-8.0mm Enameled flat aluminum wire: a: 1-10mm, b: 3-16mm.
