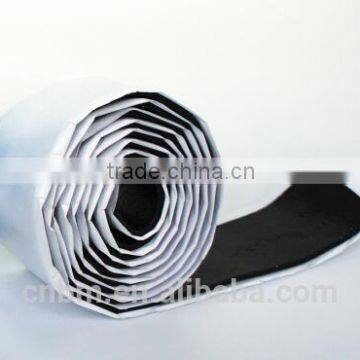

CNBM KC78 Butyl Rubber Electrical Insulation Filler Tape

Description of KC78 Tape

• KC 78 is a self-amalgamating butyl rubber tape used on solid low voltage cable for electrical insulation and in around irregular shaped connectors.

• The tape comes with a separator that is remover during the taping process.

• Its 3.175mm thickness and quick amalgamation facilitates free

insulation build-up that is electrically stable and moisture proof.

• The tape conforms easily using just pressure.

• Once applied KC 78 should be overwrapped with KC 63 vinyl tape or KC 71 high voltage rubber tape.

Dimensions of KC78 Tape
1.5” x .125” x 5'
38mm(width) x 3.175mm(Thickness) x 1.5m(length)
Consult us for other sizes

Specifications of KC78 Tape

Applications of KC78 Tape

• Electrical insulation of splices and other connections on low voltage cable

• Filing in around split bolt and other irregular shaped connectors

• Padding bus-bar connections

• Moisture sealing high voltage splice ground leads

• Other moisture proofing applications
