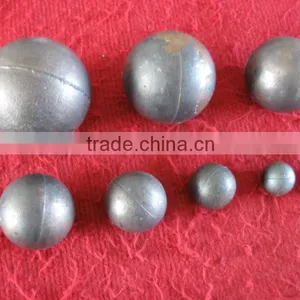

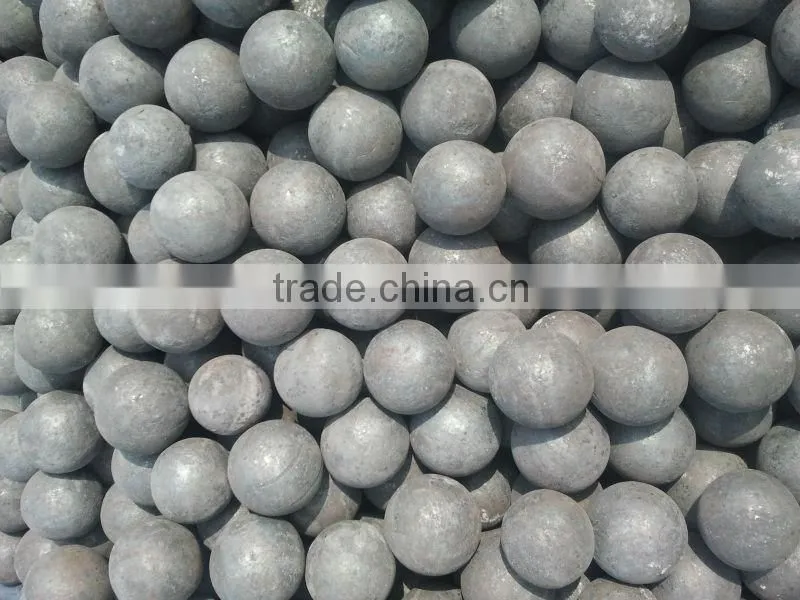

1.Feature of High Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing
1) In general, grinding steel ball has high hardness: surface hardness to 58-65 HRC, volume hardness of 56-65 HRC
2) impact toughness high: impact toughness more than 12 J / cm2.
3) broken rate is low: the actual broken rate is not higher than 0.5%.
2.Chemical Composition of High Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing
Item |
Chemical Composition(%) |
|||||||||
C |
Si |
Mn |
Cr |
P |
S |
Mo |
Cu |
Ni |
||
|
CMAX 13Cr |
2.0-3.0 |
≤0.10 |
0.5-1.5 |
10-14 |
≤0.10 |
≤0.10 |
1.0Max |
2Max |
0-1.5 |
|
High chrome cast grinding balls |
CMAX 17Cr |
2.0-3.0 |
≤0.10 |
0.5-1.5 |
14-17 |
≤0.10 |
≤0.10 |
3.0Max |
1 Max |
0-1.5 |
|
CMAX 20Cr |
2.0-2.8 |
≤0.10 |
0.5-1.5 |
18-22 |
≤0.10 |
≤0.08 |
2.5 Max |
1 Max |
0-1.5 |
|
|
CMAX 26Cr |
2.0-2.8 |
≤0.10 |
0.5-1.5 |
22-28 |
≤0.10 |
≤0.08 |
3 .0Max |
2 Max |
0-1.5 |
|
3.Specification of High Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing
Nominal Diameter |
Diameter Tolerance |
Weight of Single Ball |
Numbers of Per Ton |
(mm) |
(mm) |
(g) |
32150 |
20 |
+2 -1 |
32 |
15625 |
25 |
64 |
9090 |
|
30 |
110 |
5645 |
|
40 |
263 |
3802 |
|
50 |
513 |
1949 |
|
60 |
+3 -2 |
888 |
1126 |
70 |
1410 |
709 |
|
80 |
2104 |
485 |
|
90 |
2996 |
333 |
|
100 |
4110 |
243 |
|
110 |
+4 -2 |
5457 |
182 |
120 |
7102 |
140 |
|
130 |
9030 |
110 |
|
140 |
11279 |
88 |
|
150 |
13871 |
72 |
4.Specification of High Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing
Size: 20mm-150mm
Hardness:HRC58-65; Chrome content:11-14%
5. About the Hardness of High Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing:
How hard is hard? The illustrations shown below tell an interesting story. Illustration ‘A’ shows an analysis of the cross sectional hardness of The Steel Ball Company’s ‘thru hard’ ball. Illustration ‘B’ below shows the same analysis carried out on a ball from another major grinding media manufacturer. The ball in illustration ‘B’ has the same AVH figure as The Steel Ball Company’s ball and will wear out at the same time. Yet there the similarity ends. After three quarters of the radius, the hardness of the ‘B’ ball dips below that of The Steel Ball Company’s ball. This brings into focus the area of greatest discussion about using AVH values. Over 72% of the final value is made up from the surface and 3/4 radius hardness readings. So AVH tells us relatively little about how a ball is going to perform once it has worn past that stage.
The cross sectional hardness profile tells the full ‘inside story’.
Q What kind of performance will the ball in illustration ‘B’ below give?
A Once the ball has worn down to approximately 2/3 diameter, the remainder will wear away very quickly.
Q How will this affect the mill output?
A The rapidly wearing grinding media will give rise to an unstable and imbalanced ball charge, resulting in the possibility of more than one top up size being required to ensure the correct mesh of grind.
Q How will The Steel Ball Company’s ball perform?
A The cross sectional hardness profile shows that The Steel Ball Company’s ‘thru hard’ ball will wear evenly throughout its life. This will give a better size distribution in the mill, and avoid ‘dead zone grinding’. The shape of the ball will be preserved for much longer, giving a far more efficient grind. The conclusions are obvious. High quality such as The Steel Ball Company offers always saves money in the long run. AVH =0.289 x Surface Hardness (S) + 0.437 x Hardness 3/4 R + 0.203xHardness 1/2 R + 0.063 x Hardness 1/4R + 0.008 x Centre Hardness (C)

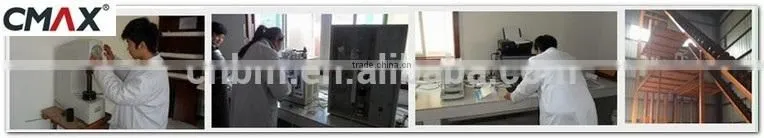

6. Assurance & Testing High Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing:
*The each melt will be analyzed for Chemical Composition;
*The hardness will be measured on 5 balls selected at random from each heat treatment batch;
*Two ball at least will be selected randomly from each heat treatment batch for micro-examination;
*The diameter test and all the above mentioned test will be showed and carried out on the templates;
* Sand and Slag inclusion will not existed ;
* Depth of defect is more than 2mm will not existed;
* Mismatch per face is more than 1.0mm will not existed ;
* All casting balls will be properly fettled,tumbled and dressed,all surface shall be thoroughly cleaned .
7. Instructions ofHigh Chrome Alloy Cast Grinding Ball with High Hardness Low Breakage for Mineral Processing:
When using CMAX products,please pay attention to the following items:
1.Due to different inner structures and hardness of similar products made by different companies, please don’t mix our products with those of other companies,or it will be subject to deformation.
2.Please control the grain size of raw materials and the proportion of grinding materials to grinding
medias.Unreasonable proportion is bad for the use of our products.
3.When using the products,please do not pursue product fineness at the cost of reducing the output .
Otherwise ,our products will be exfoliated and out of shape.
4.In the process of using our products,the mill could not be opened or stopped frequently,or operated
without any materials in it.Before putting the casting balls into the container,please put some materials
in the lowest floor in case of breakage,clashing and so on.
5.Open the door of the mill at first and pour the balls out when the temperature in the mill falls down .
6.If you find something unusual in the process of using,please contact us immediately and we will arrive
on the spot as soon as possible.80mm C
ast Steel Grinding Balls
8. Company information:
CNBM International Corporation, as one of the largest manufacturer of grinding balls and also the affiliated company of CNBM Group, which has list as one of the 500 Global Fortune 500 companies since 2011 to 2014.
Using high quality special steel as raw material, the characteristics of our grinding balls are proud of high hardness, well abrasive resistance, non-deformation, low breakage lower than 1%.
We sincerely welcome partners all over the world to establish long business cooperation with us on the basis of mutual trust, benefit and development.
