PP/PET needle punched geotextile

Specifications

PP/PET needle punched geotextile
1) Weight: 100-800g/m2
2) Thickness: 0.9m- 5.0mm
3)Material:PP or PET
4)Width:50-660cm

 PP/PET needle punched geotextile



1)Material:PP/ PET (Polypropylene/Polyester)

1) Weight: 100--800g/M2

2) Thickness: 0.9mm TO 5.0mm

3) Width:50-660cm

4) Applications: construction, water conservancy, railway, road, dam bridge, waste treatment, enclosed sea to make farmland, sap projecte

Aplications



1.Filtration

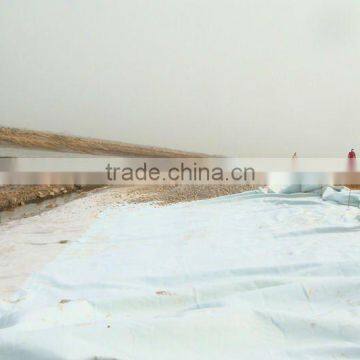

The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2 Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3 Adding muscle: The highway, railway, soilstone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.

4 Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from beined away.



PET filament needle punched nonwoven geotextile parameters

	100	150	200	250	300	350	400	450	500	600	800	NOTE
BASIS WEIGHT TOLERANCE (%)	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
THICKNESS ≥MM	0.9	1.3	1.7	2.1	2.4	2.7	3.0	3.3	3.6	4.1	5.0
TENSILE STRENGTH AT BREAKING ≥KN/m	2.5	4.5	6.5	8.0	9.5	11.0	12.5	14.0	16.0	19.0	25.0	MD&CD
CBR PLUNGER STRENGTH ≥KN	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4.0
TEARING STRENGTH ≥KN	0.08	0.12	0.16	0.20	0.24	0.28	0.33	0.38	0.42	0.46	0.60
BREADTH TOLERANCE (%)	-0.5
ELONGATION AT BREAKING (%)	25-100											MD&CD
EOS O90mm	0.07-0.2
VERTICAL PERMEABILITY (CM/S)	K×(101~~103)											K=1.0-9.9
