SINOLIFT CYTS Series Double Scissors Platform Hand Truck
1) Features of Platform Hand Truck
- Valuable material handling for use as a feeding table on assembly line.
- Structural heavy duty steel construction.
- Easy action foot operated hydraulic lift for raising table top to desired level.
- Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
- Hand operated table descent control.
- Over load by-pass valve protects operator and pump.
- Option: chrome plated handle, painted handle, folding handle & solid handle.
2) Specification Data of Platform Hand Truck
Model |
|
CYTS100 |
CYTS350 |
CYTS750 |
Load Capacity |
kg |
100 |
350 |
750 |
Max. Height |
mm |
1260 |
1300 |
900 |
Min. Height |
mm |
270 |
350 |
420 |
Table Dimension |
mm |
700x450x35 |
910×500×52 |
1000×510×55 |
Handle Height |
mm |
875 |
970 |
1000 |
Stroke to Max. Height |
stroke |
≤55 |
≤55 |
≤55 |
Wheel Diameter |
mm |
127 |
127 |
150 |
Packing Size |
mm |
820x460x340 |
1010×530×390 |
1190×630×460 |
Self-Weight |
kg |
54 |
110 |
112 |

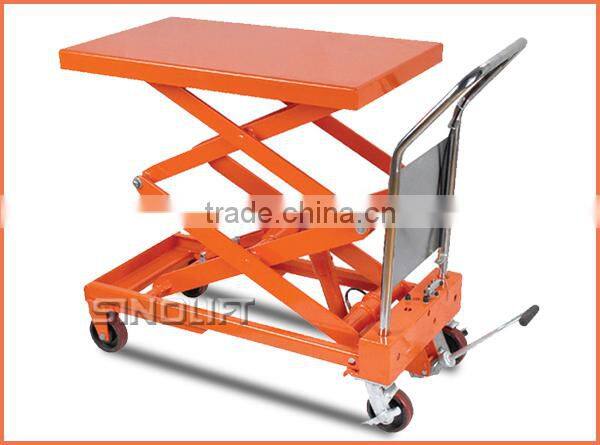

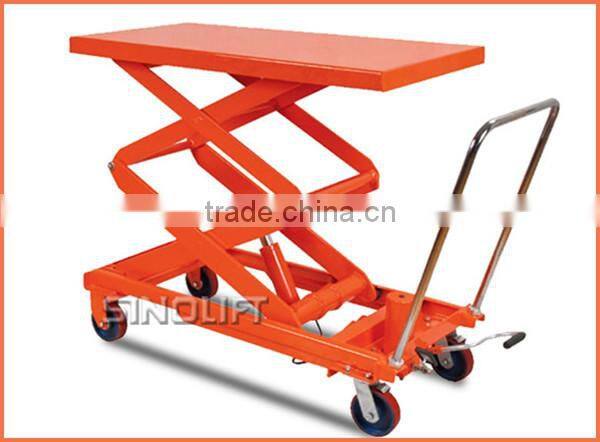

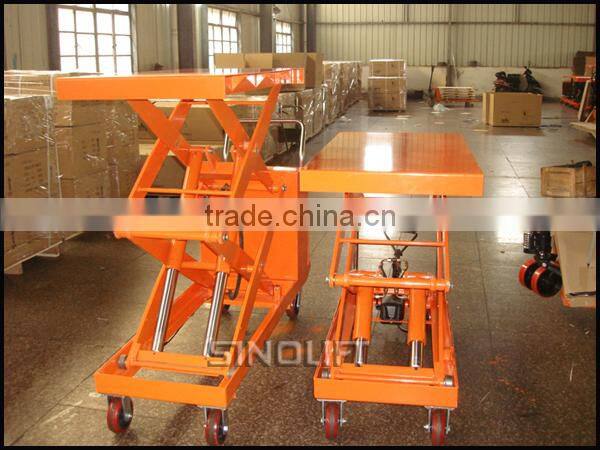

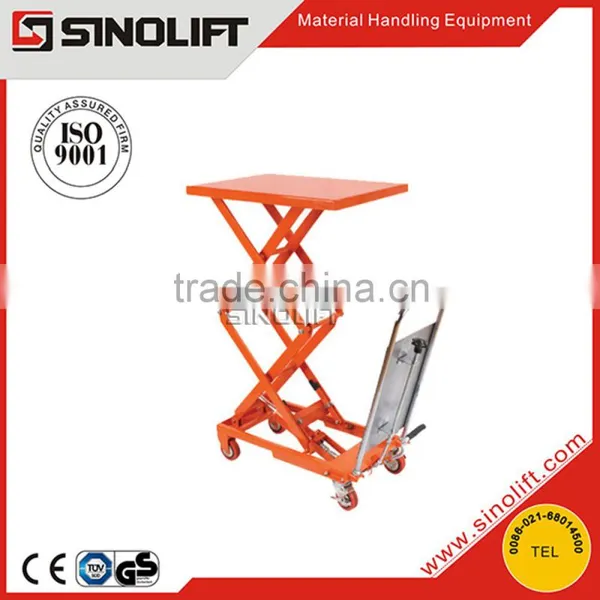

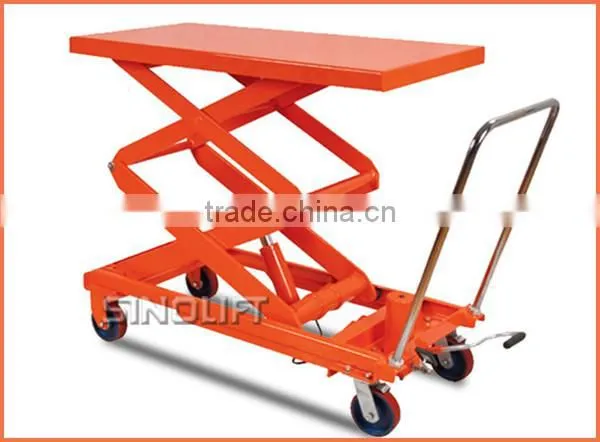

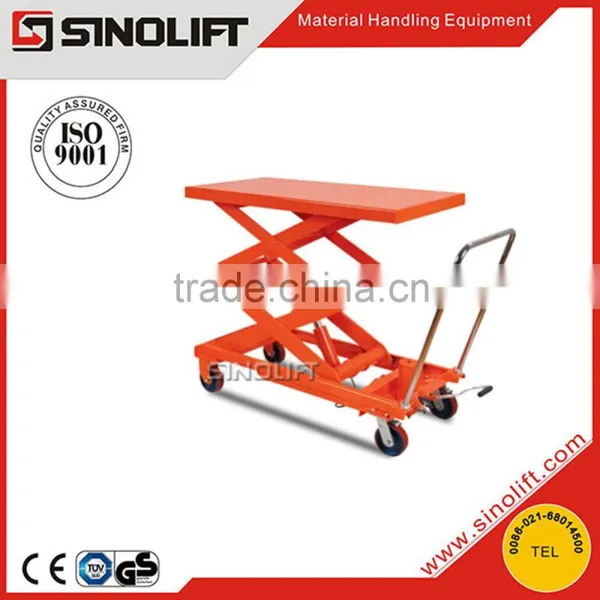

3) Photos of Platform Hand Truck

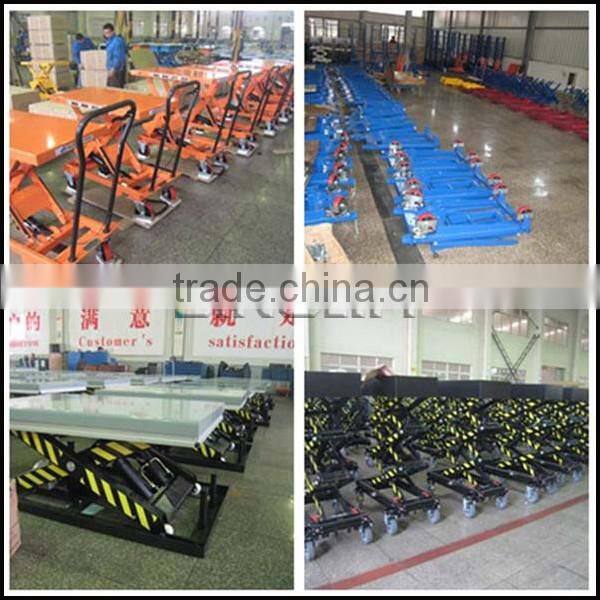

4) Workshop Platform Hand Truck
5)Certificate Platform Hand Truck
6)Terms and Service Platform Hand Truck
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
7) Warranty Policy and service program Platform Hand Truck
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.
8) Why choose us? Platform Hand Truck
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
