Specifications
Electric Lift Table1. Load Capacity: 500-3000kg.
2. Vertical travel: 500-2000mm.

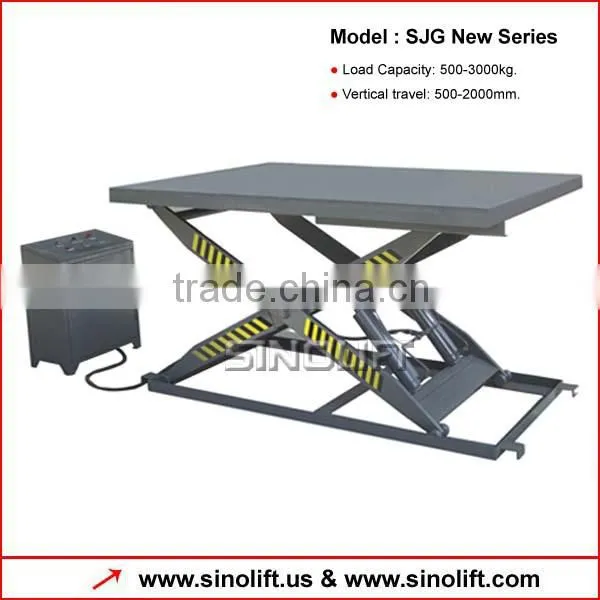

SJG New Series Electric Cargo Lift Table
1) Features
SJG is widely used in assembly lines, automation production lines to solve the problem of height difference of working levels. Choose as the job requires different table tops with gravity or powered conveying rollers, transferring balls, rum table or special additional device or control modes to make the loads transferred between different heights with Proper vertical travel for fluent lifting.
- Equipped with imported brand-famed hydraulic system, it can work stably and reliably, with less noise.
- It is strong in cargo capacity and stable in operation.
- Equipped with fork-type boxing yokes, it has a high safety coefficient.
- Safe and reliable, it is easy to operate and service.
- It can also be custom-made as per special specifications.
2) Specification Data
Model |
Rated capacity |
Vertical travel |
Min height |
Platform size |
Lifting time |
Power |
NW |
kg |
m |
m |
mm |
s |
kw |
kg |
|
SJG0.5-0.5 |
500 |
0.5 |
0.215 |
900x600 |
20 |
1.1 |
180 |
SJG0.5-1 |
500 |
1 |
0.23 |
1550x700 |
25 |
1.5 |
250 |
SJG0.5-2 |
500 |
2 |
0.3 |
2900x800 |
40 |
2.2 |
560 |
SJG1.0-0.8 |
1000 |
0.8 |
0.25 |
1350x700 |
25 |
1.5 |
350 |
SJG1.0-1.5 |
1000 |
1.5 |
0.25 |
2400x1000 |
38 |
2.2 |
750 |
SJG1.0-2 |
1000 |
2 |
0.3 |
2900x1000 |
60 |
2.2 |
920 |
SJG2.0-1 |
2000 |
1 |
0.3 |
1600x1000 |
25 |
3 |
580 |
SJG2.0-1.5 |
2000 |
1.5 |
0.3 |
2200x1200 |
30 |
3 |
790 |
SJG2.0-2 |
2000 |
2 |
0.35 |
2900x1200 |
40 |
3 |
1050 |
SJG3.0-1.5 |
3000 |
1.5 |
0.3 |
2200x1500 |
45 |
3 |
1100 |
SJG3.0-2 |
3000 |
2 |
0.35 |
2900x1500 |
60 |
3 |
1400 |
** Spercial size stationary hydraulic table can be produced accordding to customer's requirement. | |||||||

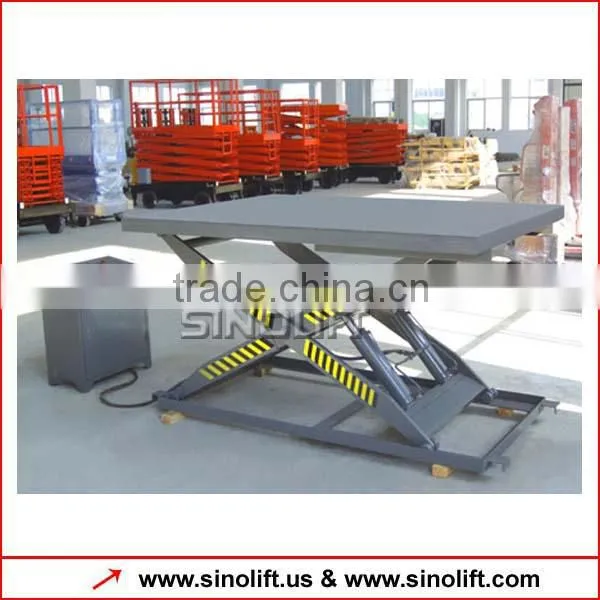

3) Photos
4) workshop:
5) terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
