Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > SJT Series Electric Cargo Lift Table

SJT Series Electric Cargo Lift Table

Name: SJT Series Electric Cargo Lift Table
Brand: SINOLIFT
SKU: 132451301
Availability: InStock

SJT Series Electric Cargo Lift Table thumbnail-1

SJT Series Electric Cargo Lift Table photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

SJT Series

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number SJT Series

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Power 15kw, 1.5~15kw

Rated Loading Capacity 200~3000kg

Min. Lifting Height 0.91m

Max. Lifting Height 7.31m

Table Size 7.0*4.0*2.6m

Overall Dimensions 7.0*4.0*3.2m

Weight 620~8500KG

Certification GS TUV CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

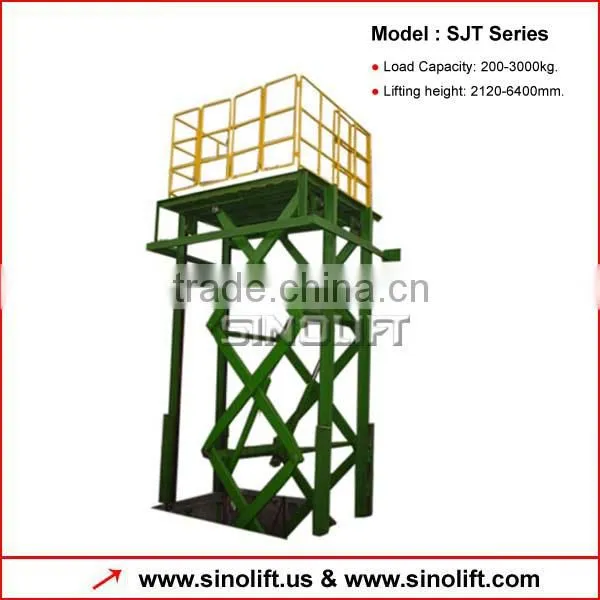

SJT Series Electric Cargo Lift Table
1. Load Capacity: 200-3000kg.
2. Lifting height: 2120-6400mm.

SJT Series Electric Cargo Lift Table

1) Features

Hydraulic lift freight elevator is a multi-storey warehouse dedicated send and receive goods hydraulic lift. The design and production has been in accordance with customer requirements specifications. It's carrying capacity, built-oriented agencies to ensure stable balance of his rise. The freight elevator installation and easy operation and reliable freight elevators family are another advantages.It is the best alternative products in the factory warehouse.

2) Specification Data

Model	Rated	Stoke	Min.	Max.	Platform	Lifting	Power	Weight
	capacity	Stoke	height	height	size	time	Power	Weight
	kg	m	m	m	m	s	kw	kg
SJT0.2-4	200	4	0.742	4.742	1.1×0.87	41	1.5	620
SJT0.5-4	500	4	0.75	4.75	2.3×0.92	30	3	1400
SJT0.9-0.12	900	2.12	0.438	2.558	1.76×0.84	41	1.5	1000
SJT1.0-2.7	1000	2.7	0.45	3.15	2.5×1.6	27	5.5	1800
SJT1.0-3.0	1000	3	0.782	3.782	1.6×1.2	29	5.5	1600
SJT1.0-3.3	1000	3.3	0.632	3.932	1.38×1.08	48	3	920
SJT1.0-4.0	1000	4	0.755	4.755	2.2×1.8	48	5.5	1900
SJT1.0-4.8	1000	4.8	0.782	5.582	2.0×1.5	50	3	2000
SJT1.0-6.3	1000	6.3	0.836	7.136	3.0×2.385	96	5.5	3280
SJT1.0-7.9	1000	7.9	0.984	8.884	2.2×1.8	80	5.5	3100
SJT1.8-2.12	1800	2.12	0.44	2.56	1.76×0.84	27	3	1200
SJG2.0-2.7	2000	2.7	0.643	3.343	1.6×1.4	40	3	1300
SJT2.0-3.7	2000	3.7	0.616	4.136	2.0×1.2	46	5.5	1300
SJT2.0-4.2	2000	4.2	0.967	5.167	1.65×1.5	81	3	1800
SJT2.0-4.5	2000	4.5	0.85	5.35	2.5×2.2	64	5.5	3300
SJT2.0-6.3	2000	6.3	0.918	7.218	2.8×2.0	96	5.5	3400
SJT3.0-4.5	3000	4.5	0.85	5.35	4.5×2.16	95	5.5	3000
SJT3.0-6.3	3000	6.3	1.14	7.44	4.5×1.5	59	15	5000
SJT3.0-6.4	3000	6.4	0.91	7.31	7.0×4.0	56	15	8500

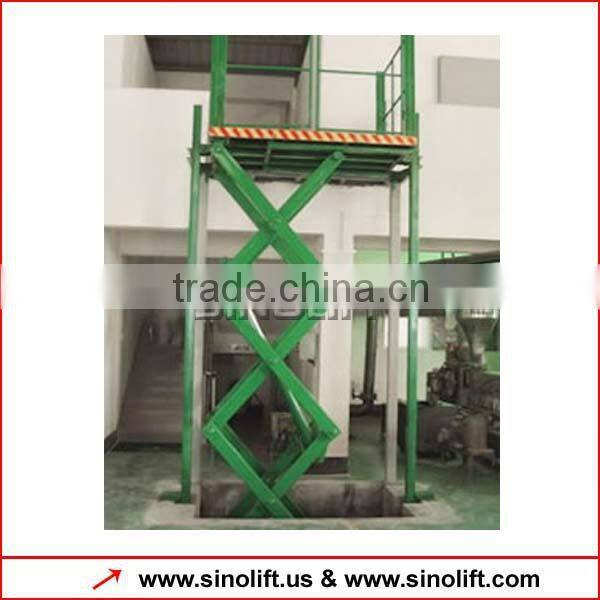

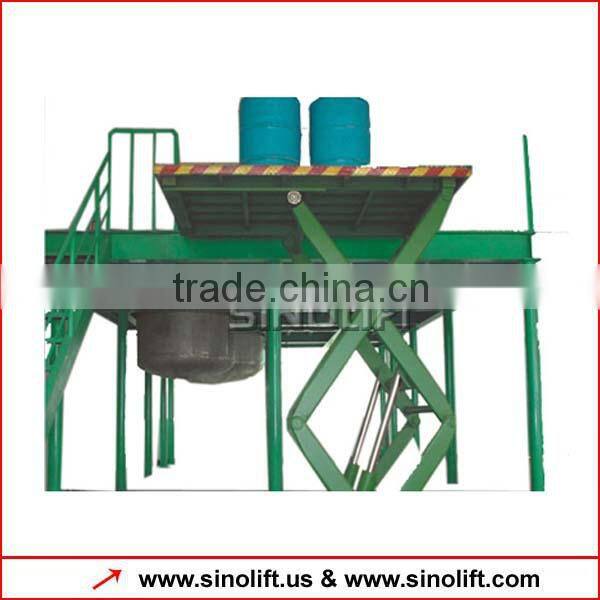

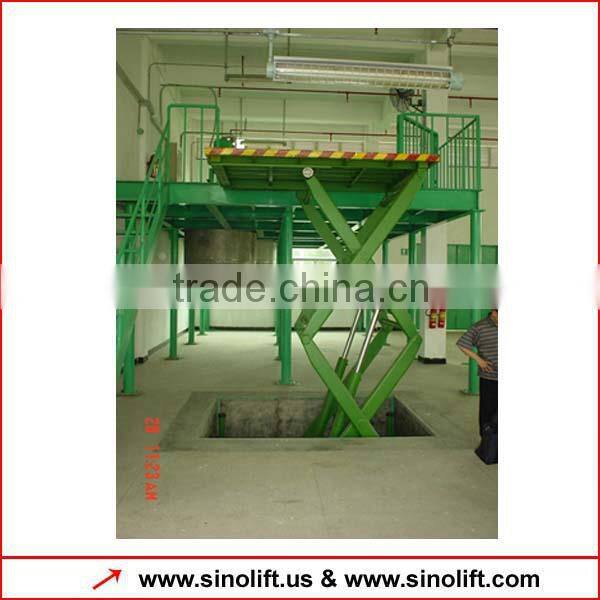

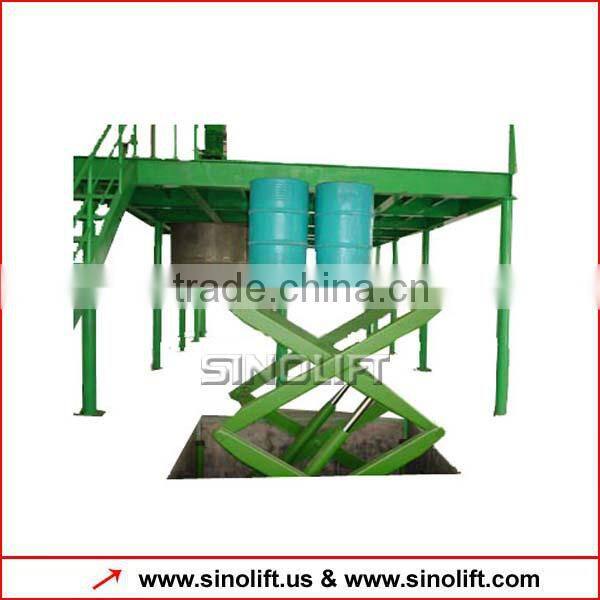

3) Photos

4) workshop:

5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
