Specifications
Scissor Lift Table1. Load Capacity: 1000-5000kg.
2.Table Dimensions: 820x1300-1500x2500mm.
3. Max Height: 1000-2000mm.
ET Series Heavy Duty Scissor Lift Table
1) Features
Standard Safety Features:
- Upper platform fitted with aluminum safety bar preventing descent on contact with obstructions;
- Low-tention (24V) control box with up-down buttons;
- Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed;
- Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of horse burst;
- Safety clearance between scissors to prevent trapping during operation.
Other Standard Features:
- Self lubricating bushings on pivot points;
- Removable lifting eye to facilitate handling and lift table installation.
2) Specification Data
| Model | ET1001 | ET1002 | ET2001 | ET2002 | |
| Rated Capacity | kg | 1000 | 1000 | 2000 | 2000 |
| Min.Height of Table | mm | 205 | 205 | 230 | 230 |
| Max.Height of Table | mm | 1000 | 1000 | 1050 | 1050 |
| Table Dimensions | mm | 820x1300 | 1000x1600 | 850x1300 | 1000x1600 |
| Weight | kg | 160 | 186 | 235 | 268 |
| Packing Dimensions | mm | 1310x820x210 | 1610x1010x210 | 1310x860x240 | 1610x1010x240 |
| Model | ET4001 | ET4002 | ET5001 | ET5002 | |
| Rated Capacity | kg | 4000 | 4000 | 5000 | 5000 |
| Min.Height of Table | mm | 240 | 240 | 500 | 500 |
| Max.Height of Table | mm | 1100 | 1100 | 1600 | 2000 |
| Table Dimensions | mm | 1200x1700 | 1200x2000 | 1220×2440 | 1500x2500 |
| Weight | kg | 375 | 405 | 520 | 590 |
| Packing Dimensions | mm | 1710x1210x250 | 2010x1210x250 | 2450x1230x280 | 2510x1510x280 |

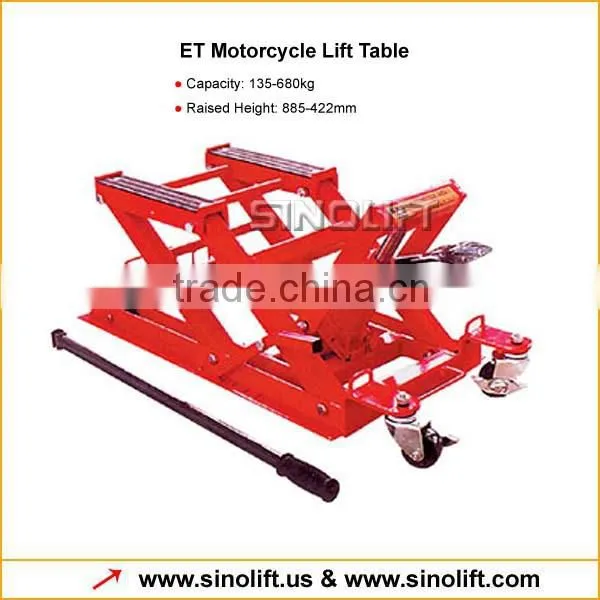

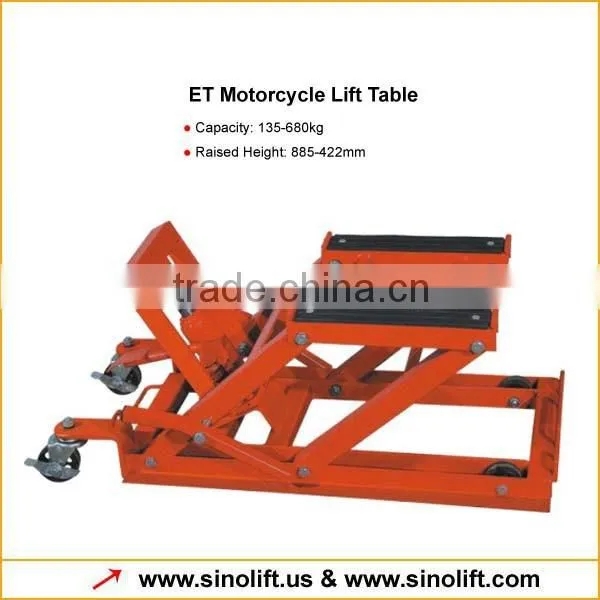

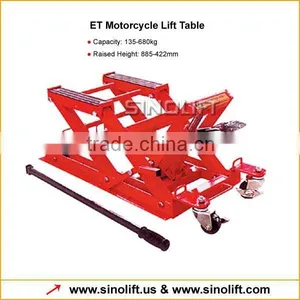

3) Photos
4) workshop:
5) terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
7) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
