ETY Series Low Profile Lift Table

Name: ETY Series Low Profile Lift Table
Brand: SINOLIFT
SKU: 132451149
Availability: InStock

US$ 1,000 - 2,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

ETY Series

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number ETY Series

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Weight 357-419kg

Specifications

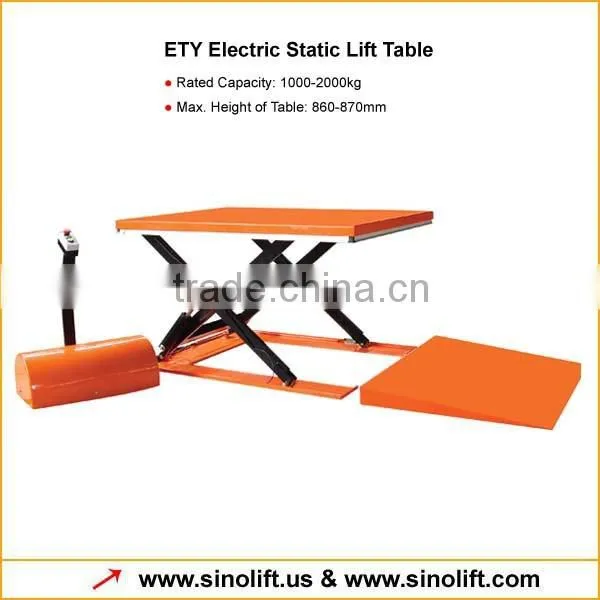

ETY Series Low Profile Lift Table
1. Load Capacity:1000-2000kg.
2. Platform Size: 1450x1140-1600x1200mm.

ETY Series Low Profile Lift Table

1) Features

- Heavy duty design with larger platform
- These tables achieve a low closed height, eliminating the need for a pit installation
- They are manufactured to all European safety standards including EN1570:1999
- Remote power pack with pedestal and controls, protected to IP54
- Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
- 24V control box with UP and DOWN buttons and emergency stop
- External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply is AC 380V/50HZ/3phase
- Hose burst safety valve to stop the lift table lowering in case of hose breakage
- Removable lifting eyes to facilitate handling and installation of the lift table
- Oils bushings on pivot points
- Loading ramp is standard equipment

2) Specification Data

Model		ETY1001	ETY1002	ETY1501
Rated Capacity	kg	1000	1000	1500
Min. Height of Table	mm	85	85	105
Max. Height of Table	mm	860	860	870
Table Dimension	mm	1450x1140	1600x1140	1600x800
Weight	kg	357	364	362

Model		ETY1502	ETY2001	ETY2002
Rated Capacity	kg	1500	2000	2000
Min. Height of Table	mm	105	105	105
Max. Height of Table	mm	870	870	870
Table Dimension	mm	1600x1000	1600x1000	1600x1200
Weight	kg	401	405	419

3) Photos

4) workshop:

5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.

7) Why choose us?

1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.

2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.

3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.

4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.

5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.

6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
