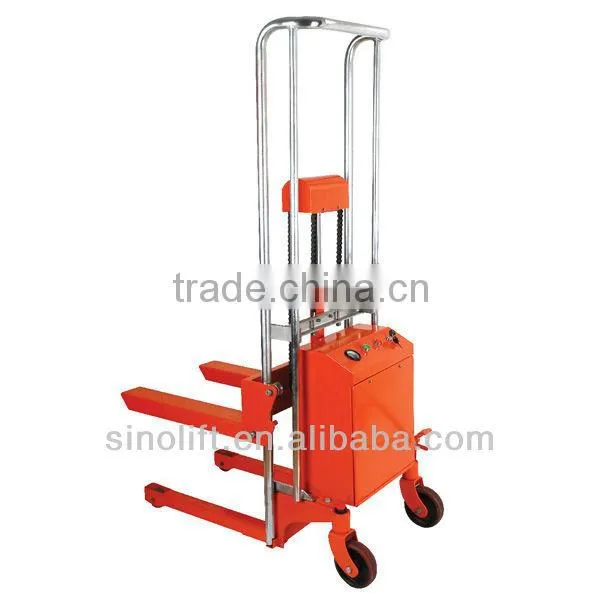

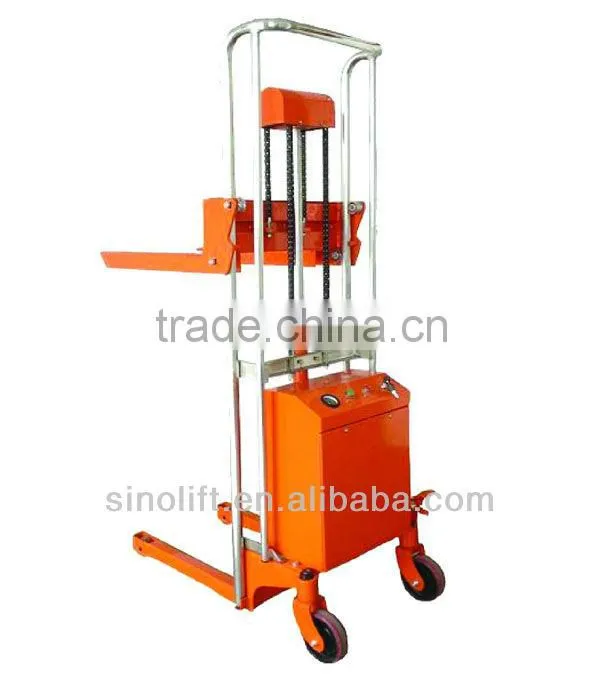

TFD Electric Platform Truck
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SINOLIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shanghai, China
Brand Name
SINOLIFT
Model Number
TFD
Dimension(L*W*H)
1020*560*1080
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1)Simple and easy operation2) Lifting movement via collapsible foot pedal
3) Sensitive lowering through sinking valve
SINOLIFT hand platform stacker features Easily lift and transport loads. And those stackers are designed to be used at industrial sites, in commercial applications, warehouses and other storage systems, offices.
1)Simple and easy operation
2) Lifting movement via collapsible foot pedal
3) Sensitive lowering through sinking valve
4) Hand push drive
5) Overload protection via pressure valve
| Model | TFD20-85 | TFD20-120 | TFD40-85 | TFD40-120 | TFD40-150 | |
| Capacity | (kg) | 200 | 200 | 400 | 400 | 400 |
| Min. Fork Height | (mm) | 80 | 80 | 80 | 80 | 80 |
| Max. Fork Height | (mm) | 850 | 1200 | 850 | 1200 | 1500 |
| Forkv Length | (mm) | 600 | 600 | 650 | 650 | 650 |
| Adjustable Fork Width | (mm) | 215-500 | 215-500 | 235-500 | 235-500 | 235-500 |
| Single Fork Width | (mm) | 100 | 100 | 110 | 110 | 110 |
| Dia of Front Wheel | (mm) | ø75 | ||||
| Dia of Steering Wheel | (mm) | ø125 | ||||
| Chassis Height | (mm) | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 |
| Power Pack Motor | (KW) | 0.7 | ||||
| Battery | (V/Ah) | 12/60 | 12/60 | 12/70 | 12/70 | 12/70 |
| Overall Length | (mm) | 1020 | 1020 | 1100 | 1100 | 1100 |
| Overall Width | (mm) | 560 | 560 | 590 | 590 | 590 |
| Overall Height | (mm) | 1080 | 1435 | 1060 | 1410 | 1710 |

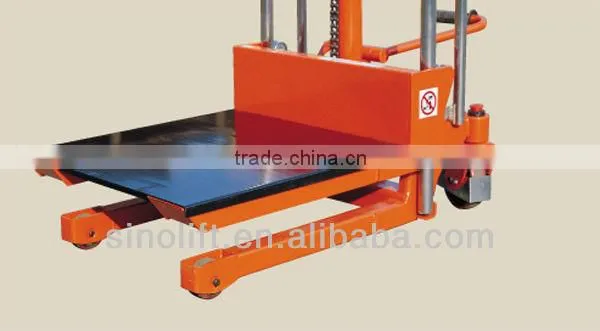

| Option Platform | (mm) | LP10(610 x 530) | LP20(660 x 580) | |||
| Net weight | (kg) | 90 | 97 | 105 | 116 | 122 |
| Minimum Qty. | (pcs) | 2 | 2 | 2 | 2 | 2 |
