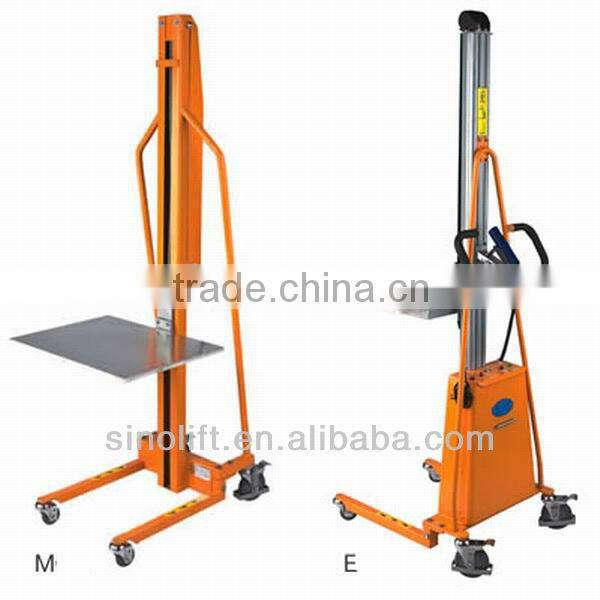

Help CenterMEM Work Postioner
Related Products
Specifications
1.Manual available as100kg/ 200Kg capacity2.Electric as 100Kg/150kg capacity
Provide cost effective lifting and positioning.
Compact, lightweight and very manoeuvrable
Perfect to assist personnel in compliance with The Manual Handling Directive
Manual model operated with winch fitted with auto brake
Electric model fitted with auto overload protection, maintenance free sealed battery charger
Manual available as100kg/ 200Kg capacity
Electric as 100Kg/150kg capacity
Electric lift and lower buttons can be left mounted or can be hand held
Mounted on four swivel castors
Strongermotor,Largerbattery12Ah,Lowvoltageprotection.
Arangeofhighlymanoeuvrable,lightweightlifts,designedtotakethestrainoutanyliftingjobfromgroundleveltoover
shoulderheight.
Idealforuseinnarrowaislesandconfinedspaces.
Perfectforallapplicationsfrompharmaceuticaltocatering,frompackinglinetofoodprocessing,fromwarehousetooffice,
kitchens,laboratories,retailoutlets,etc...

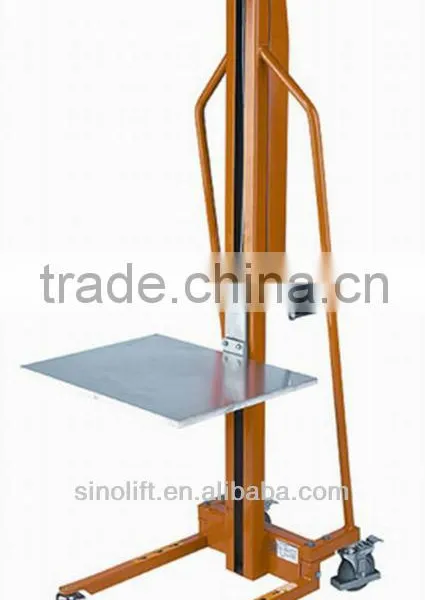

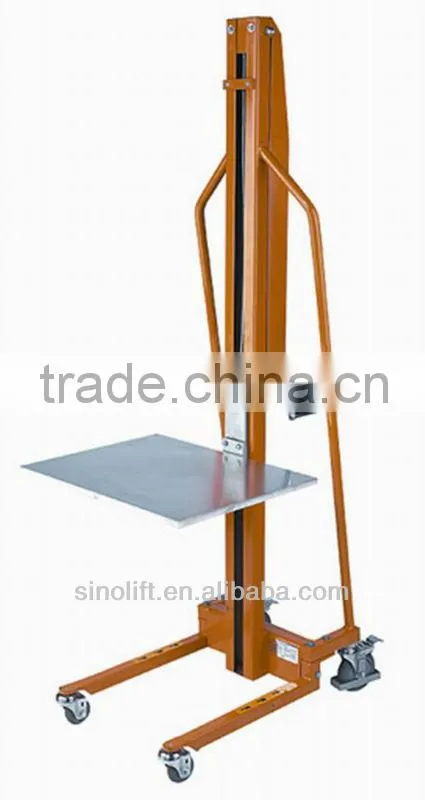

Manualmodels:Operatedviaamanualhandwinch.
Autobrakesystempreventsuncontrolledlowering.
Electricmodels:Automaticelectronicoverloadprotectionsystemensuressafety.
Maintenancefreeandsealedbatteries,automaticcharger.
Quickchangeattachmentoptionsavailable.
ConformstoEN1757,CEmarked.
| Model | M100 | M200 | E100 | E150 | E100 A | E150A |
| Type | Manual | Electric | ||||
| Capacity (kg) | 100 | 200 | 80 | 150 | 100 | 150 |
| Load centre (mm) | 235 | 235 | 235 | 235 | 235 | 235 |
| Min.Height (mm) | 1500 | 1500 | 1500 | 1500 | 1700 | 1500 |
| Max.Height (mm) | 130 | 130 | 130 | 130 | 130 | 130 |
| Platform size (mm) | 470X600 | 470X600 | 470X600 | 470X600 | 470X600 | 470X600 |
| Overall size mm | 840X600 | 870X600 | 870X600 | 870X600 | 870X600 | 870X600 |
| X1830 | X1920 | X1990 | X1790 | X1990 | X1790 | |
| Load wheel (mm) | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 | Φ75 |
| Steering wheel (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Battery service free | -- | 24v,12Ah | 24v,12Ah | 24v,12Ah | 24v,12Ah | |
| Net Weight (kg) | 50 | 60 | 66 | 63 | 66 | 63 |
