CPD-SX Full Electric Counter Balance Stacker

Name: CPD-SX Full Electric Counter Balance Stacker
Brand: SINOLIFT
SKU: 132449477
Availability: InStock

CPD-SX Full Electric Counter Balance Stacker thumbnail-1

CPD-SX Full Electric Counter Balance Stacker photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CPD-SX

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CPD-SX

Condition New

After-sales Service Provided Engineers available to service machinery overseas

CPD-SX Full Electric Counter Balance Stacker

1)Features

- The non-starddle lift is ideal for feeding machinery or lifting to docks and mezzanines where base legs could interfere.

- Heavy-duty mast can been adjusted to suitable degree.

- Forged fork for easy access.

- Powerful drive and power unit made in Europe.

2)Specification Date

Model				CPD10SX	CPD12SX
Drive Unit				Electric
Operation type				Pedestrian
Load capacity		Q	kg	1000	1200
Load center		C	mm	400
Overall length		L	mm	2295
Overall width		b	mm	842
Overall height		H2	mm	1860
Lift height		H	mm	2500
Max working height		H1	mm	3275
Free lift height		H3	mm	140
Fork dimensions		L1×b2×m	mm	800×100×32
Maximum fork width		b1	mm	220~540
Minimum ground clearance		m1	mm	80
Min. aisle width for stacking		Ast	mm	2680(for Pallet 1200×800)
Mast obliquity		α/β	°	1/7
Wheelbase		Y	mm	1130
Front overhang		X	mm	120
Turning radius		Wa	mm	1380
Travel speed	loaded		Km/h	5.7
	unloaded		Km/h	6.3
Lift speed	loaded		mm/s	100
	unloaded		mm/s	140
Lowering speed	loaded		mm/s	181
	unloaded		mm/s	175
Gradeability			%	5
Brake type				Electric-magnetic
Drive motor power			KW	1.2
lift motor power			KW	2
Battery capacity/voltage			Ah/V	240/24
Weight without battery			kg	1235
Battery weight			kg	235

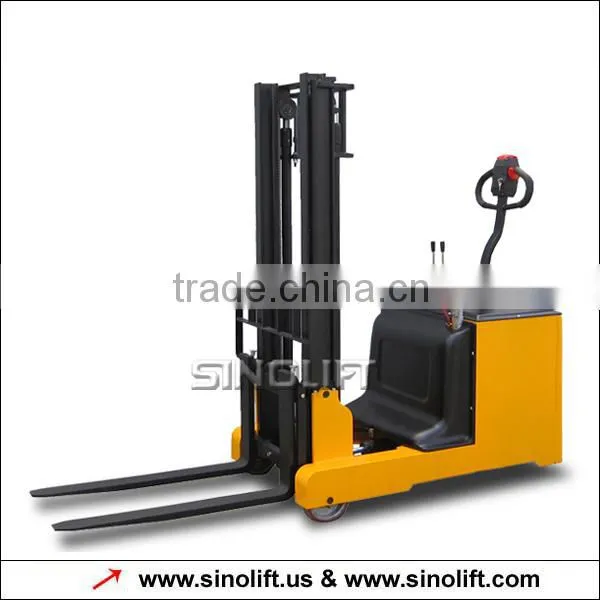

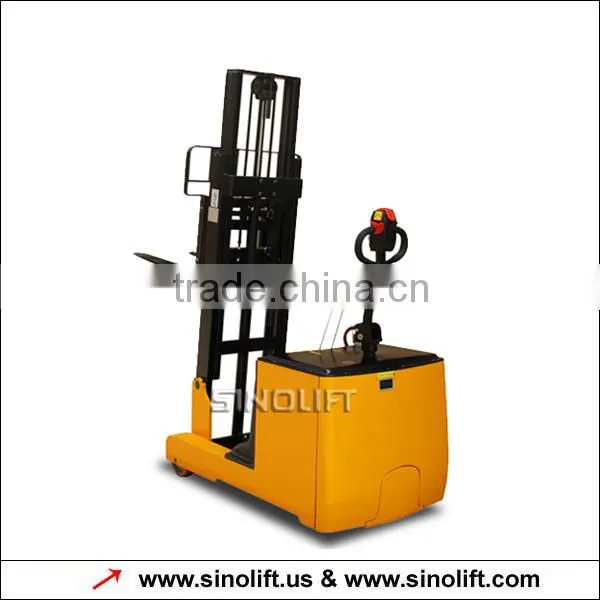

3)Photos

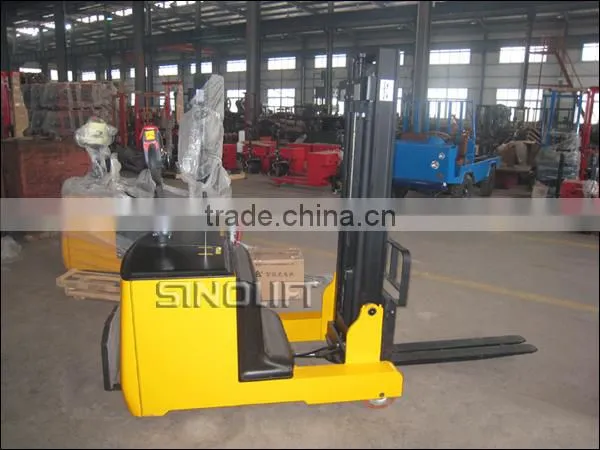

4)Workshop

5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.

6)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express

7) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
