2015 SINOLIFT Brand New CPD-F Series Three wheels Electric Forklift DC for Sale
1) Features of Three wheels Electric Forklift
- The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.The engine hood has functions of sound absorption and heat isolation.
- Rear in-built dual lifting cylinder is used,wide visual view,safety operation and high efficiency.
- A hydraulic converter produced by introduction of japanese technology,high efficiency,no oil leakage,reliable work,compact structure of hydraulic transmission,shift gear valve,micromotion valve,characterized by smooth starting,stepless speed adjustmet,micromotion and acceleration performance.
- Full hydraulic steering gear,transverse cylinder,steering axle integrated into one body,flexible steering,compact structure and convenient repair.
- Adjustable driver’s seat,reducingoperation fatigue to a maximum extent.Tilt lifting steering wheel and new type multifunc-tional panel fully represents harmony between the machine and human.
- Imported sealing parts are used in the cylinder,cone sealing used in fittings,good sealing performance,long service life;multiple reversing valve with automatic tilt locking device,advanced strudture to meet safety requirement.
- Big power and free-maintenarting battery with American technology,small volume,good performance,long storage period;general contactor arranged in the electric circuit,prolong life of the key switch,completely removing self-discharge.
- Beautiful appearance,quick and smooth lifting,high high productivity,it is an ideal loading and unloading machin for stations,ports,docks,warehouse,warehouse,airports and factories etc which need low noise and small smoke.
2) Specification of Three wheels Electric Forklift
| Model | CPD-0.5F | CPD-0.75F | CPD-1.0F | CPD-1.5F | ||
| Capacity Q | kg | 500 | 750 | 1000 | 1500 | |
| Load Center © | mm | 400(500) | 400(500) | 400(500) | 500 | |
| Lifting Height h3 | mm | 3200 | 3200 | 3200 | 3000 | |
| Free Lifting Height h2 | mm | 1600 | 1600 | 1600 | 1500 | |
| Fork Length | mm | 800(1000) | 800(1000) | 800(1000) | 1000(1150) | |
| Fork Sideswith | mm | 100 | 100 | 100 | 100 | |
| Type of Lifting | Electric Hydralic | |||||
| Speed of Lifting | mm/sec | >200 | >200 | >200 | >230 | |
| Speed of Lowering | m/min | adjustable | ||||
| Title of mast α/β | < | 2° /5° | 2° /5° | 2° /5° | 2° /5° | |
| Height of Mast Lowered h1 | mm | 2080 | 2080 | 2080 | 2180 | |
| Height of Mast Extended h4 | mm | 3680 | 3680 | 3680 | 3780 | |
| Height of Overhead Guard | mm | 1900 | 1900 | 1900 | 1980 | |
| Height of Seat from Ground | mm | 850 | 850 | 850 | 900 | |
| Length of the face of fork | mm | 1260 | 1260 | 1350 | 1738 | |
| Overallwidth | mm | 800 | 800 | 800 | 1018 | |
| Thread (Front wheel) | mm | 860 | 860 | 950 | 853 | |
| Thread (Rear wheel) | mm | 940 | 940 | 1030 | 1188 | |
| Wheelbase | mm | 660 | 660 | 660 | 740 | |
| Ground Clearance | mm | 90 | 90 | 90 | 90 | |
| Turing Radius | mm | 1150 | 1150 | 1240 | 1500 | |
| Min. Right angle aisle width | mm | |||||
| Steering System | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
| Type of Drive | Electric Motor | |||||
| Drive speed(load/unload) | km/h | 6.5/7.8 | 6.3/7.3 | 6.0/7.0 | 6.0/7.0 | |
| Speed Control | MOFSET | |||||
| Gradeability | % | 8 | 8 | 8 | 8 | |
| Driving brake | Hydraulic Brake System | |||||
| Parking brake | Hand Brake | |||||
| Battery | 24v | D-210 | D-280 | D-320 | D-400 | |
| Weight of battery | kg | 240 | 320 | 390 | 420 | |
| Weight of truck | kg | 1250 | 1380 | 1550 | 2650 | |
| Driving Motor | kw | 3 | ||||
| lifting motor | kw | 5 | ||||
| Wheel (front/rear) | Solid Rubber | |||||
| Dimension of Front Wheel | φ267x127x165.1 | φ267x127x165.1 | φ267x127x165.1 | φ330x127x165.1 | ||
| Dimension of Drive Wheel | φ267x127x165.1 | φ267x127x165.1 | φ267x127x165.1 | φ330x127x165.1 | ||

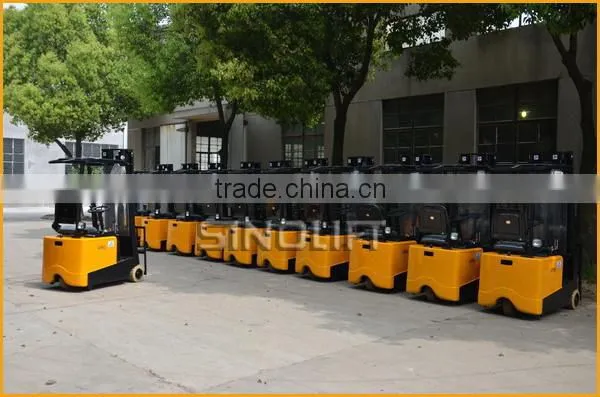

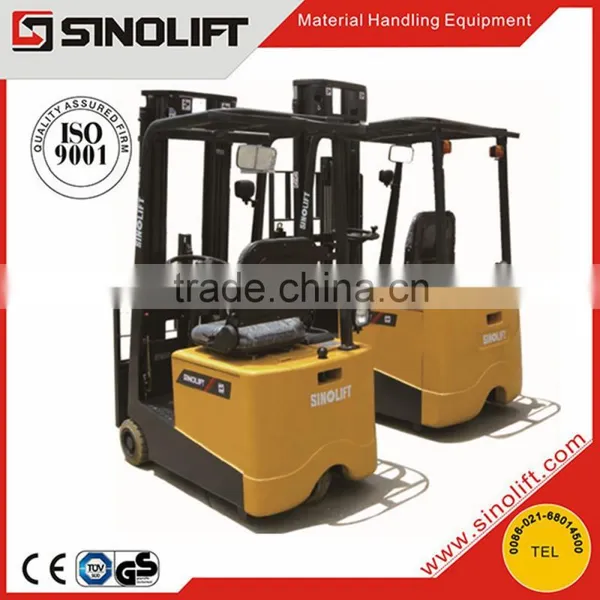

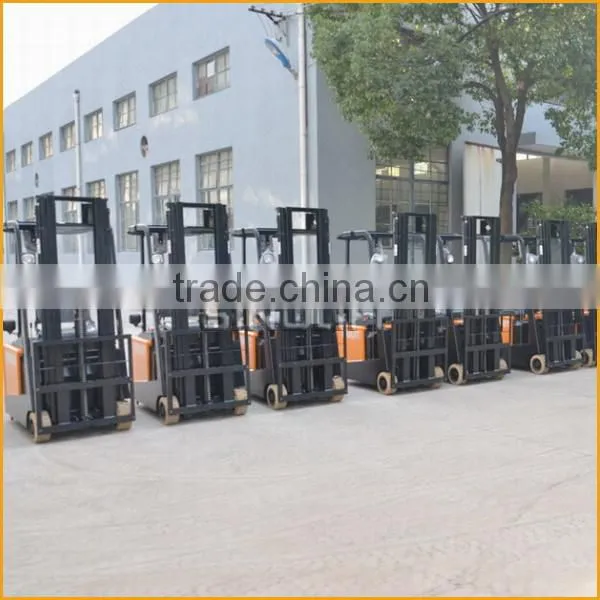

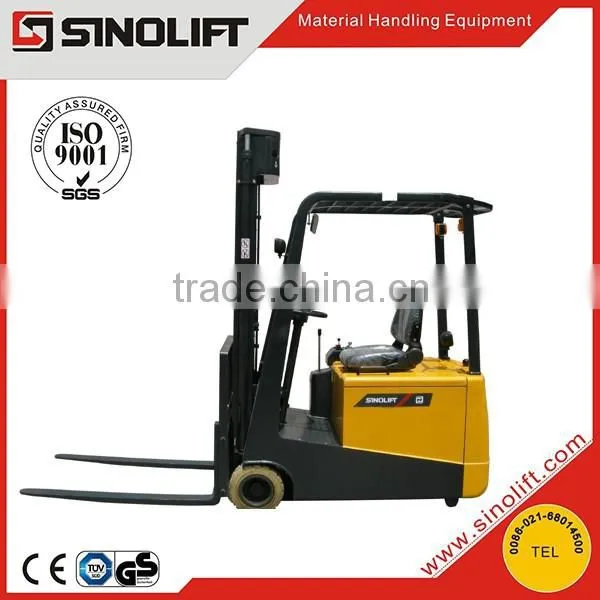

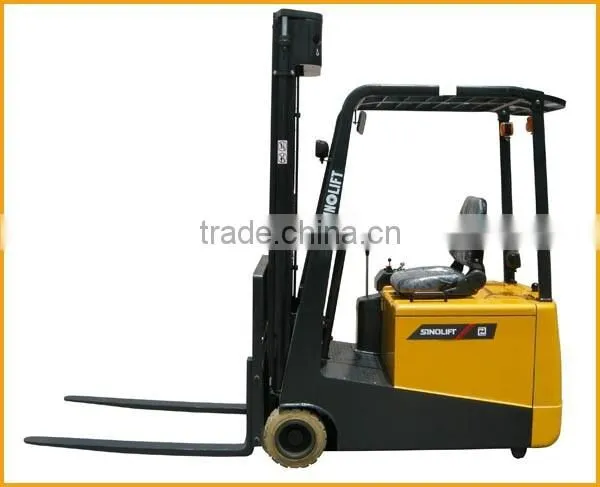

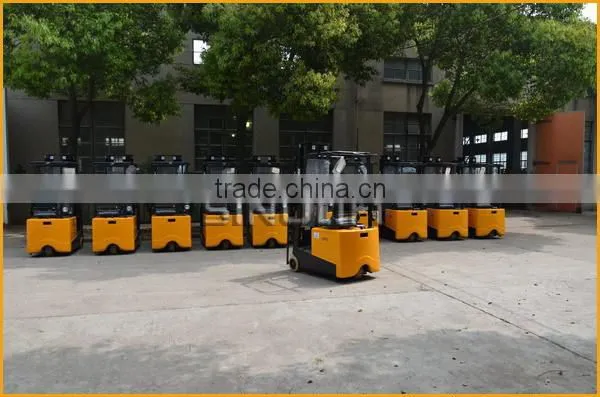

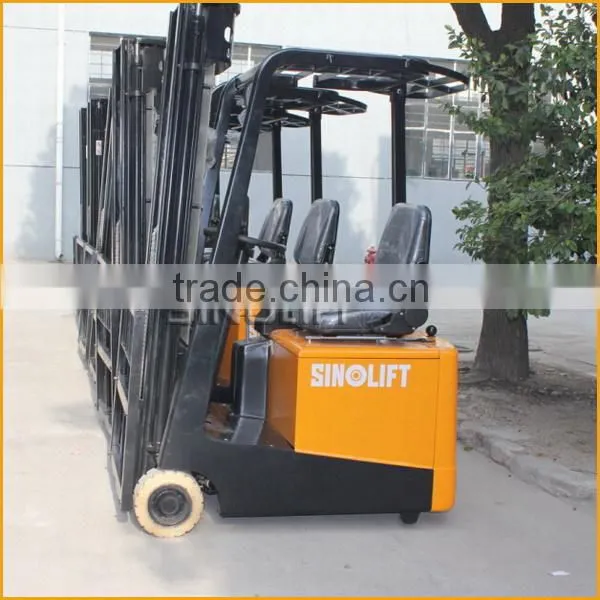

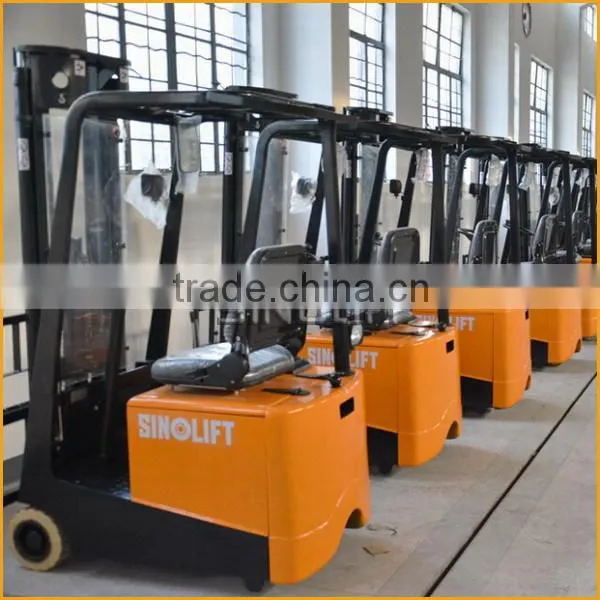

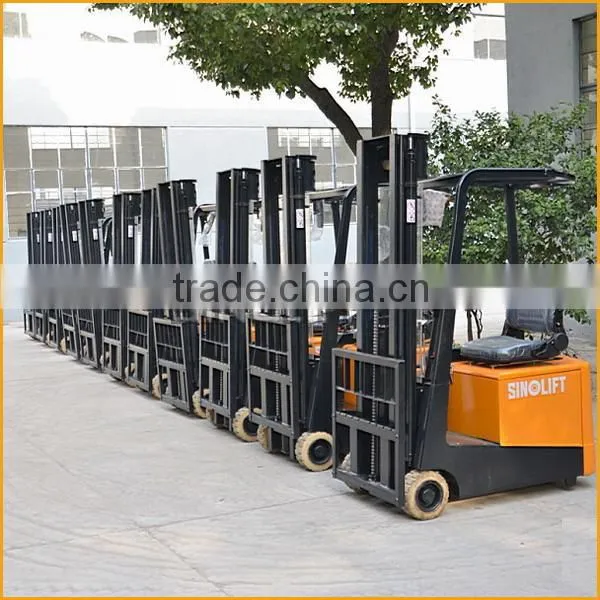

3) Photos of Three wheels Electric Forklift
4) Forklift Family
5) Workshop
6) Parking and Loading into Container
7) Certificates
8) terms and service:
9) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.
10) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
