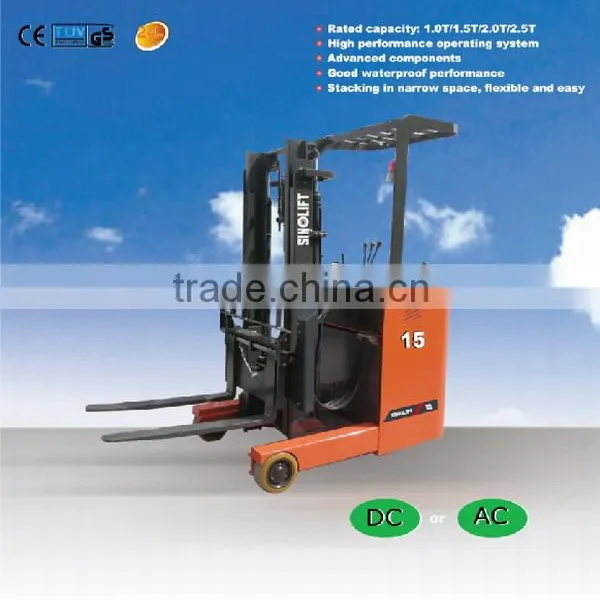

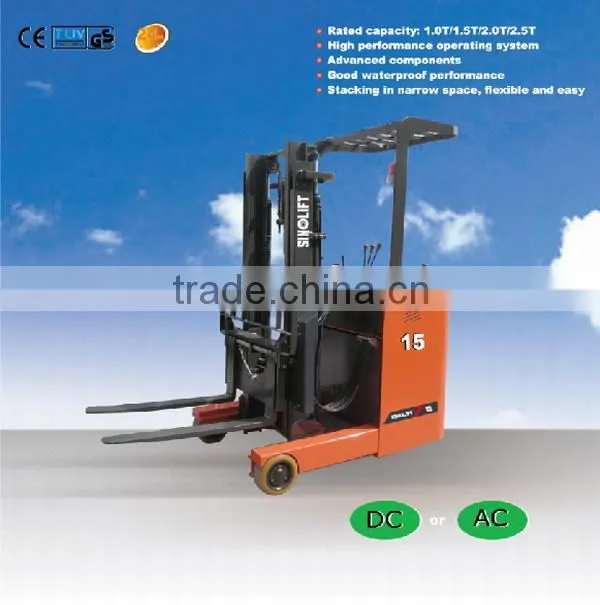

CQD-F Series Electric Reach Truck

CQD-F Series Electric Reach Truck thumbnail-1
CQD-F Series Electric Reach Truck photo-1
US$ 13,700 - 16,250 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SINOLIFT
Contact Supplier Request Quote Chat Now
Shanghai Sinolift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name SINOLIFT
Model Number CQD-F
Power Souce DC Motor
Rated Loading Capacity 1000kg ~2500kg
Max. Lifting Height 7200mm
Fork Length 1070mm
Fork Width 100mm
Certification CE ,TUV, ISO,GS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

CQD-F series Electric Reach Truck
1.Load capacity: 1000~2500kg
2.Max lifting height: 3000~7200mm

CQD-F series Electric Reach Truck



1)Feature

# 1.0/1.5/2.0/2.5T Electric Reach Truck

The relaxed work brings the high efficiency.
- Field of vision broad mast.
-The intelligent dynamic system provides the safe movement.
-Engineer may through forklift's on diagnosis connection read performance data.Causes the adjustment forklift performance parameter, the foresighted maintenance and the fast repair becomes very convenient..
-The forklift must maintain the gap to amount to for 1000 hours.
-Man-machine work efficiency. The set exercises the control, the choice of direction, the auto reversal applies the brake the multi-purpose operating handles, cause the operation to be more precise, the efficiency is higher, the pilot fatigue is lowest.
- Leans the station operation, as well as the layout reasonable operating handle, reduces the pilot body movement, reduces wearily. The LDC controller may realize the stepless change.
-The compact body design, unifies the rear wheel drive to change, causes can also operate in the narrow space freely.
-Three set of independent brake ways do not change with the snapping back hydraulic pressure unify, cause the steering control to be more precise.



2)Specification Data

Model   CQD15-30F CQD20-30F CQD25-30F
Load capacity kg 1500 2000 2500
Load center mm 500 500 500
Max. lifting height mm 3000 3000 3000
Tilting angle(forward-backward)   3/5 3/5 3/5
Wheel type   Polyurethane
Mast forwarding length mm 560 685 685
Fork size(LxW) mm 1070*100*35 1070*100*45 1070*100*45
Width of forks mm 662 780 780
Overall length mm 2266 2468 2468
Overall width mm 1098 1258 1258
Overall height(mast closed) mm 2260 2260 2260
Overall height(fork raised) mm 3885 3875 3875
Overhead guard height mm 2260 2260 2260
Side shifter spread(option) mm 50 50 50
Outside turning radius mm 1625 1965 1965
Ast(pallet size:1000*1000) mm 2662 2895 2895
Max. walking speeds km/h 7.5/8.5 7.0/8.0 7.0/8.0
Lifting speeds(load/unload) mm/s 117/243 110/243 110/243
Grade abitity                  % ≤10 ≤10 ≤10
Driving wheel mm Φ343*108
Front wheel mm Φ267*114
Balance wheel mm Φ180*76
Min.under-clearance mm 80
Service brake   Mechanica
Parking brake   Mechanical
Battery V/Ah 48/300 48/400 48/400
Charger V/A 48/40 48/50 48/50
Driving motor kw 5.5(AC) 5.5(AC) 5.5(AC)
Lifting motor kw 6.3 7.5 7.5
Total weight( with battery) kg ~2300 ~2600 ~2600
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only . For further information ,please contact us.

High mast parameter
Mast Full free Lifting height Lowered height of mast Free lift Loading capacity @ MAX. height
height CQD15 CQD20

NO 4000mm 2620mm 0mm 1000kg 1300kg
Triplex YES 5000mm 2340mm 1670mm 900kg 1100kg
YES 5500mm 2450mm 1850mm 800kg 1000kg
YES 6000mm 2680mm 2000mm 700kg 900kg
YES 6500mm 2880mm 2200mm 600kg 800kg
  7200mm 3090mm 2400mm 500kg 700kg

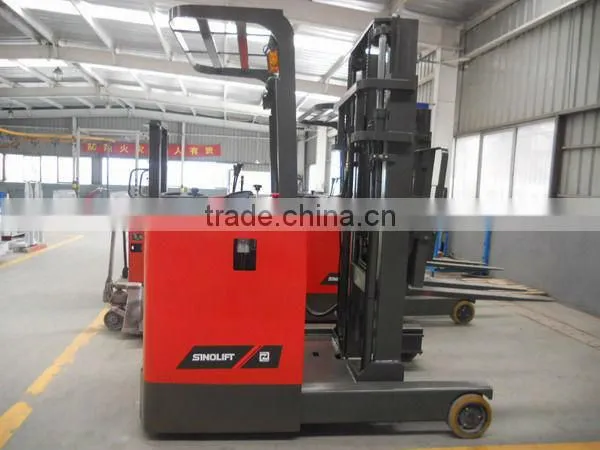

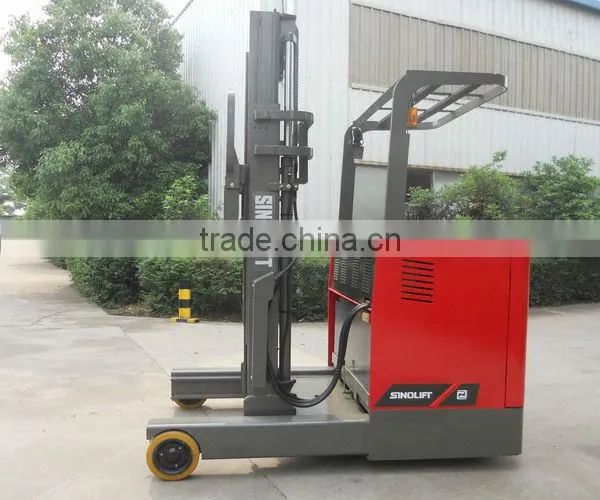

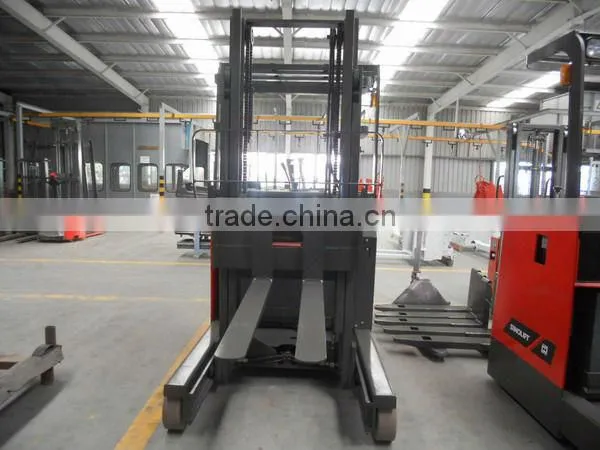

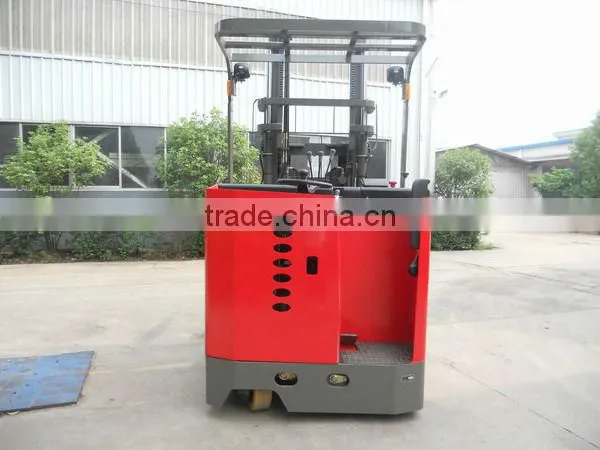

3.PHOTOS

CQD-F series Electric Reach Truck

 CQD-F series Electric Reach Truck

CQD-F series Electric Reach TruckCQD-F series Electric Reach TruckCQD-F series Electric Reach Truck

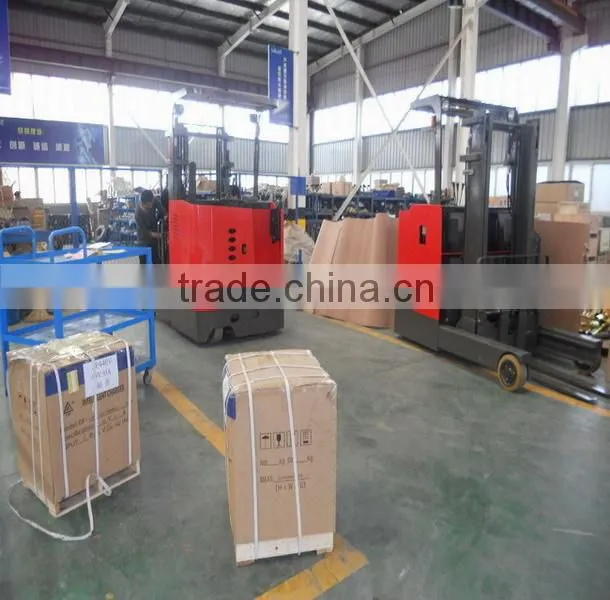

4)Workshop



CQD-F series Electric Reach Truck



5. Certificate:



Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.



6.Warranty Policy and service program.



SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.



SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
