Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Sinolift AS Series Fixed Type Skates

Sinolift AS Series Fixed Type Skates

Name: Sinolift AS Series Fixed Type Skates
Brand: SINOLIFT
SKU: 132439943
Availability: InStock

Sinolift AS Series Fixed Type Skates thumbnail-1

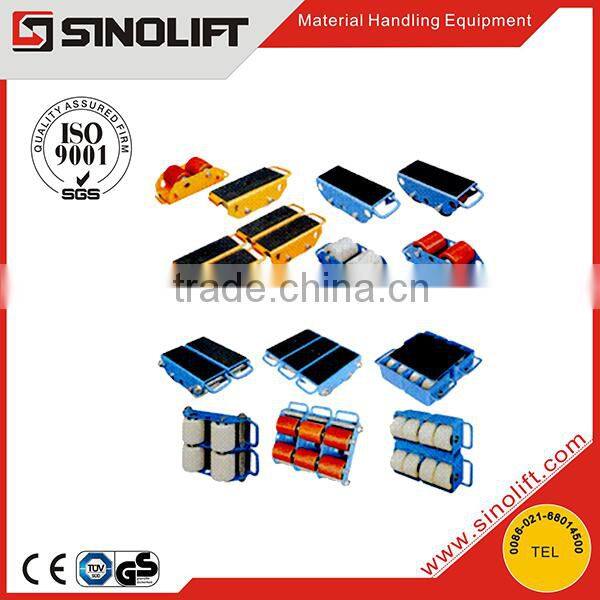

Sinolift AS Series Fixed Type Skates photo-1

Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number AS

Sinolift AS Series Fixed Type Skates

1) Features

- Shifting skates can be used wherever heavy objects have to be moved. The Load can be lifted using either the roller crowar or a jack, allowing the skates to be easily positioned.

- The large diameter sealed nylon rollers ensure ease of movement and spred the load, protecting high quality floors from damage caused by high point loads and oil/grease contamination.

- The skates are maintenance free and are fitted with handles for ease of carrying and positioning. The platforms of the skates are fitted with a rubber surface which helps stability and protect the object being moved.

2) Specification Data

MODEL		AS20-N		AS40-N
MODEL		AS20-P		AS40-P
Capacity	kg/lbs	2000	4400	4000	8800
Loadwheels	Nos.	2		4
Wheelsize	mm/inch	ø82x100	ø3-1/4"x3-15/16"	ø82x100	ø3-1/4"x
Skatesize	mm/inch	115x270x110	4-1/2"x10-5/8"x4-5/16"	230x270x110	9"x10-5/8"x4-5/16"
Weight	kg/lbs	7.5	17	kg	37
* AS=Adjustable Skate N=Nylon P=Polyurethane NA/PA=Buit-up Available.

MODEL		AS60-N		AS120-N
MODEL		AS60-P		AS120-P
Capacity	kg/lbs	6000	13200	12000	26400
Loadwheels	Nos.	6		8
Wheelsize	mm/inch	ø82x100	ø3-1/4"x3-15/16"	ø115x60	ø4-1/2"x2-3/8"
Skatesize	mm/inch	345x270x110	13-9/16"x10-5/8"x4-5/16"	400x345x145	15-3/4"x13-9/16"x5-11/16"
Weight	kg/lbs	25	55	40	88
* AS=Adjustable Skate N=Nylon P=Polyurethane NA/PA=Buit-up Available.

3) Photos

4) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

5) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.

6) Why choose us?

1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.

2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.

3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.

4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.

5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.

6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
