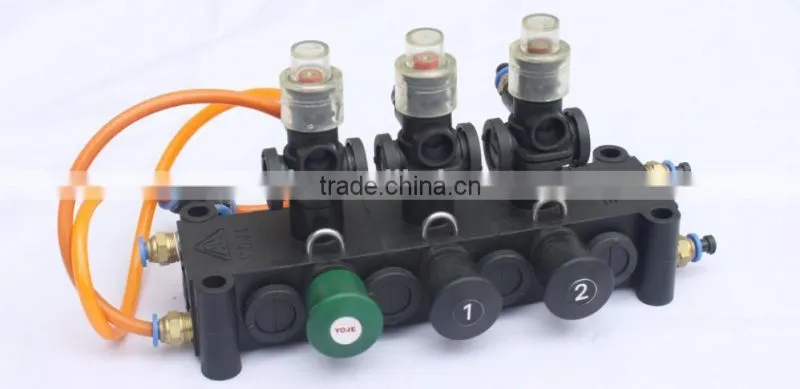

Help CenterFuel Tanker Aluminum Pneumatic Control Block
Related Products
Pneumatic control blocks
Pneumatic control block installed in the tanker to do the central control by pneumatic ,including the emergency foot valve, vapor recovery valve, pipe control valve, API valve, etc. It is available with remote control to cut off the valves under emergency. It can do the quick open and close by pneumatic control block to ensure the loading and unloading more reliable.
Feature :
Can be combined freely with different sections.
Small, compact and robust.
Easy to operate.
It can not be opened when the air pressure is less than 0.3MPa.
Available with automatic closed when air leaked.
Be used for several sections.
1/4 NPT air lineholes.
Sight glass for checking directive opening and closing.
Air hose dimeter |
6 mm |
| Working pressure | 0.3--0.6MPa |
| Temperature range | -20 -- +50 |
| Working medium | air |
Production type |
Controller number |
YJ103-1 |
1 |
YJ103-2 |
2 |
YJ103-3 |
3 |
YJ103-4 |
4 |
YJ103-5 |
5 |
YJ103-6 |
6 |
YJ103-7 |
7 |
Products :
