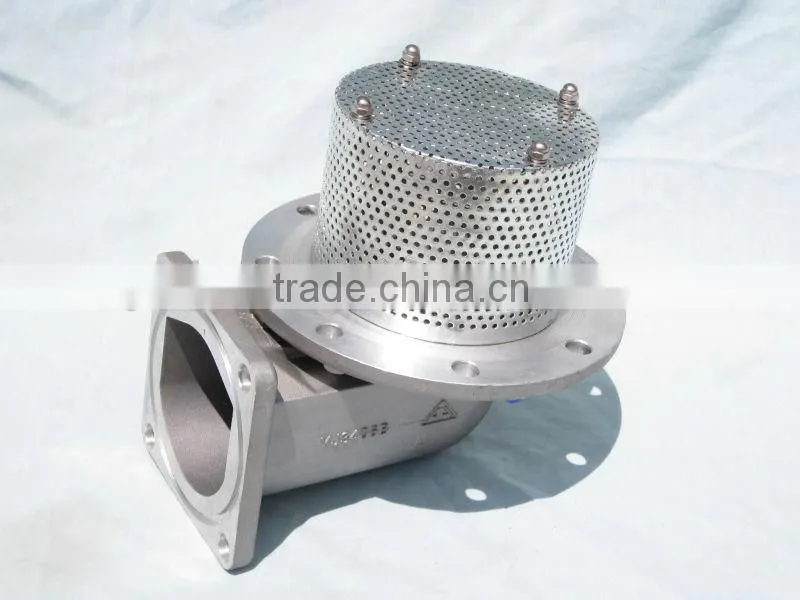

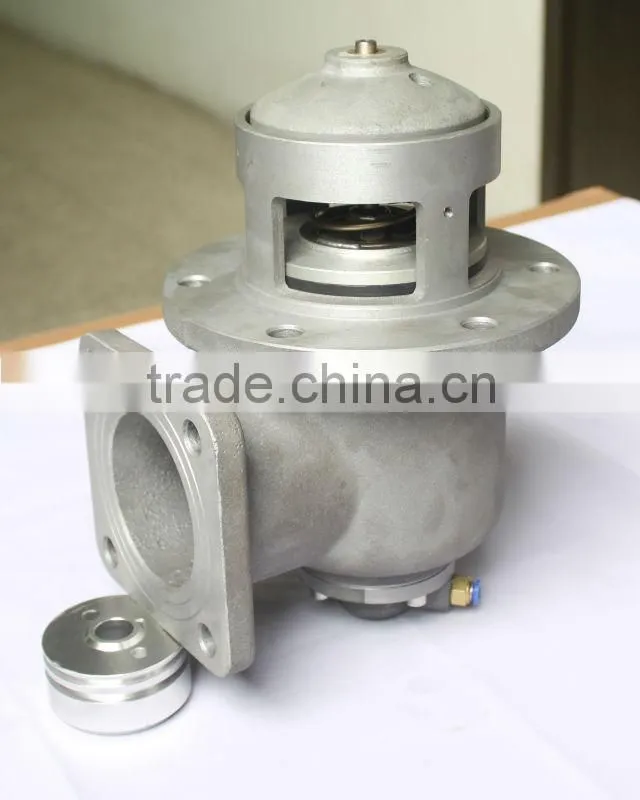

Tanker Aluminum Pneumatic Shut off Valve
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Pressure:
Low Pressure
Power:
Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Manual Emergency Valve/ Emergency Bottom ValveNegotiableMOQ: 20 Units -
Tank Aluminum Pneumatic Emergency Foot ValveNegotiableMOQ: 10 Units
-
T Type Bottom Emergency ValveNegotiableMOQ: 5 Units
-
HDV-100TQ T Type Emergency Bottom ValveNegotiableMOQ: 5 Units
-
Penumatic Emergency Foot ValveNegotiableMOQ: 5 Units
Standard or Nonstandard
Standard
Pressure
Low Pressure
Power
Pneumatic
Material
Alloy
Temperature of Media
Low Temperature
Media
Oil
Port Size
dn80
Place of Origin
Zhejiang, China
Model Number
HDV-80NQ
Brand Name
YOJE
tanker emergency Shut off valve
It is installed at the bottom of the oil tank where easy to hit or occur fires and can automatically emergency cut medium source.
When tank truck hits or overturns, bottom valve can automatically cut off the oil pipeline to avoid the leakage to guarantee the safety of the oil.
If there is no air source or open failure for other reasons, it can be also opened manually without demolition.
Parameter:
Size |
3 Inch |
Max air flow rate |
1500L/min |
Temperature |
-20 -- +70 |
Work pressure |
0.6MPa |
Cylinder pressure |
0.4 -- 0.8 MPA |
Open mode |
pneumatic |
Connect way |
Flange |
Medium |
gasoline ,diese loil,kerosene |
