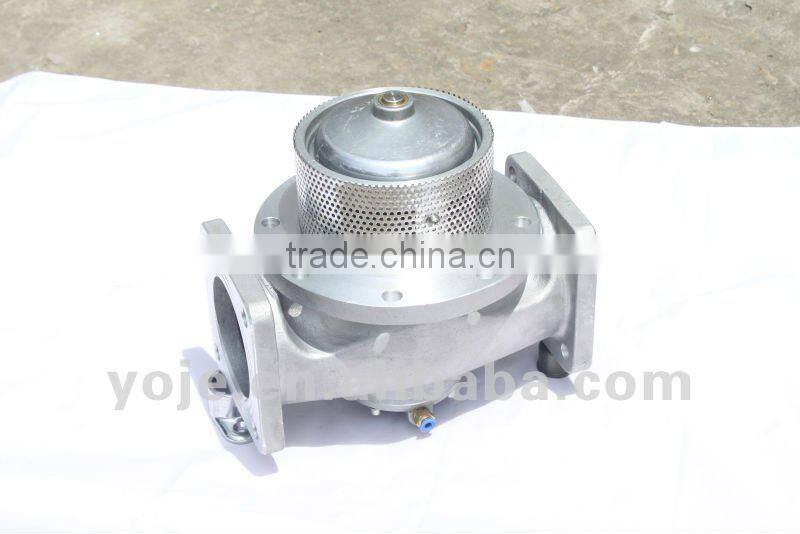

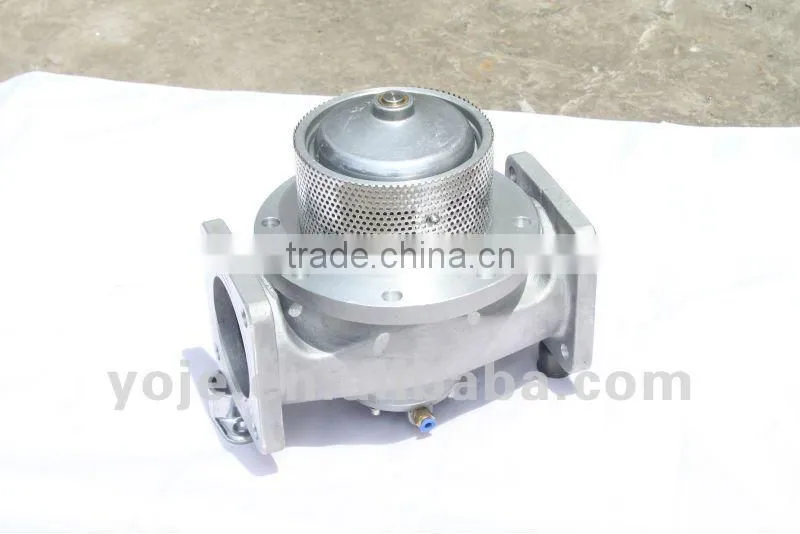

Tank Aluminum Pneumatic Emergency Foot Valve

Name: Tank Aluminum Pneumatic Emergency Foot Valve
Brand: YOJE
SKU: 132425779
Availability: InStock

Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Shutoff

Pressure:

Low Pressure

Yongjia Sanjiang Petroleum Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Shutoff

Pressure Low Pressure

Power Pneumatic

Material Alloy

Temperature of Media Normal Temperature

Media Oil

Port Size 4"

Place of Origin Zhejiang, China

Model Number HDV-100TQ

Brand Name YOJE

fuel oil emergency shut-off valve

installed at the bottom of tanker to connect with flange.

It has efficient design and realize the high flow speed,high fall head in the liquid pipe.

For that,it get the best profit. It can use manual and pneumatic controller to open the bottom valve.

The casting body is design to decrease the weight and improve the fluidity

Feature:

1. High flow rate design

2. Optional external air cylinder available

3. Shear section as per the USA standard

4. High lift valve design to offer max flow rate

5. High quality die cast body and component materials for durability and performance

6 The external switch handle can be opened by flexible shaft controller or pneumatic controller

Parameter :

SIZE	4 Inch
Max air flow rate	2500L/min
Temperature	-20 -- +70
Work pressure	0.6MPa
Cylinder pressure	0.4 -- 0.8 MPA
Open mode	pneumatic
Connect way	Flange
Medium	gasoline ,diese loil,kerosene
