Help CenterManual Emergency Valve
Negotiable
MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Pneumatic Bottom ValveNegotiableMOQ: 5 Units -
Tanker Aluminum Manual Emergency ValveNegotiableMOQ: 10 Units
-
4" Flange For Bottom ValveNegotiableMOQ: 10 Units
-
Tanker Aluminum Pneumatic Emergency ValveNegotiableMOQ: 20 Units
-
Tanker Stainless Steel Pneumatic Bottom ValveNegotiableMOQ: 20 Units
Standard or Nonstandard
Standard
Structure
Shutoff
Pressure
Low Pressure
Power
Manual
Material
Alloy
Temperature of Media
Normal Temperature
Media
Oil
Port Size
4 inch
Place of Origin
Zhejiang, China
Model Number
SDHDV-100
Brand Name
YOJE
Specifications
Manual emergency valveManagement Certification: ISO 9001:2000
Fit EN13083 and Flange TTMA standard

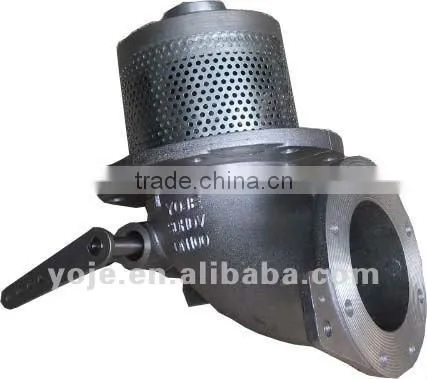

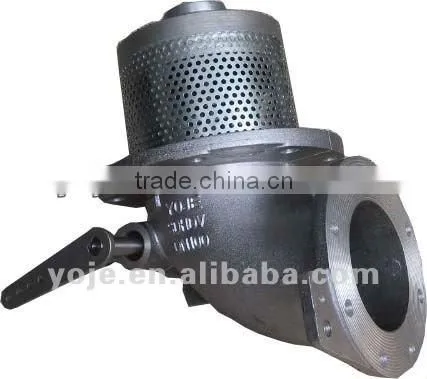

Manual emergency valve
Manual bottom valve is installed at the bottom of the oil tank where easy to hit or occur fires and can automatically emergency cut medium source.
When tank truck hits or overturns, bottom valve can automatically cut off the oil pipeline to avoid the leakage to guarantee the safety of the oil.
Material:
Body: AL alloy
Seal: FKM
Shaft: SS
Feature:
1. High flow rate design
2. Optional external air cylinder available
3. Shear section as per the USA standard
4. High lift valve design to offer max flow rate
5. High quality die cast body and component materials for durability and performance
6. The external switch handle can be opened by flexible shaft controller or pneumatic controller
