Home > Industrial Equipment & Components > Valve > Ball Valve > Tanker Stainless Steel Pneumatic Bottom Valve

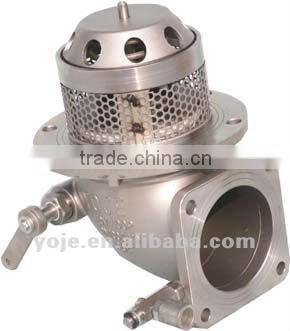

Tanker Stainless Steel Pneumatic Bottom Valve
Negotiable
MOQ: 20 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tanker Stainless Steel Manual Emergency ValveNegotiableMOQ: 10 Units -
Truck Tank Mechanical Manual Stainless Steel Bottom ValveNegotiableMOQ: 10 Units
-
Stainless Steel Pneumatic Emergency ValveNegotiableMOQ: 20 Units
-
Oil Tank Aluminum Manual Emergency Bottom ValveNegotiableMOQ: 10 Units
-
Tanker Mechanical Stainless Steel Bottom Foot ValveNegotiableMOQ: 20 Units
Standard or Nonstandard
Standard
Structure
Shutoff
Pressure
Low Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Oil
Port Size
4 inch
Place of Origin
Zhejiang, China
Model Number
HDV-100PQ
Brand Name
YOJE
Application
Other
Tanker Pneumatic Valve
It is installed at the bottom of the oil tank where easy to hit or occur fires and can automatically emergency cut medium source.
When tank truck hits or overturns, bottom valve can automatically cut off the oil pipeline to avoid the leakage to guarantee the safety of the oil.
If there is no air source or open failure for other reasons, it can be also opened manually without demolition.
Material :
Body:stainless steel
Seal: PTFE
Shaft: SS
Parameter:
Size |
4 Inch |
Max air flow rate |
2500L/min |
Temperature |
-20 -- +70 |
Work pressure |
0.6MPa |
Cylinder pressure |
0.4 -- 0.8 MPA |
Open mode |
pneumatic |
Connect way |
Flange |
Medium |
gasoline ,diesel oil,kerosene |
