Home > Products > Emergency valve > Tanker bottom valve

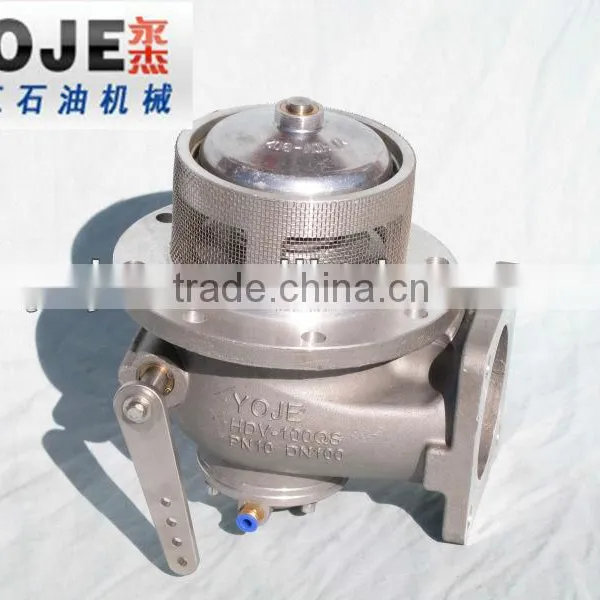

Tanker bottom valve
- 2000 Unit / Units per Month
- Ningbo
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Shutoff | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Alloy | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 4 inch | |
| Place of Origin | Zhejiang, China | Model Number | HDV-100S | |
| Brand Name | YOJE |
Product Description
Specifications
Tanker bottom valveManagement Certification: ISO 9001:2000
Fit EN13083 and Flange TTMA standard
Oil Tanker emergency shut-off valve
Bottom valve is installed on the place like tank truck that easy to hit or occur fires and can automatically emergency cut media source.
When tank truck hits or overturns, bottom valve can automatically cut off the oil pipeline to avoid the danger.
Bottom valve is also called emergency cut-off valve, shear valve, tank bottom valve to low the risk of hitting. When hitting, valve seat and valve spool are intact. So only in liquid pipe does it easy to damage.
Bottom valve has more flexibility, making fully use of the tank truck chassis.
Feature:
1. High flow rate design
2. Optional external air cylinder available
3. Shear section as per the USA standard
4. High lift valve design to offer max flow rate
5. High quality die cast body and component materials for durability and performance
6. The external switch handle can be opened by flexible shaft controller or pneumatic controller
