wear resistant ceramic lined steel pipe elbow
1. Regarding the ceramic steel pipe

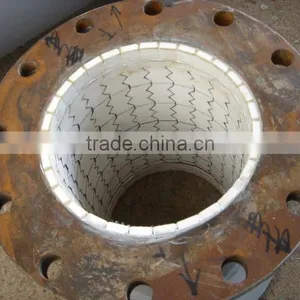

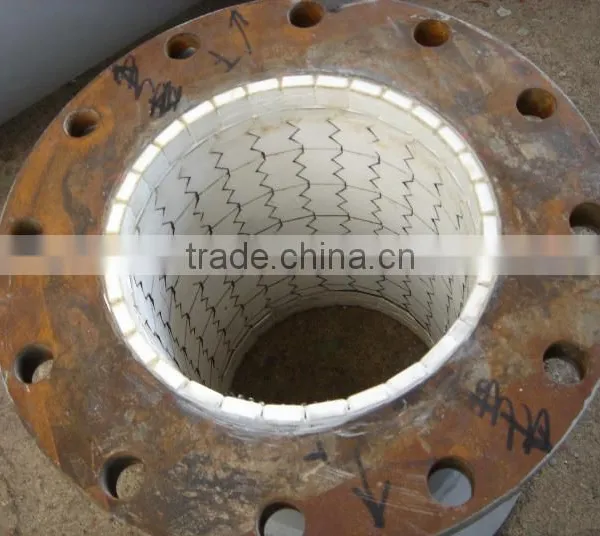

There is layer ceramic chip inside of steel pipe, so the most important advantages as follows:
a. Higher wear resistant and higher corrosion resistant
b. Higher heat resistant and higher pressureproof property
c. More longer service life than conventional pipes
2. Application Fields of ceramic steel pipe:
The ceramic lined pipe is widely used in steel plants, cement plants, power plants, coal mine and other heavy industry fields.
It's a very good solution to solve abrasion problem
3. Details of ceramic steel pipe:
Main Properties of Ceramic | |
Item |
Index |
Content of Alumina |
≥92% |
Density |
≥3.5 g/cm3 |
Rockwell Hardness |
≥85 HRA |
Impact Strength |
≥850 Mpa |
Bending Strength |
≥290MPa |
Breaking Temper |
≥4.8MPa·m1/2 |
Coefficient of Linear Thermal Expansion |
20W/m.K |
| product | Superior Quality High Wear Resisting Ceramic Steel Pipe |
| wall thickness | 3-10mm |
| Inner material | 92 % Alumina ceramics |
| ceramic lining Thickness | 1 to 5mm |
| Application |
1,Thermal power 2,steel Industry 3,mechanical industry 4,chemical Industry 5,Mine,coal industry 6,cement industry 7,Smelting industry |
| Advantages |
1,lower cost than the cast iron pipe and alloy steel pipe. 2,low density,low weight and convenient installation 3,unique abrasion and impact resistant 4,excellent corrosion resistant 5,smooth inner wall |
| Packing | Wooden cases |
| Delivery Time | According to your requirement |
| The Minimum quantity | 10m |
| payment | L/C , T/T |
| port | Shanghai |
| availability | 5000m |
