NEW ADVANCED TECHNOLOGY BELT SCRAPER

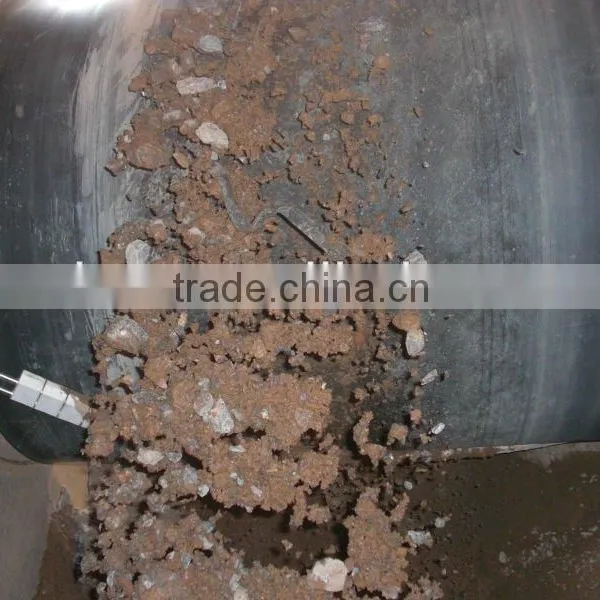

Near maintenance-free patented ceramic belt scraper cleaner. Exceptional performance & durability by optimal contact of multiple tipped alumina ceramic cleaning edges. Simply & quickly installed without modifications. 24/7 relentless cleaning of abrasive, corrosive, wet, oily, hot, sticky, frozen, powdery & encrusted solids. Prevent material buildup, carry back, spills, dust & downtime.

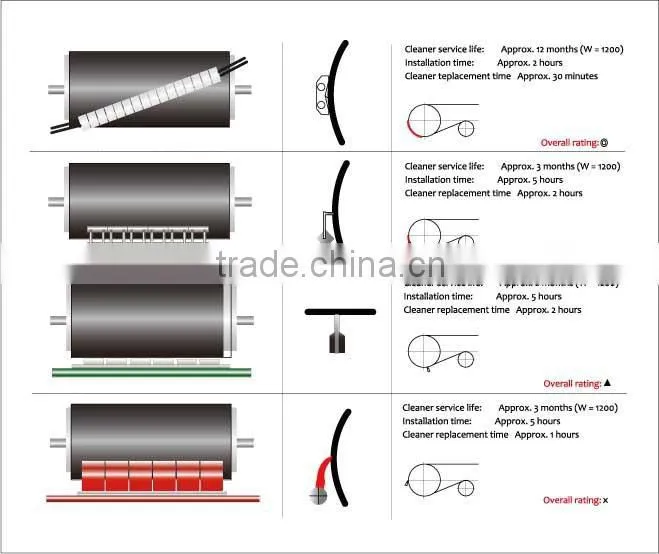

1. Newly advanced techology and design:

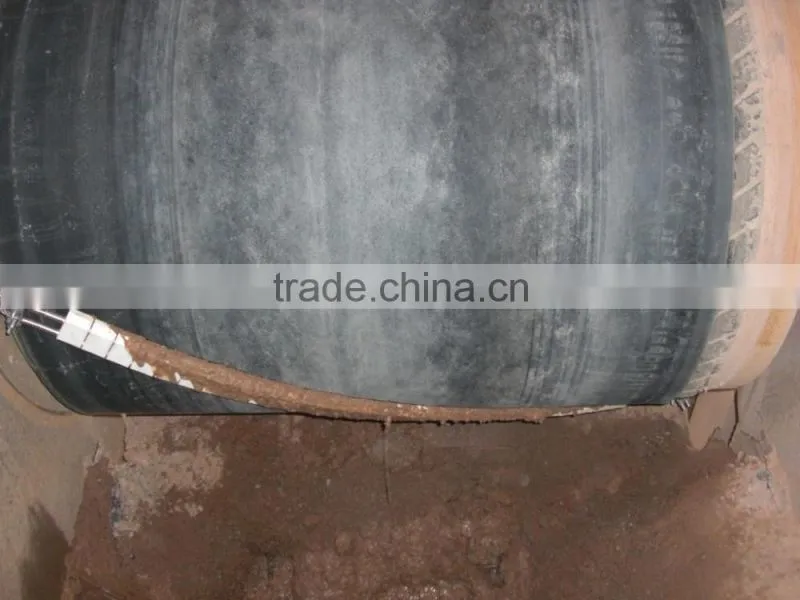

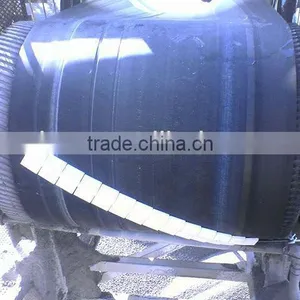

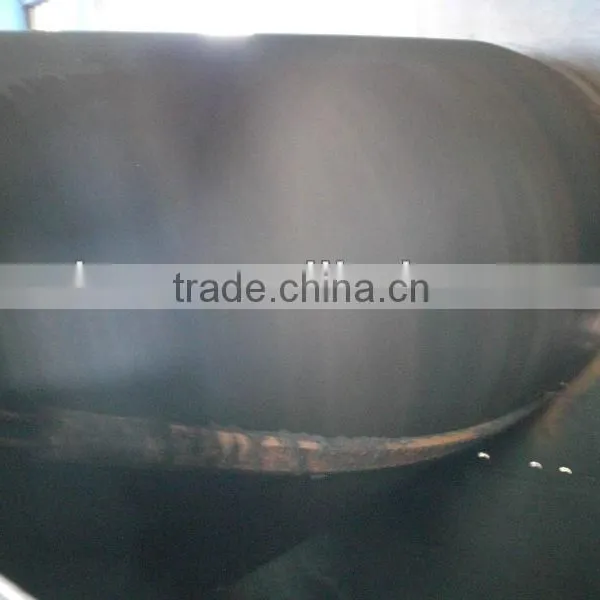

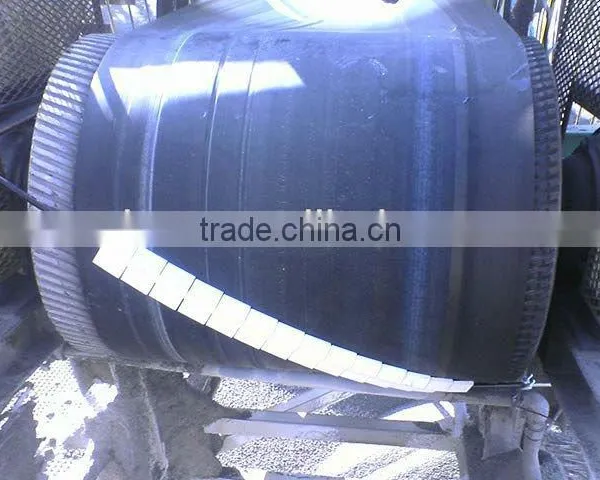

The belt cleaner is positioned in the front of the head pulley.
The newly technology is that improved the spring tensioned and fixed at the upper left and right side respectively. With the new holders, the belt cleaner becomes easier to install than conventional belt cleaner and its wire becomes adjustable individually.
2. Application:
Steel mill, mining and mineral idustry, cement and port industry ect.
3. Specification:
24inch to 96 inch belt width or belt width with customers' requirements.
4. The packing for the belt cleaner:
In bulk and packed in carton or wooden cases.
5. Installation:
It is easy to install the front of belt conveyor with any angle.
6. Long service life:
-Light weight: Approximately 9 kg
-Long service: Approx. 10 month for sinter and iron ore; Approx 15 months for limestone and coal
The main properties of the ceramic:
| content of alumina | 92% |
| density | 3.6g/cm3 |
| rockwall hardness | 80HRA |
| impact strength | 850Mpa |
| bending strength | 290Mpa |
| breaking tenacity | 4.8Mpa.m1/2 |
| coefficient of linear thermal expansion | 20w/m.k |
