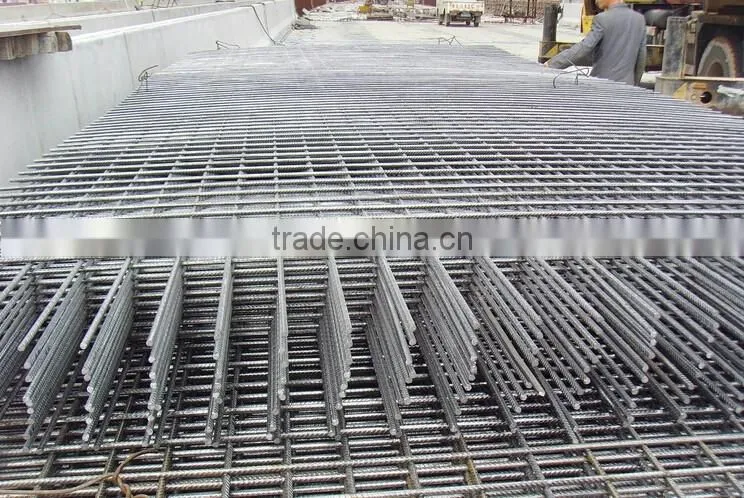

Help Center2015 New Concrete Welded Wire Mesh of Reinforcing Steel Mesh
Related Products
-
Construction Site Wire Mesh Grid PanelsUS$ 200 - 500MOQ: 10 Tons -
Galvanized Welded Wire Mesh / Welded Mesh for Concrete ReinforcingUS$ 300 - 550MOQ: 3 Tons
-
Reinforcing Mesh Without RibUS$ 0.76 - 9.8MOQ: 5 Tons
-
Steel Structure PlatformUS$ 0.76 - 9.8MOQ: 5 Tons
-
Cold Rolled Ribbed Reinforcement MeshUS$ 400 - 400MOQ: 10 Tons
1.Reinforcing Mesh Also named:reinforcing welded mesh,welded reinforced mesh,reinforcing mesh,reinforcing weld mesh panels,reinforcing mesh,construction reinforcing mesh.
3.The Specifications Of Reinforcing Mesh:

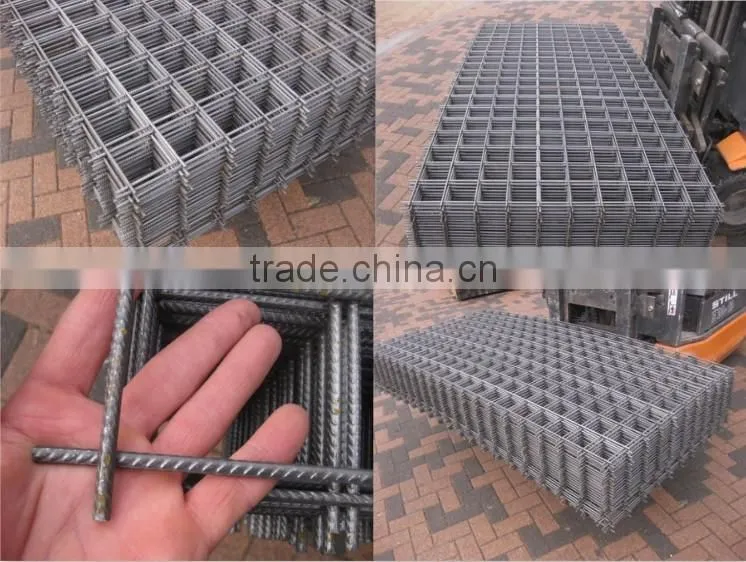

Reinforcing Welded Mesh Panels
Wire Diameter:3-16mm
Mesh Size:5x5,10x10,10x20,20x20,10x30,30x30cm
Length:5.8m,6m
Width:1,1.2,1.5m
Welded Bar Panel Opening: 75mm To 300mm.
Hole Shape:Square
Weave Style:Welded

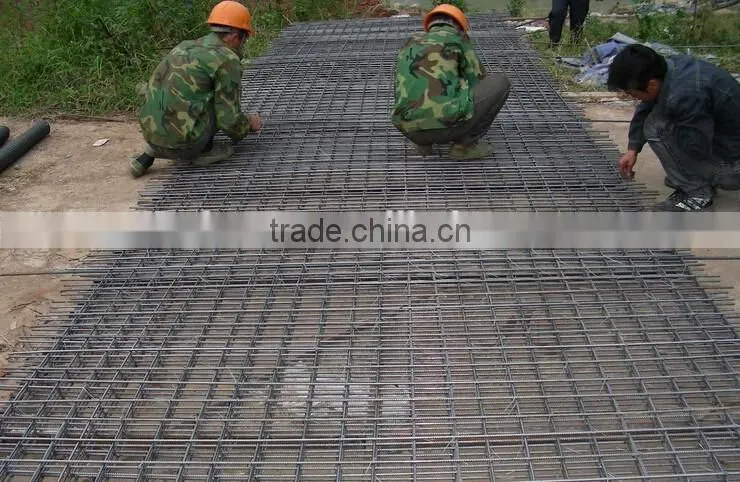

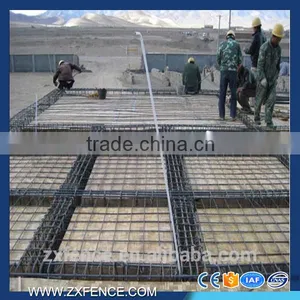

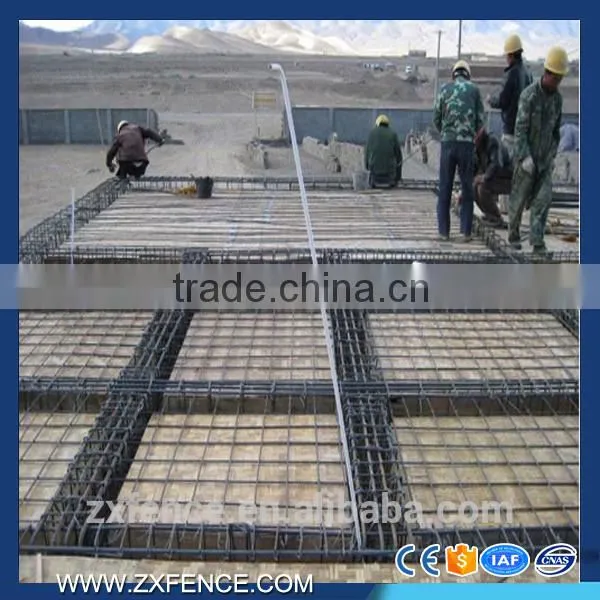

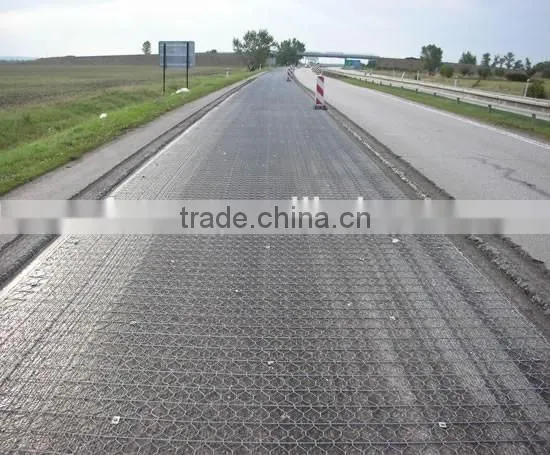

4.The Applications Of Reinforcing Mesh: galvanized welded wire mesh is widely used in industry, agriculture, construction as floor heating special mesh ,and so on. And welded fencing used as animal livestock fence,like dog kennel,bird cage, landscaped fence, channel fences, egg baskets and home office food basket, waste basket and other decorations. welded reinforcing mesh sheet is the most important material for bulidings
5.The Feature Of Reinforcing Mesh
Economic transport;
Ease and economy of storage space;
Reduction of implementation time (high application performance);
Installation does not require skilled labor;
Quality ensured by the implementation in factory;
Reduction of waste and failings.
Style No. |
Longitudinal bar |
Transverse bar |
weight(kg/m²) |
||||
Diameter(mm) |
Space(mm) |
Linear meter/sgm(mm²/m) |
Diameter(mm) |
Space(mm) |
Linear meter/sgm(mm²/m) |
||
A16 |
16 |
200 |
1006 |
12 |
200 |
566 |
12.34 |
A14 |
14 |
770 |
12 |
566 |
10.49 |
||
A12 |
12 |
566 |
12 |
566 |
8.88 |
||
A11 |
11 |
475 |
11 |
475 |
7.46 |
||
A10 |
10 |
393 |
10 |
393 |
6.61 |
||
A9 |
9 |
318 |
9 |
318 |
4.99 |
||
A8 |
8 |
252 |
8 |
252 |
3.95 |
||
A7 |
7 |
193 |
7 |
193 |
3.02 |
||
A6 |
6 |
142 |
6 |
142 |
2.22 |
||
A5 |
5 |
98 |
5 |
98 |
1.54 |
||
B16 |
16 |
100 |
2011 |
10 |
200 |
393 |
18.89 |
B14 |
14 |
1539 |
10 |
393 |
15.19 |
||
B12 |
12 |
1131 |
8 |
252 |
10.9 |
||
B11 |
11 |
950 |
8 |
252 |
9.43 |
||
B10 |
10 |
785 |
8 |
252 |
8.14 |
||
B9 |
9 |
635 |
8 |
252 |
6.97 |
||
B8 |
8 |
503 |
8 |
252 |
5.93 |
||
B7 |
7 |
385 |
7 |
193 |
4.53 |
||
B6 |
6 |
283 |
7 |
193 |
3.73 |
||
B5 |
5 |
196 |
7 |
193 |
3.05 |
||
C16 |
16 |
150 |
1341 |
12 |
200 |
566 |
14.98 |
C14 |
14 |
1027 |
12 |
566 |
12.51 |
||
C12 |
12 |
754 |
12 |
566 |
10.36 |
||
C11 |
11 |
634 |
11 |
475 |
8.7 |
||
C10 |
10 |
523 |
10 |
393 |
7.19 |
||
C9 |
9 |
423 |
9 |
318 |
5.82 |
||
C8 |
8 |
335 |
8 |
252 |
4.61 |
||
C7 |
7 |
257 |
7 |
193 |
3.53 |
||
C6 |
6 |
189 |
6 |
142 |
2.6 |
||
C5 |
5 |
131 |
5 |
98 |
1.8 |
||
D16 |
16 |
100 |
2011 |
12 |
100 |
1131 |
24.68 |
D14 |
14 |
1539 |
12 |
1131 |
20.98 |
||
D12 |
12 |
1131 |
12 |
1131 |
17.75 |
||
D11 |
11 |
950 |
11 |
950 |
14.92 |
||
D10 |
10 |
785 |
10 |
785 |
12.33 |
||
D9 |
9 |
635 |
9 |
635 |
9.98 |
||
D8 |
8 |
503 |
8 |
503 |
7.9 |
||
D7 |
7 |
385 |
7 |
385 |
6.04 |
||
D6 |
6 |
|
283 |
6 |
|
283 |
4.44 |
D5 |
5 |
196 |
5 |
196 |
3.08 |
||
E16 |
16 |
150 |
1341 |
12 |
150 |
751 |
16.46 |
E14 |
14 |
1027 |
12 |
754 |
13.99 |
||
E12 |
12 |
754 |
12 |
754 |
11.84 |
||
E11 |
11 |
634 |
11 |
634 |
9.95 |
||
E10 |
10 |
523 |
10 |
523 |
8.22 |
||
E9 |
9 |
423 |
9 |
423 |
6.66 |
||
E8 |
8 |
335 |
8 |
335 |
5.26 |
||
E7 |
7 |
257 |
7 |
257 |
4.03 |
||
E6 |
6 |
189 |
6 |
189 |
2.96 |
||
E5 |
5 |
131 |
5 |
131 |
2.05 |
||

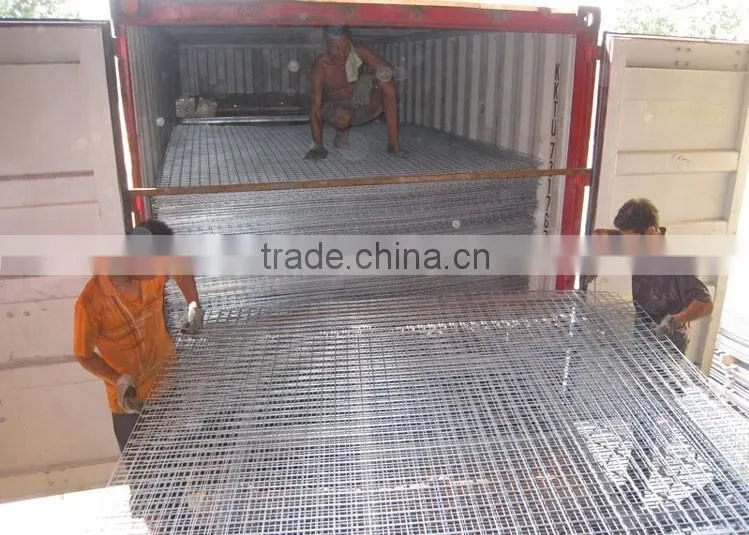

Carton,pallet, Wooden Box , Special packing can be arranged upon request
1.We could make small samples for customer before the order according to your request.
2.We will choose high quality and low price the shipping company.
3.lf client come to visit the company, we shall pick you up at Beijing airport, arrange hotels, and send you return to the airport on time.
Hebei Zhuoxing Metal Wire Mesh Products Co.,ltd
Business type: |
Manufacturer / Exporter
|
||
Established time |
2011
|
Occupation Area(M²) : |
18000m2 |
R&D staff |
10 |
Number of employees |
120 |
Certification |
SGS,ISO9001,CE & TUV etc |
||
Main product |
Fence: Welded wire mesh fence, 358 fence, chain link fence, temporary fence, crowd control fence etc. Wire:black iron wire,galvanized iron wire,pvc coated wire and so on Mesh panel:welded wire mesh, reinforcing mesh ,building wire mesh and so on. |
||
Our principle |
Engaged, sincerely |
||
Main market |
Australia, Europe, Japan, USA, South American, etc.
|
||
Payment term:T/T,30% as deposit, the balance will against the copy of B/L.
MOQ: 200 sets. We can negotiate this.
Delivery time: within 15 days after receiving your deposit.
