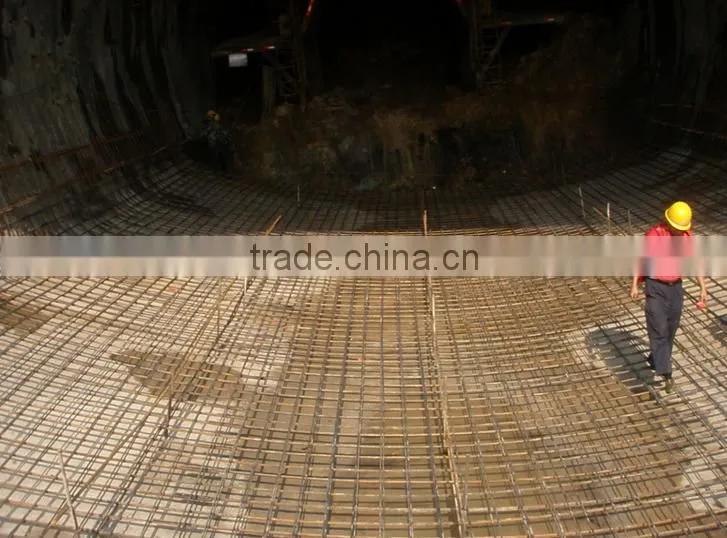

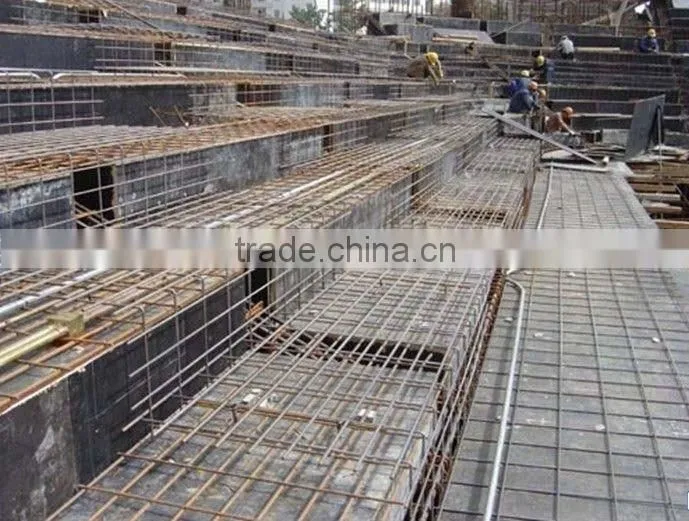

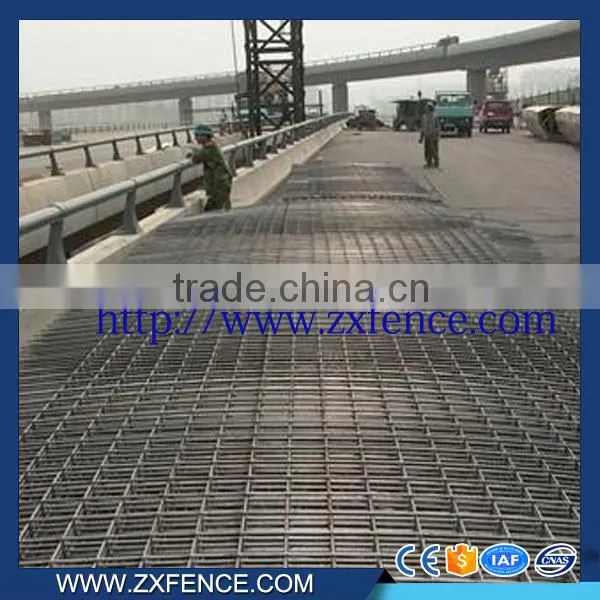

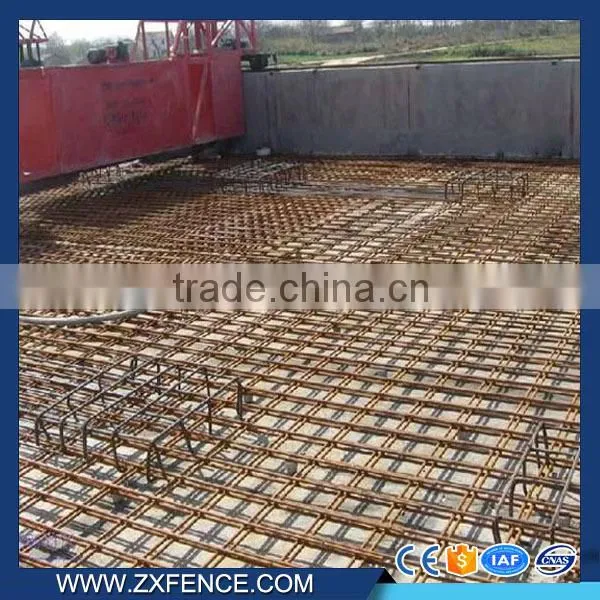

Construction site wire mesh grid panels

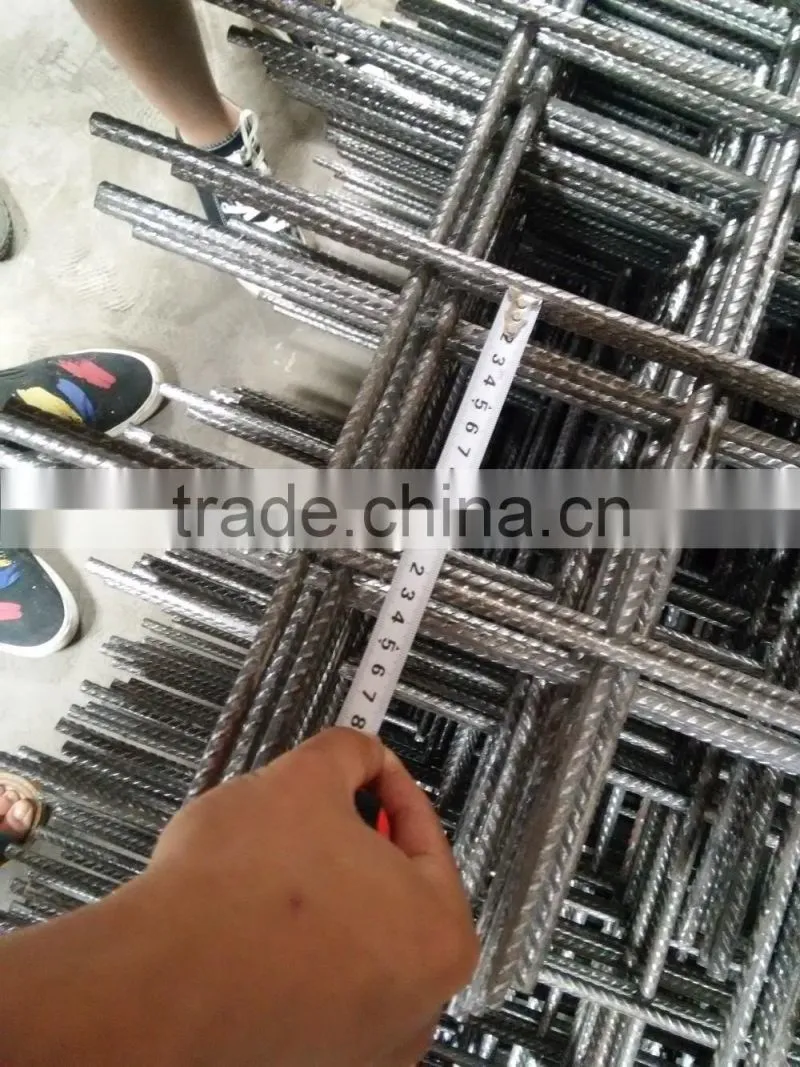

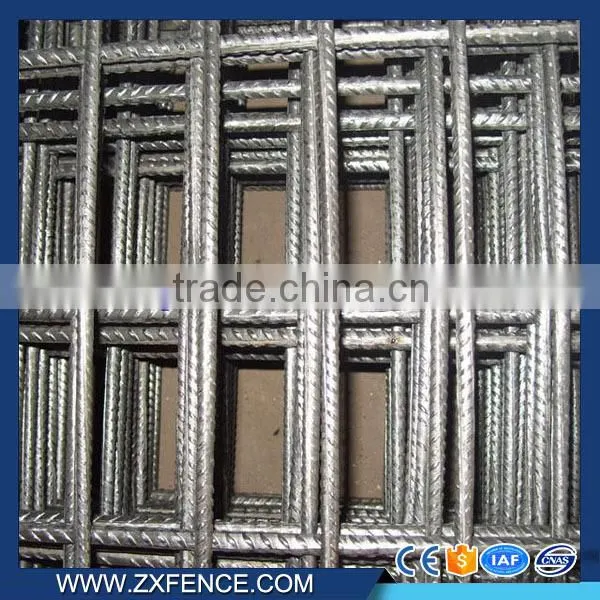

Construction site wire mesh grid panels is manufactured from ribbed wires (CRB550).

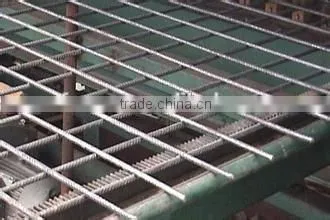

Which are welded together with equal spacing in both directions to form square apertures,or different spacing in each direction to form rectangular apertures.
Certification: ISO9001:2008
Also can produce a range of custom meshes for project-specific requirements
Size: Wire Dia:4-14mm;
Aperture:50-400mm
Length*Width:2400*6000mm
Certificate: ISO9001-2008;
AI Global Ceritificate
Material: Steel,Low-carbon steel,Galvanized steel,iron
Advantage: Low Price High Quality
1.Lower the cost of the project.
2.Speed up the construction progress.
3.Ensure the quality of the project.
4.Anti-cracking performance,etc.
|
AS/NZS 4671:2001 Australia/New Zealand Standard (SIZE:6000mmX2400mm) | |||||
Ref No. |
Std Unit |
Longitudinal Wires (mm) |
Edge Wires(mm) |
Cross Wires(mm) |
Mass Kg |
SL81(F81) |
Sheet |
7.60@100 |
7.60@100 |
7.60@100 |
105 |
SL102(F102) |
Sheet |
9.50@200 |
6.75@100 |
9.50@200 |
80 |
SL92(F92) |
Sheet |
8.60@200 |
6.00@100 |
8.60@200 |
66 |
SL82(F82) |
Sheet |
7.60@200 |
5.37@100 |
7.60@200 |
52 |
SL72(F72) |
Sheet |
6.75@200 |
4.77@100 |
6.75@200 |
41 |
SL62(F62) |
Sheet |
6.00@200 |
4.77@100 |
6.00@200 |
33 |
SL52(F52) |
Sheet |
4.77@200 |
4.77@100 |
4.77@200 |
21 |
B S4483 BRITISH STANDARD | ||||||
Ref No. |
Std Unit |
Longitudinal Wires(mm) |
Cross Wires(mm) |
Pitch of wire |
No. of sheet per ton |
Mass Kg/m |
A393 |
Sheet |
10 |
10 |
200@200 |
15 |
6.16 |
A252 |
Sheet |
8 |
8 |
200@200 |
22 |
3.95 |
A193 |
Sheet |
7 |
7 |
200@200 |
29 |
3.02 |
A142 |
Sheet |
6 |
6 |
200@200 |
40 |
2.22 |
A98 |
Sheet |
5 |
5 |
200@200 |
57 |
1.54 |

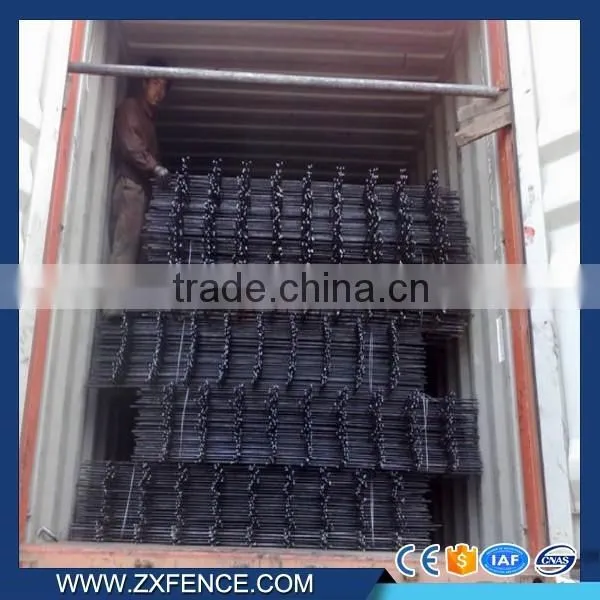

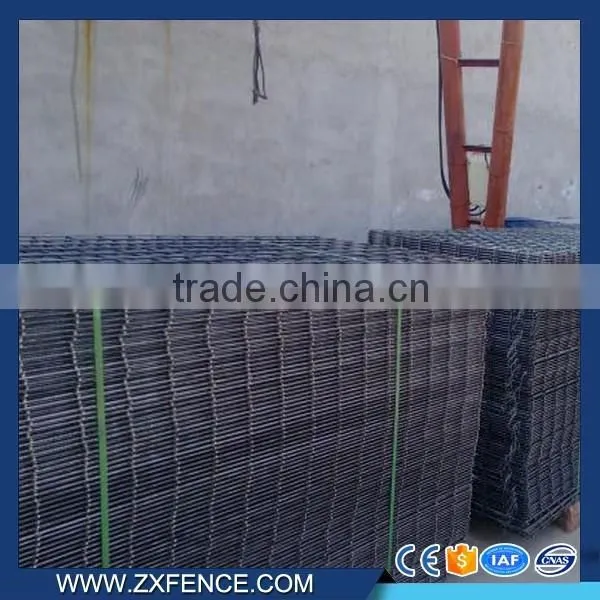

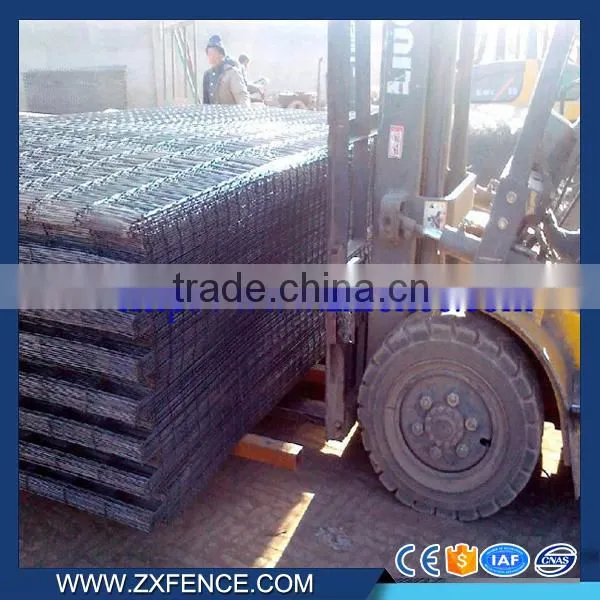

Construction site wire mesh grid panels packaging:
1. in bulk or by pallet
2. Standard export package or as per customers' request
1. Provide sample for free (about 3-5 days)
2. Factory direct sale
3. It can customize according to the requirements or drawings
4. 24 hours on-line service
5. Quick delivery
6. Answer questions in a timely manne
7. Excellent service for pre-sale,on-sale and after-sale
8. Competitive price with superior higher quality products
9. I can design the installation pictures for you.
♥Any other questions, please feel free to contact me.♥
Hebei zhuoxing metal wire mesh products co., ltd.
1. Payment term: T/T, 30% as deposit, the balance will against the copy of B/L.
2. MOQ: 200 sets. We can negotiate this.
3. Delivery time: within 15 days after receiving your deposit.
I am Cassie, welcome your inquiry!!!
