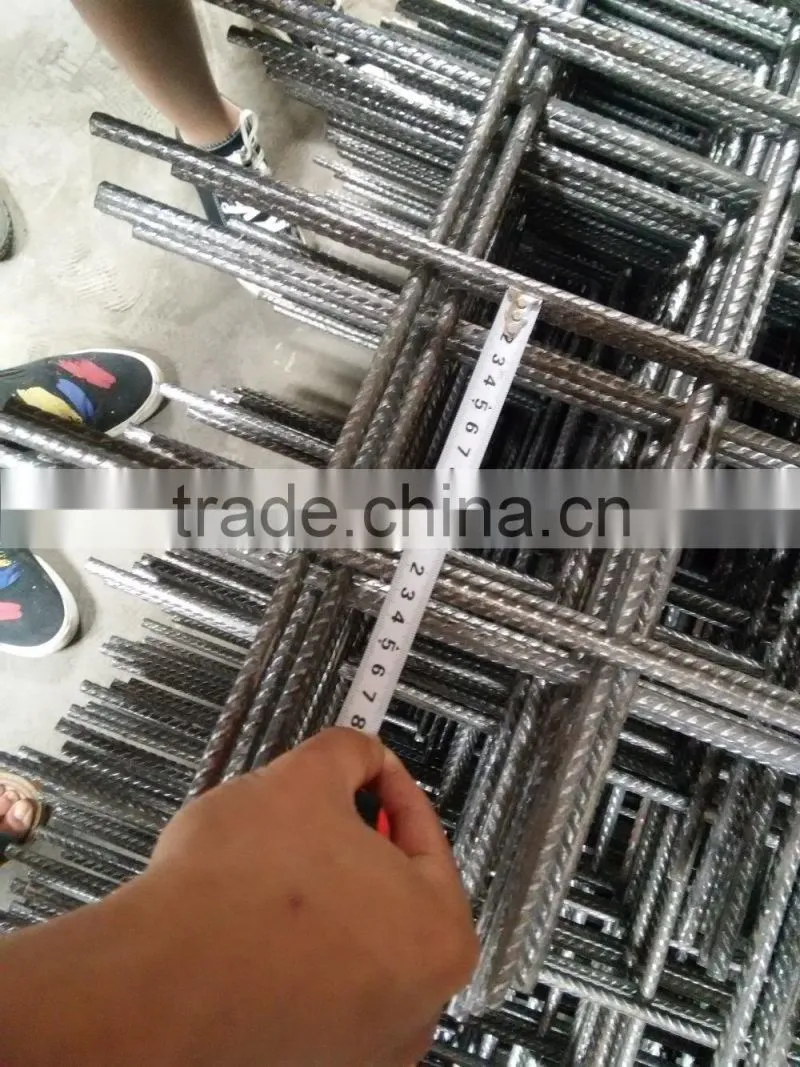

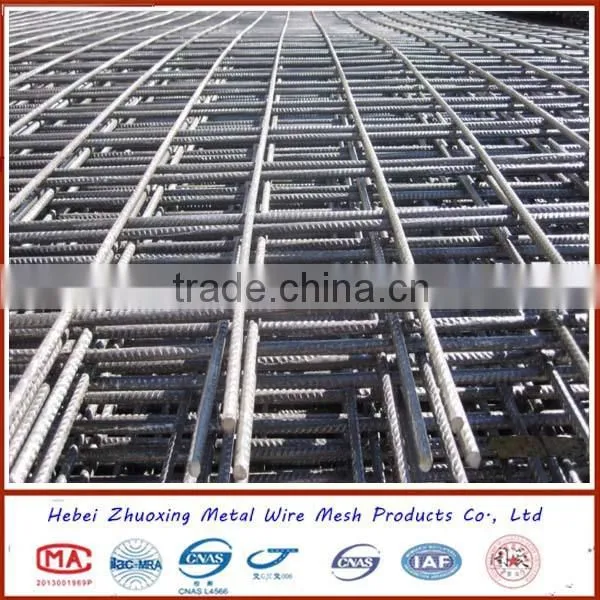

8mm reinforcing welded wire mesh
Reinforcing welded wire mesh also known as welded steel mesh, welded mesh,steel mesh and so on. It is the longitudinal bars and transverse bars are arranged at constant pitch and at right angles to each other, all cross points of the mesh are welded together.
DIN488 GERMAN STANDARD (SIZE:2150MMX5000MM)
Ref No. |
Std Unit |
Longitudinal |
Cross Wires mm |
Pitch of wire |
Mass Kg |
Mass Kg/m2 |
Q131 |
Sheet |
5 |
5 |
150 @ 150 |
22.476 |
2.091 |
Q188 |
Sheet |
6 |
6 |
150 @ 150 |
32.401 |
3.014 |
Q221 |
Sheet |
6.5/5.0 |
6.5 |
150 @ 150 |
33.707 |
3.136 |
Q295 |
Sheet |
7.5/5.5 |
7.5 |
150 @ 150 |
44.245 |
4.116 |
Q378 |
Sheet |
8.5/6 |
8.5 |
150 @ 150 |
66.659 |
5.157 |
AS/NZS 4671:2001 Australia/New Zealand Standard (SIZE:6000X2400mm)
Ref No. |
Std Unit |
Longitudinal |
Edge Wires mm |
Cross Wires mm |
Mass Kg |
SL81 (F81) |
Sheet |
7.6 @ 100 |
7.60 @ 100 |
7.60 @ 100 |
105 |
SL102 (F102) |
Sheet |
9.5 @ 200 |
6.75 @ 100 |
9.50 @ 200 |
80 |
SL92 (F92) |
Sheet |
8.6 @ 200 |
6 @ 100 |
8.60 @ 200 |
66 |
SL82 (F82) |
Sheet |
7.6 @ 200 |
5.37 @ 100 |
7.60 @ 200 |
52 |
SL72 (F72) |
Sheet |
6.75 @ 200 |
4.77 @ 100 |
6.75 @ 200 |
41 |
SL62 (F62) |
Sheet |
6 @ 200 |
4.77 @ 100 |
6 @ 200 |
33 |
SL52 (F52) |
Sheet |
4.77 @ 200 |
4.77 @ 100 |
4.77 @ 200 |
21 |
BS4483 BRITISH STANDARD Round bar
Ref No. |
Std Unit |
Longitudinal |
Cross Wires mm |
Pitch of wire |
No. of sheet per ton |
Mass Kg/m2 |
A393 |
Sheet |
10 |
10 |
200 @ 200 |
15 |
6.16 |
A252 |
Sheet |
8 |
8 |
200 @ 200 |
22 |
3.95 |
A193 |
Sheet |
7 |
7 |
200 @ 200 |
29 |
3.02 |
A142 |
Sheet |
6 |
6 |
200 @ 200 |
40 |
2.22 |
A98 |
Sheet |
5 |
5 |
200 @ 200 |
57 |
1.54 |

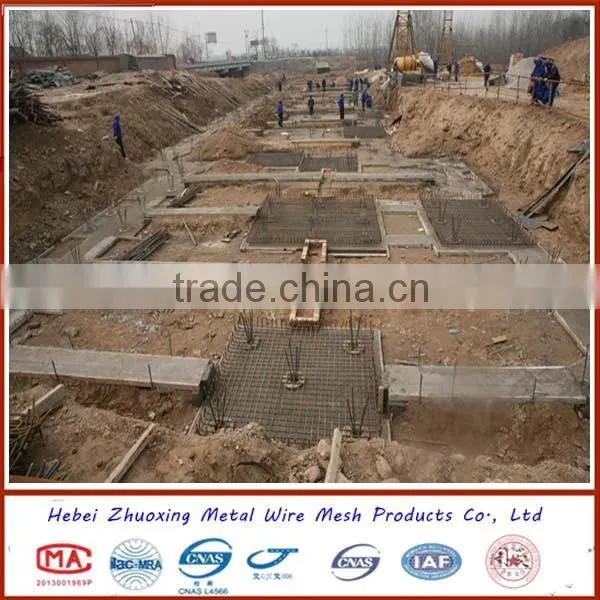

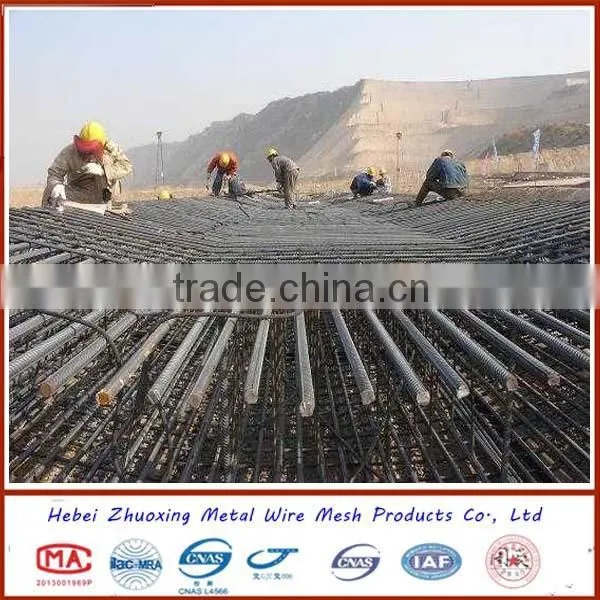

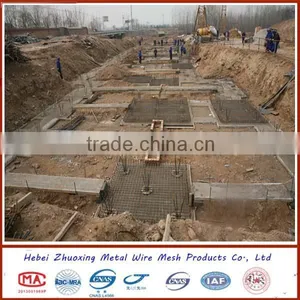

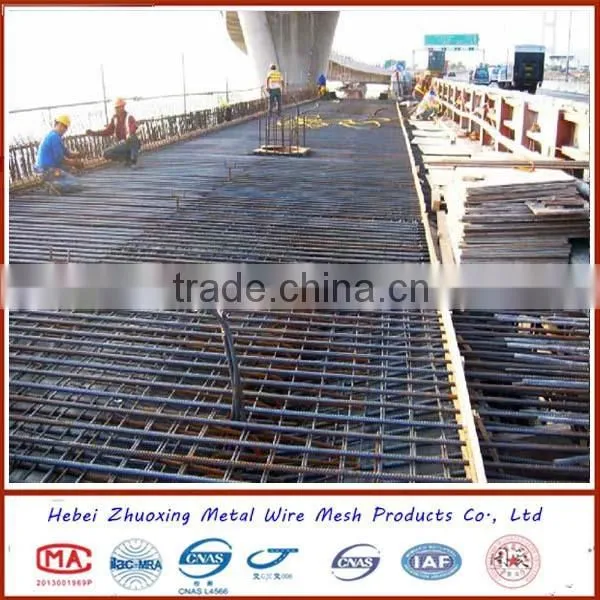

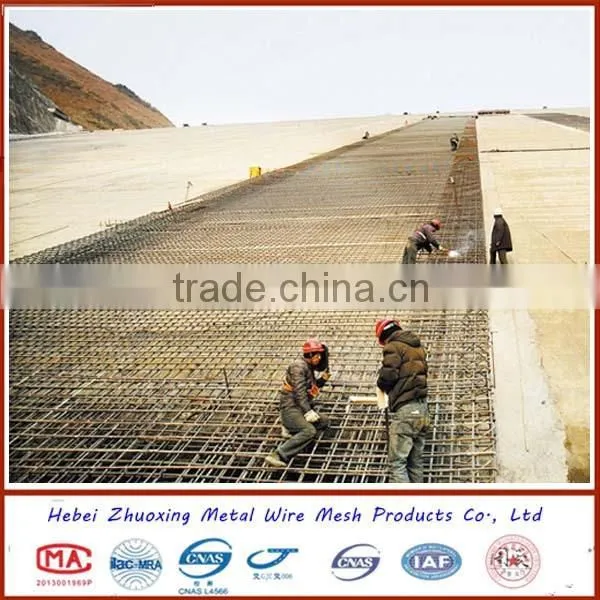

All cross-points are welded together with strong electric resistance. With high precision, small error and high quality, it is widely used in many sectors. Reinforcing mesh has a wide variety of uses, ranging from the ordinary household to heavy industry. It is widely used in housing floor, roof, wall, terrace, concrete pavement, deck paving, airport runway, tunnel lining, concrete pipes, piles of industry and civilian, etc.
8mm reinforcing welded wire mesh packaging:
1. Around with Angle steel welded into a bundle
2. Use steel bar tied into a bundle
3. 50-100pcs into a bundle
1. Provide sample for free (about 3-5 days)
2. Factory direct sale
3. It can customize according to the requirements or drawings
4. 24 hours on-line service
5. Quick delivery
6. Answer questions in a timely manne
7. Excellent service for pre-sale,on-sale and after-sale
8. Competitive price with superior higher quality products
9. I can design the installation pictures for you.
♥Any other questions, please feel free to contact me.♥
Hebei zhuoxing metal wire mesh products co., ltd.
1. Year of Establish: 1998
2. Occupied Area: 3350m2
3. Certifications: ISO9001:2008; CE
4. Fence Market: Poland, Germany, Russia, France, Italy,etc. European countries;
Malaysia, Singapore;etc. Asia countries
5. Employees of Quality Dept.: 8 persons
6. Employees of Technology Dept.: 5 persons
1. Payment term: T/T, 30% as deposit, the balance will against the copy of B/L.
2. MOQ: 200 sets. We can negotiate this.
3. Delivery time: within 15 days after receiving your deposit.
I am Cassie, welcome your inquiry!!!
