Specifications
Thermocouple temperature sensor1,Quick thermal response,low dynamic error
2,Wide measuring range
3,High measuring accurac

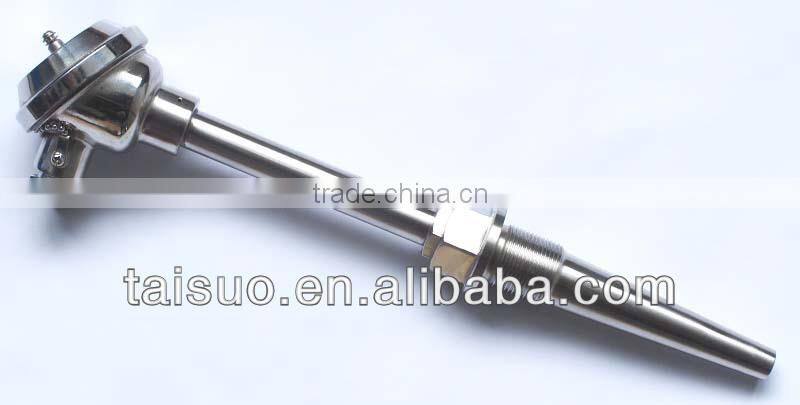

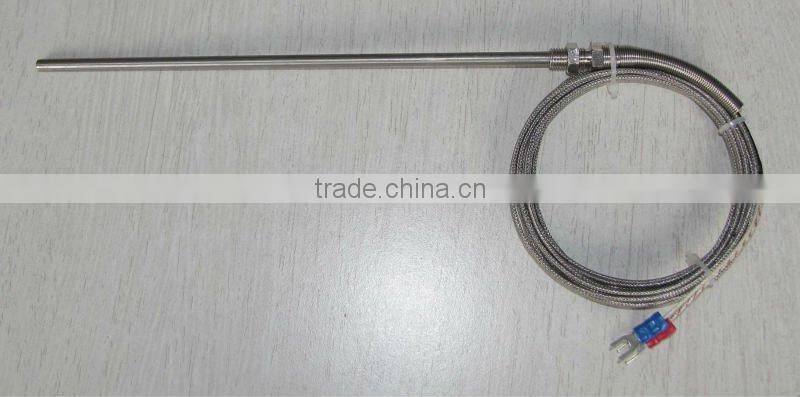

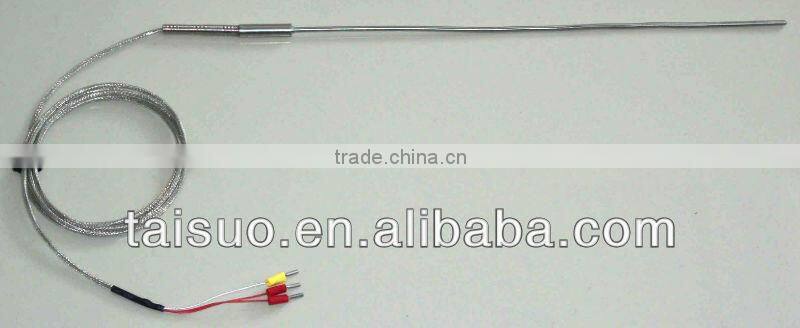

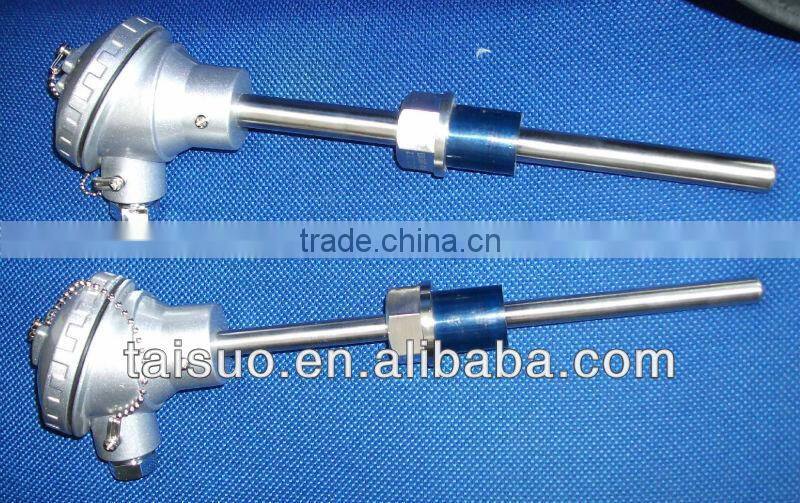

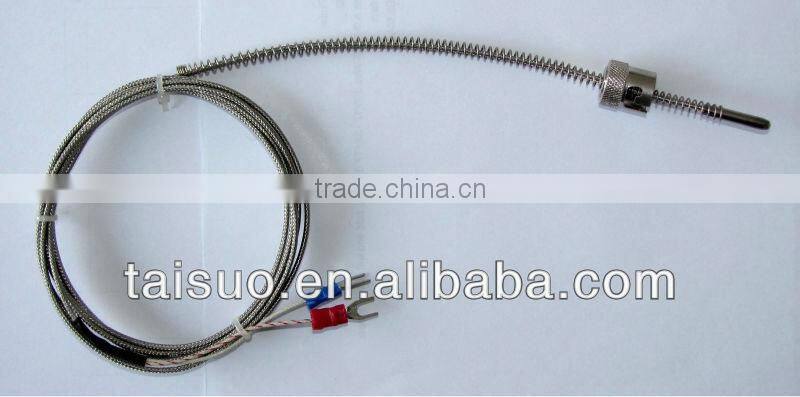

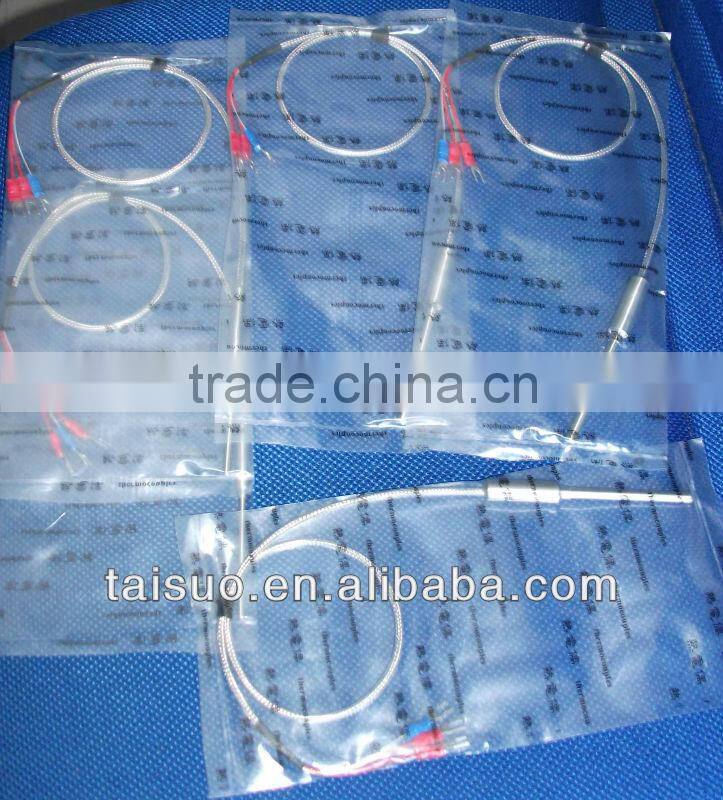

Thermocouple temperature sensor
Industrial thermocouple types: J, K, T, E, N, R, S, B
PT100
Mineral Oxide Thermocouples for a wide range of industrial applications
Temperature limits:
-40 ... +350°C for type T
-40 ... 750°C for type J
-40 ... 900°C for type E
-40 ... 1200°C for type K (see table for sheath diameters)
Tolerance ( IEC1515, IEC584/ASTM E230):
Mineral insulated (MgO) thermocouple element and continuous metal sheath
Protection tuber:SS321,SS304,SS316,SS310,INCONEL600
Dia.:3mm~20mm
Thermocouple Extension & Compensating Cables: Fiber glass covered, PVC / PVC. Asbestos / Asbestosis, Teflon/Teflon, Insulated, Teflon/Fg/SS Braided single pair, multi pair, Type K, J, T, R, and PT-100 RTD Cables 2 core, 3 core, 4 core , 6 core, Also Teflon /silicon rubber Teflon/shielded/Teflon etc quality.
Thermocouple Assemblies: Straight, L Type , Rotating type, Inmelt Bolt type, Pencil type, Washer, Holder with Spring. Rotating Type, Adjustable Types etc. Made out of SS tube supplied with Spring & Brass bayonets Single Slot & Double Slot , 10mm id, 12mm id, 14mm id, etc
Thermocouple Parts: ADAPTORS 1/8 BSP, 1/4 BSP, 1/2 BSP, 3/8 BSP,etc Single Pin, Double pin Bayonets.
Send Inquiry to This Supplier
