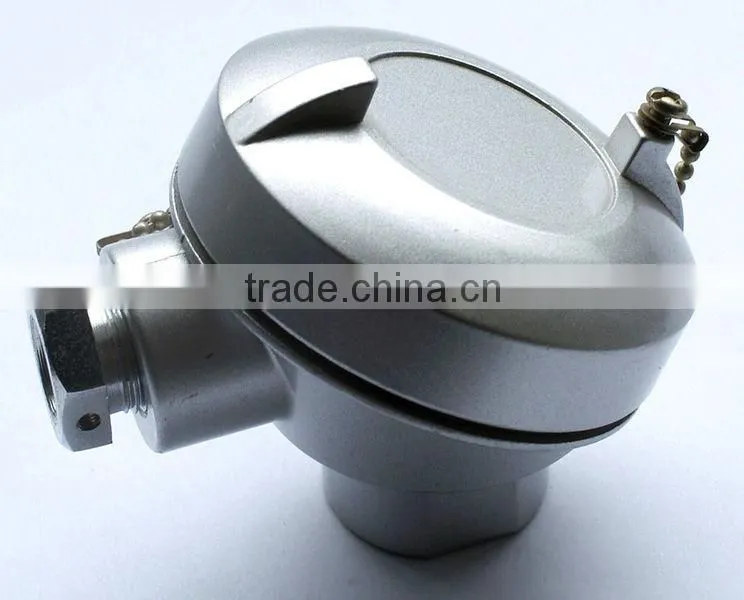

Temperature Sensor Connection Head CMI

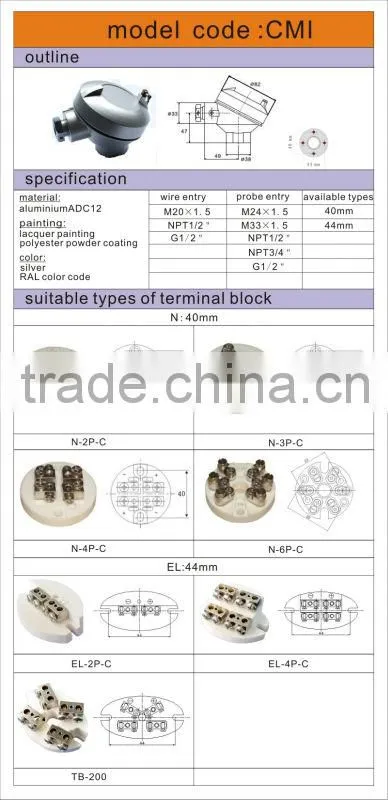

Specifications

1.Temperature sensor component
2.Aluminium ADC12
3.silver RAL colour code
4. standard Stainless steel

 CMI terminal head with waterproof  and dustproof function for the thermocouple and RTD assembly used to protect ceramic terminal block or transmitter.

1)Cover diameter 82mm

2)Ceramic terminal blocks: mounting holes distance :40± 0.1mm, 44± 0.1mm

3)Thread input: M20×1.5,  G1/2,  NPT1/2

4)Thread output: M24×1.5, M33 × 1, G1/2, G3/4, NPT1/2, NPT3/4

5)Product N.W.:190g

6)Packing condition:Plastic holder+internal carton(L460×W220×H90mm)

                                 +external carton(L470×W460×H300mm), 60pcs/ex-ctn.
