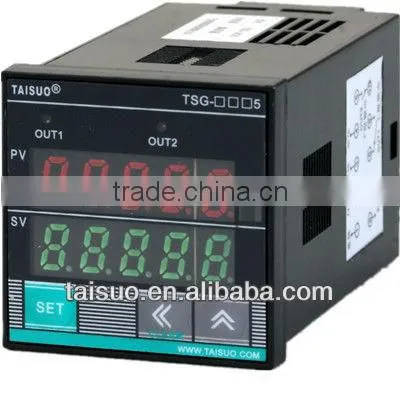

TS-0005 is an intelligent digital counter with double rows 5 digits PV and SV display.Output delay time range: 1S-99999S
Counter TS-0005 series specifications:
1) Power supply: 100-240VAC (50/60Hz)
2) Input signals: Proximity Switch, Photoelectic Switch, HALL Switch, Standard switch, ON/OFF external signal
3) Alarms: Deviation high ans deviation low alarm
alarm relay 3A/250VAC
4) Output delay time range: 1s to 99999s programmable
5) 5pcs 7 segments LED display process value and setting value respectively
6) Clear up function (reset "0")
a) Through clear up key on face panel
b) External signal to reset (except for TSG-0005)
c) Automatic clear up set in software
7) Ambient environment
0~50°C ambient temperature
Humidity <85% non-condensing
8) Dimensions
TSG-0005: 48*48mm; TSE-0005: 48*96mm
TSD-0005: 72*72mm; TSF-0005: 96*48mm
9) Length counter is avaible on request
10) Seperate length sensor from the digital counter is avaible on request. Especially applied in cable industry, cloth machines, etc.
