TS-0005 is an intelligent digital counter with double rows 5 digits PV and SV display.Output delay time range: 1S-99999S
Digital Counter
TS-0005 Counter technical data:
1) Input mode:
Proximity Switch, Photoelectrie Switch, HALL Switch,
Standard Voltage Switch, ON/OFF external signal.
2) Alarm function (2 alarms): Deviation high and deviation low alarm.
3) Alarm output relay: 3A/250V (resistance)
4) Output delay time range: 1S-99999S
5) Power supply: 100-240VAC (50/60HZ)
6) Display: 5 pcs 7 segments LED display Process value and setting value respectively
7) Clear up (reset "0") methods:
a. Press the clear up key
b. External signal
c. Automatioc clear up, delay time setting is available.
8) Also can be used as length counter.
9) Working environment: Temperature 0-50 C; Humidity < 85%
10) Dimensions (width x height):

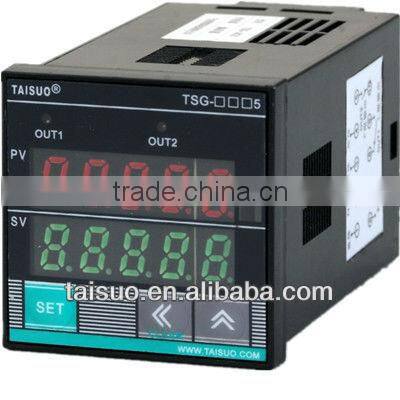

TSG-0005: 48 x 48mm
TSE-0005: 48 x 96mm

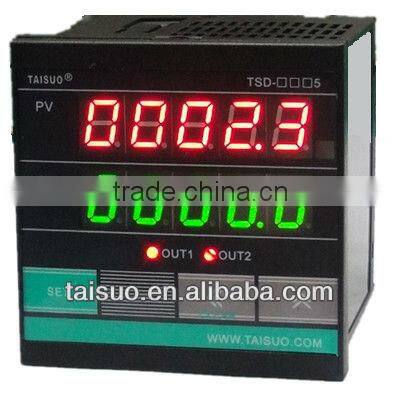

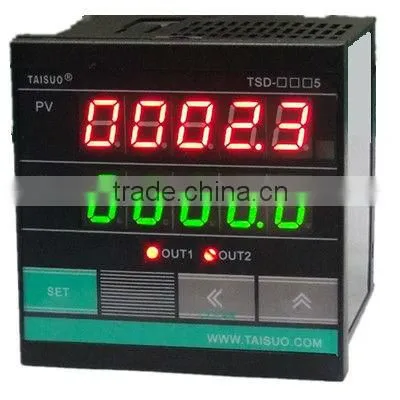

TSD-0005: 72 x 72mm

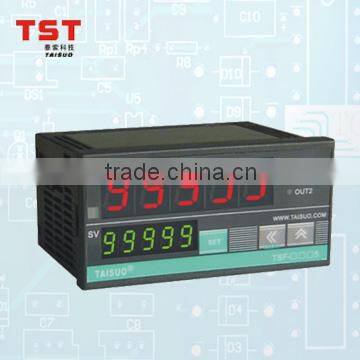

TSF-0005: 96 x 48mm
