Galvanized Iron Wire Black Annealed Construction Iron Binding Wire

Galvanized Iron Wire Black Annealed Construction Iron Binding Wire thumbnail-1
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire thumbnail-2
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire thumbnail-3
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire thumbnail-4
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire thumbnail-5
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire thumbnail-6
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire photo-1
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire photo-2
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire photo-3
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire photo-4
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire photo-5
Galvanized Iron Wire Black Annealed Construction Iron Binding Wire photo-6
US$ 330 - 560 MOQ: 3 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Zhuoxing
Model Number:
Black Wire
Contact Supplier Request Quote Chat Now
Hebei Zhuoxing Metal Wire Mesh Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Zhuoxing
Model Number Black Wire
Surface Treatment Black
Type Loop Tie Wire
Function Binding Wire
Wire Gauge 0.5-6mm
Product Description

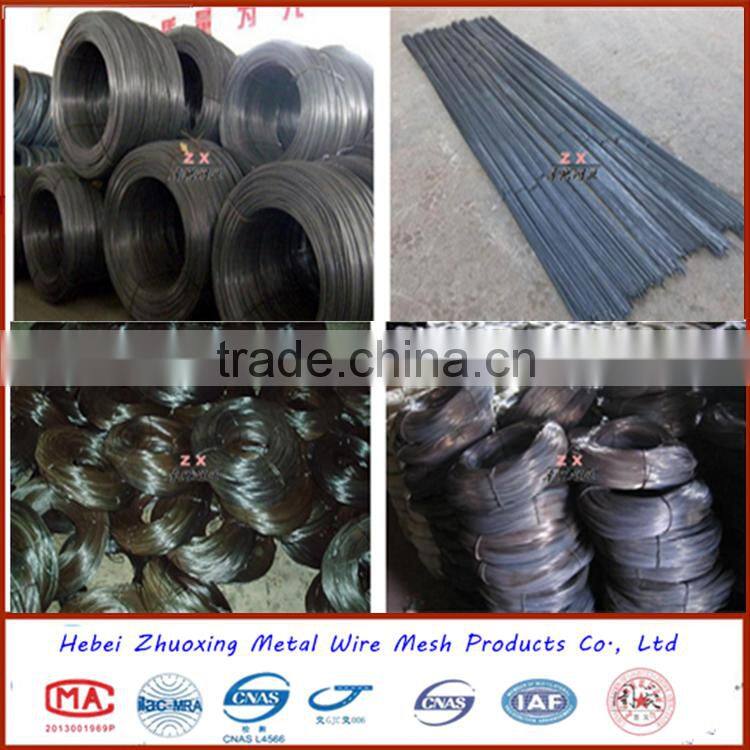

Annealed wire also named black annealed wire, they can be divided into anaerobic annealed wire and vacuum annealed wire. The surface is black. It is made of the cold drawing steel wire or iron wire, by high temperature or high temperature annealing processing technology.

Annealed wire raw materials: Cold drawing steel wire, low carbon wire ( Iron wire)

Annealed wire specification: Common wire 0.7mm (22#) ~5mm (5#). Can be further processed into over 0.5mm wire, that is SWG38# wire.

Black iron wire production process: Roll the metal billet into 6.5mm steel rod, also called wire rod. And then draw them into different diameters wire in the drawing equipment, and narrowing the drawing plate gradually. After cooling, annealing and plastic coated processing technology, can make into different specification iron wire.



Black iron wire features: Black iron wire has good resiliency and flexibility, widely used in the construction, mining, chemical, welding mesh, hangers, handicrafts, Christmas tree iron wire, product packing, daily civil and other fields. Or the reprocessing industry, etc.

galvanized iron wire Black Annealed Construction Iron Binding Wire

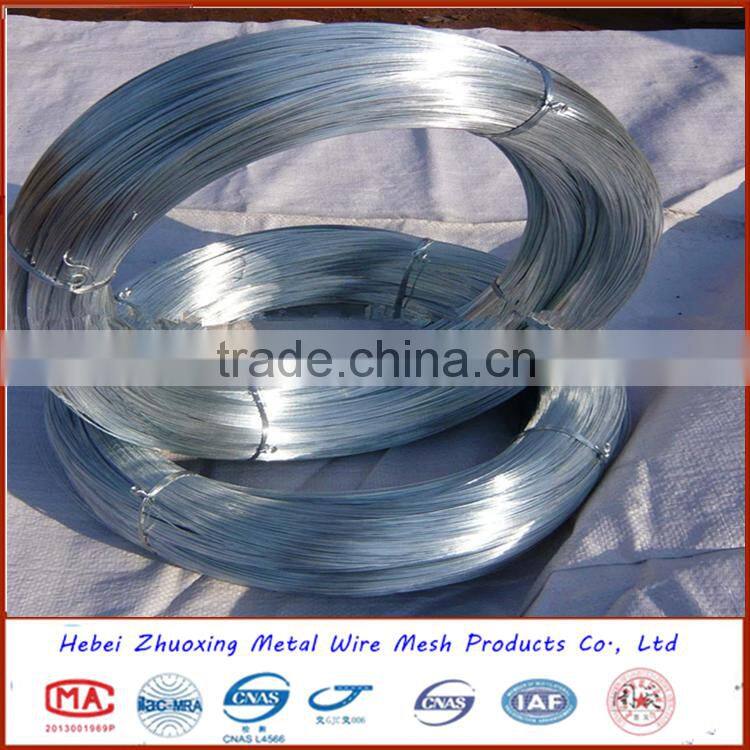

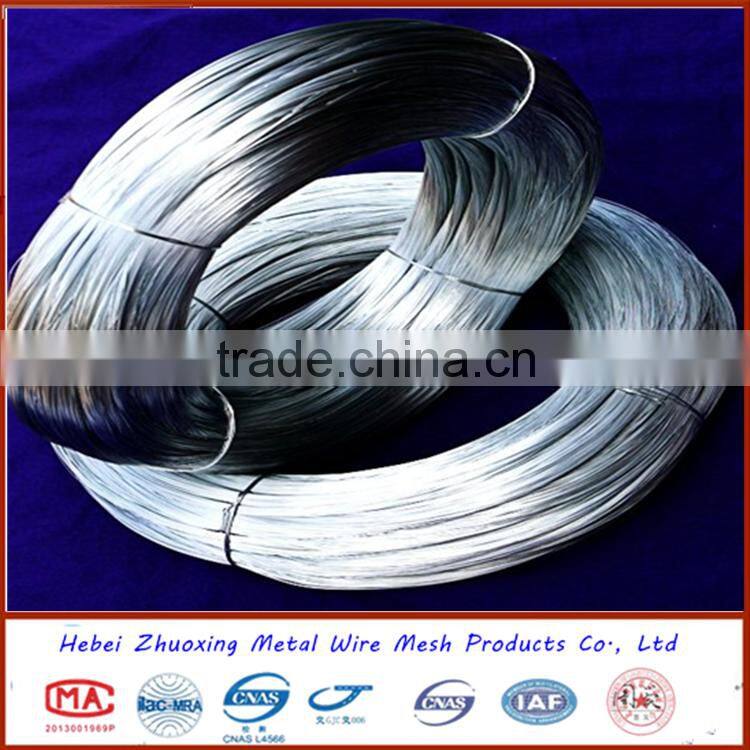

The galvanized iron Wire is divided into hot dipped galvanized binding  Wire and cold galvanized binding Wire.
Characteristics of the galvanized binding wire
The galvanized iron  binding wire has good tenacity and elasticity with a maximum of zinc quantity up to 300G/M2, characterized by thick galvanizing layer and corrosion resistance.

Application of the galvanized wire :
The products are widely used in building, handicrafts, silk screen weaving, expressway fence, product packaging and daily civil use.

Mild Steel Hot dipped galvanized wire tensile strength: 350-550mpa, elongation more and equal to 15. The zinc coating 30-300g/ sq. M.

Hot dipped galvanized wire coil weight: From 10 to 100kg, or 200 to 1000kg (Big coil wire) Packing way can be inner plastic outer woven cloth or inner plastic firm outer hessian cloth. Can be customized according to customer’s needs. Also can be wrapped into axis wire and other coil wire.galvanized iron wire Black Annealed Construction Iron Binding Wiregalvanized iron wire Black Annealed Construction Iron Binding Wiregalvanized iron wire Black Annealed Construction Iron Binding Wire



 Wire diameter: BWG6#-BWG#. Tensile strength: 30kg -45kg/ sq. M.  Packing: 1Kg-1000kg/ coil. Inner plastic firm outer woven cloth or inner plastic firm outer hessian cloth.

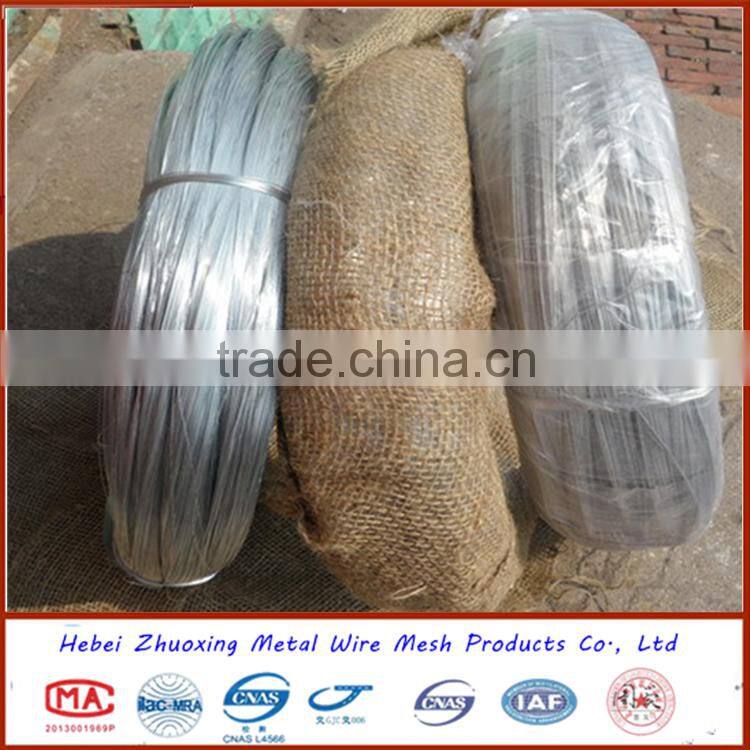

 Packing: The packing for black iron wire is same as the galvanized wire packing, there are inner plastic outer woven cloth or inner plastic firm outer hessian cloth. That is wrapping around the iron wire with the plastic firm and then wrapping it again with hessian cloth or woven belt.

 Leading indicator for iron wire



Material
Q195(Carbon content 6%-8)Q235(Carbon content 8-10)
Surface treatment
Black wire, annealing, electro galvanizing, hot dipped galvanizing, redrawing, bright wire, spraying
Zinc coating
Electro galvanized wire:1-12g/m2, electro galvani:20-300g/m2
Wire Dia.
1.3mm-4.0mm
Tensile strength
340-550mpa/mm2
Stretch rate
>15%
Big coil coil weight
20-500 kg/coil,1000kg
Small coil weight
0.5-10kg/coil

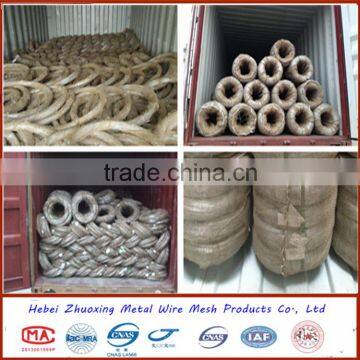

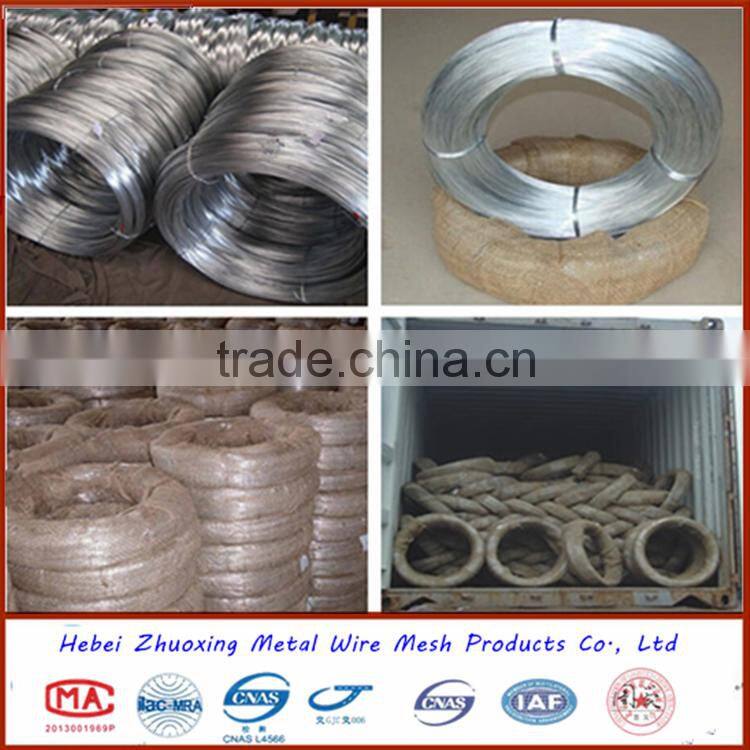

Packaging & Shipping
  • Galvanized Wire  Small Coils:
    Wire diameter: 0.5-1.8mm
    Packed in 1kg-20kg small coils. Plastic film inside, gunny bags or woven bags outside.
  • Galvanized Wire Big Coils:
    Wire diameter: 0.6-1.6mm.
    Tensile strength: 300--500MPa.
    Packing: Big coils of 150kg-800kg.
  • Galvanized Wire on Spools:
    Wire diameter: 0.265-1.60mm.
    Packing: On spools of 1kg-100kg

  •

Our Services
  • 15-18 hours on-line service
  • High quality products with competitive price
  • We could make small samples for customer before the order according to your request.
  • Packing as your request, with photo before shipment
  • We will choose high quality and low price  the shipping company.
  • Strict inspection before delivery,to ensure product safety,quick to arrive at the designated ports.
  • lIf client come to visit the company, we shall pick you up at Beijing airport, arrange hotels, and send you return to the airport on time.



If you have any questions , please feel free to contract with us !



Company Information

Welcome The New And Old Customer To Visit Our Factory For Inspection And Guidance.



Established: 2011
Area: 50,00 square meter
Staff: 30
Sales Amount: 20,000,00USD per year
Main Export Market:Australia, Europe, Japan, USA, South American, etc.
Main Products: Reinforcing mesh,Wire mesh fence, Security fence, temporary fence, barrier fence, welded wire mesh,chain link fence a various of galvanized iron wire.
