Packaging & Delivery

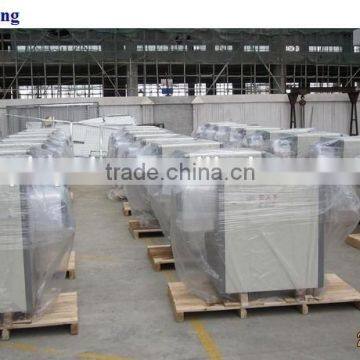

| Packaging Details: | Two wooden case, total gross weight: 480kgs, Volume:2.7cbm 1710mm L,870mm W ,1530mm H (Main machine, exclude monitor) 1030mm L, 530mm W ,780mm H (Extension Exit Roller table) |
| Delivery Detail: | 3 working days (Top level quality checking) |
PinPoint brand model
PD-5030c- Typical Steel penetration 32mm
X RAY baggage scanner | X-RAY luggage scanner
Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, PD-5030C X-ray inspection systems are ideal for screening everything from small packages to oddly shaped items and palletized loads.
Excellent system for schools, hotels, convention centers and event-based security requirements
Tunnel Size: 500(W)*300(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kg
Dose per Inspection: <2.9 μGy/h
Resolution: <0.101mm Metal Wire
Spatial resolution: Level: dia1.0mm, Vertical: dia1.3mm
Penetrate resolution: Dia 0.511mm
Penetration: 32mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Upward
Generate angle: 80 degree
Anode Voltage: 140Kv
Anode power: 0.2 to 1.0mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: 2 units, High Resolution Color, LCD Accord, 19 inch, operation desk(optional)
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

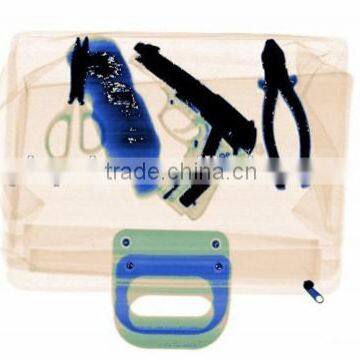

Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.3KW(working)
Noise: <55db
