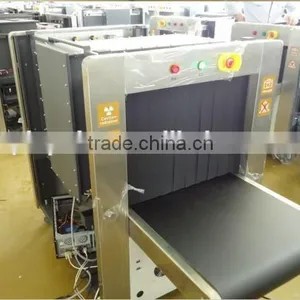

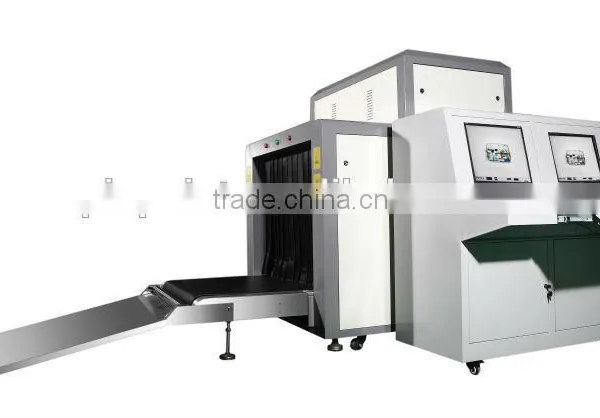

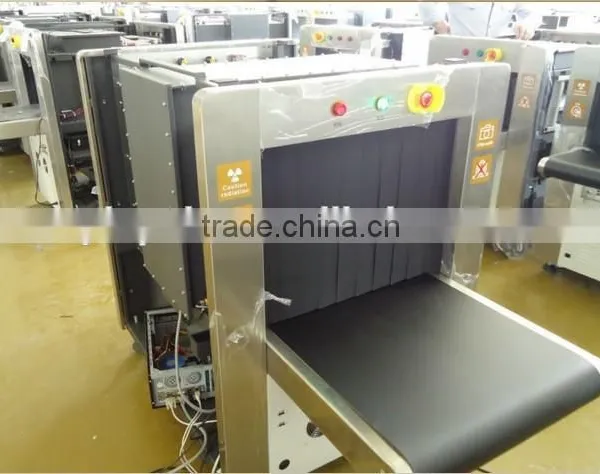

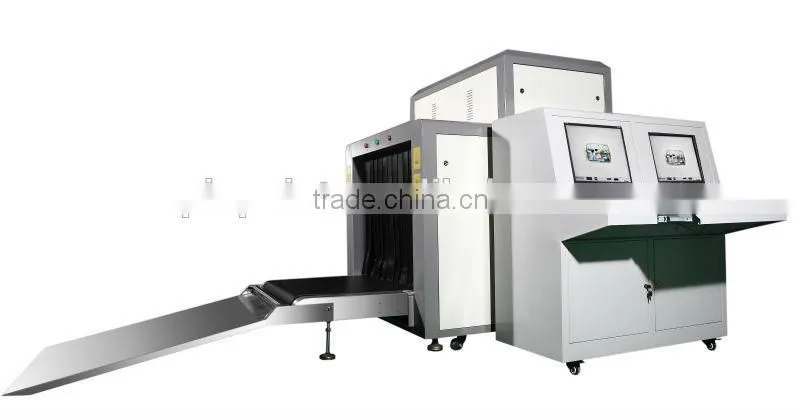

Security Equipment X Ray Inspector High Quality Scanner for Checking food package, garment package, luggage PD-100100

PD-100100- Typical Steel penetration 34mm

X RAY baggage scanner | X-RAY luggage scanner

General Specification of x-ray scanner equipment:

     Tunnel Size: 1000(W)*1000(H)mm

     Conveyor Speed: 0.22m/s

    Conveyor Max Load: 250kg

     Dose per Inspection<1.7μGy/h

      Resolution< 0.101mm Copper Wire

     Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm

    Penetrate  resolution: Dia 0.511mm

    Penetration: 34mm Steel

     Film Safety: Guarantee ISO1600 Film

   X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator of x-ray scanner equipment

   Generate direct: Downward

   Generate anger: 80 degree

   Anode Voltage: 100~160Kv

   Anode power: 0.4 to 1.2mA

   Cooling / Duty Cycle: Oil Cooling /100%

Image System of x-ray scanner equipment

   X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

   Monitor: High Resolution Color, LCD Accord, 17 inch

   Image Processing: Edge enhancement, image strengthening, image lightening,, reducing     darkening, image returning, image retrieval.

   Image Grey Level: 4096

  Image Max Resolution: 1024 * 1280pixel

   Image Processing: 24bit for processing real time

  Image storage: Storage 60000 pictures in real time

  Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

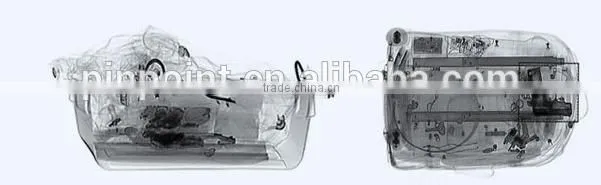

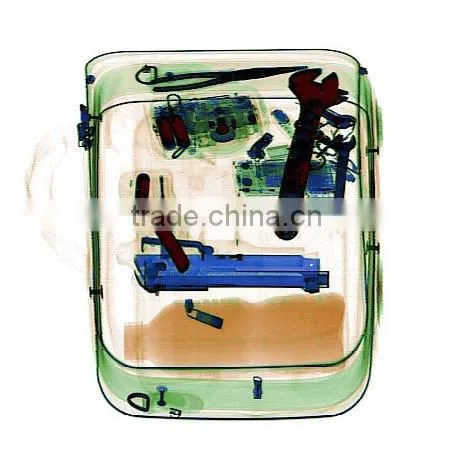

   Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

   High-energy/low energy       : switch from high energy to low energy

   Assist to detect drug and explosive powder

Installation Data of x-ray scanner equipment

   Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

  Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

  Operation Power: 220VAC(±10%)50±3Hz

  Power Consumption: 1.0 KW (max), 1.0KW(working)

  Noise: <58db

Multifunction Software of x-ray scanner equipment
