Help CenterAC Motor Capacitors
US$ 0.145 - 0.198
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dahua
Model Number:
CBB61
Payment & Shipping
Payment Methods:
Port of Shipment:
shunde port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Fan Capacitor sk CapacitorUS$ 0.5 - 1.23MOQ: 2000 Pieces -
Fan Capacitor sk Capacitor Cbb61 Fan CapacitorUS$ 0.03 - 0.088MOQ: 2000 Pieces
-
Capacitor ac Fan Capacitors(CBB61) Oil and Smoke CapacitorUS$ 0.03 - 0.088MOQ: 2000 Pieces
-
CBB61 Fan CapacitorUS$ 0.243 - 0.252MOQ: 1000 Pieces
-
Cbb61 Ceiling Fan CapacitorsUS$ 0.131 - 0.526MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
Dahua
Model Number
CBB61
Type
Polyester Film Capacitor
Application
Fan
Package Type
Surface Mount
Capacitance
0.1uF-60uF
Rated Voltage
250V-630V
Operating Temperature
-40/+70;40/85/21
Specifications

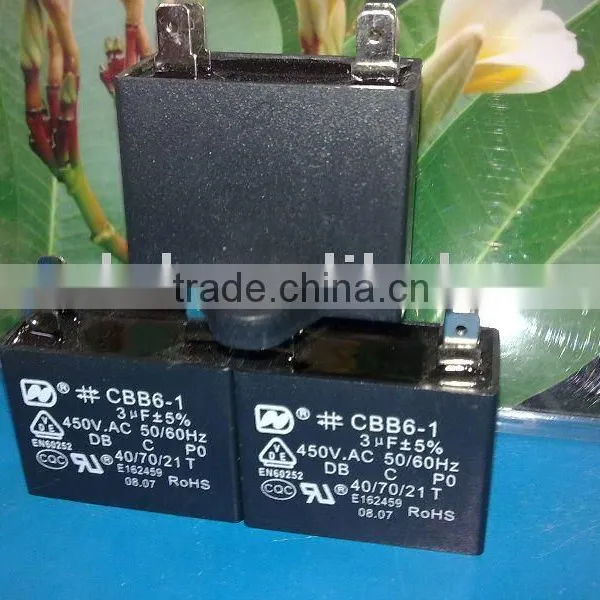

AC motor fan capacitors are applied to the compressor for air-conditioners or other motors for fans.Uses:
*the feature is small in dimension,light in weight ,low dissipation factor,good self-healing character and reliability
*the case is used in flame retardant plastic.
*the capacitors are applied to the single.
*phase motors for electric fan,oil and smoke exhauster machine which demand 50/60Hz A.C. power supply.
Features:
*Small volume,and light weight.
*Low loss,and reliability.
*Good self-healing property.
*Rectangular flame-resistant shell,flame-retardant epoxy resin,high-performance of security.
*Products with two structures of P0(not explosion-proof)and P2(security explosion-proof).
*Life-span of the products reaches A class.
Technical Index:
| Capacitor Type | CBB61 CBB6-1 | ||||
| Executing standard | GB3667,UL810,EN60252(IEC60252) | ||||
| Climatic category | 40/70/21 40/85/21 | ||||
| Rated voltage | 250VAC-630VAC | ||||
| Capacitor range | 0.1μF-60μF | ||||
| Capacitance tolerance | J(±5%);K(±10%); or other | ||||
| Withstand voltage | T-T: 1.5Un 10 s | ||||
| 2.0Un 2 s | |||||
| T-C: ≥2000VAC 2s 60s | |||||
| Dissipation factor | Tanδ≤0.0020 (50/60Hz) | ||||
| Insulation resistance | T-T ≥ 3000 MΩ.μF | ||||
| T-C ≥1000 MΩ | |||||
| Safety class | P0 P2 |
